Parameter descriptions
436 Ramp-up Time
437 Ramp-down Time
438 TraverseAmplitude
439 Proportional Step

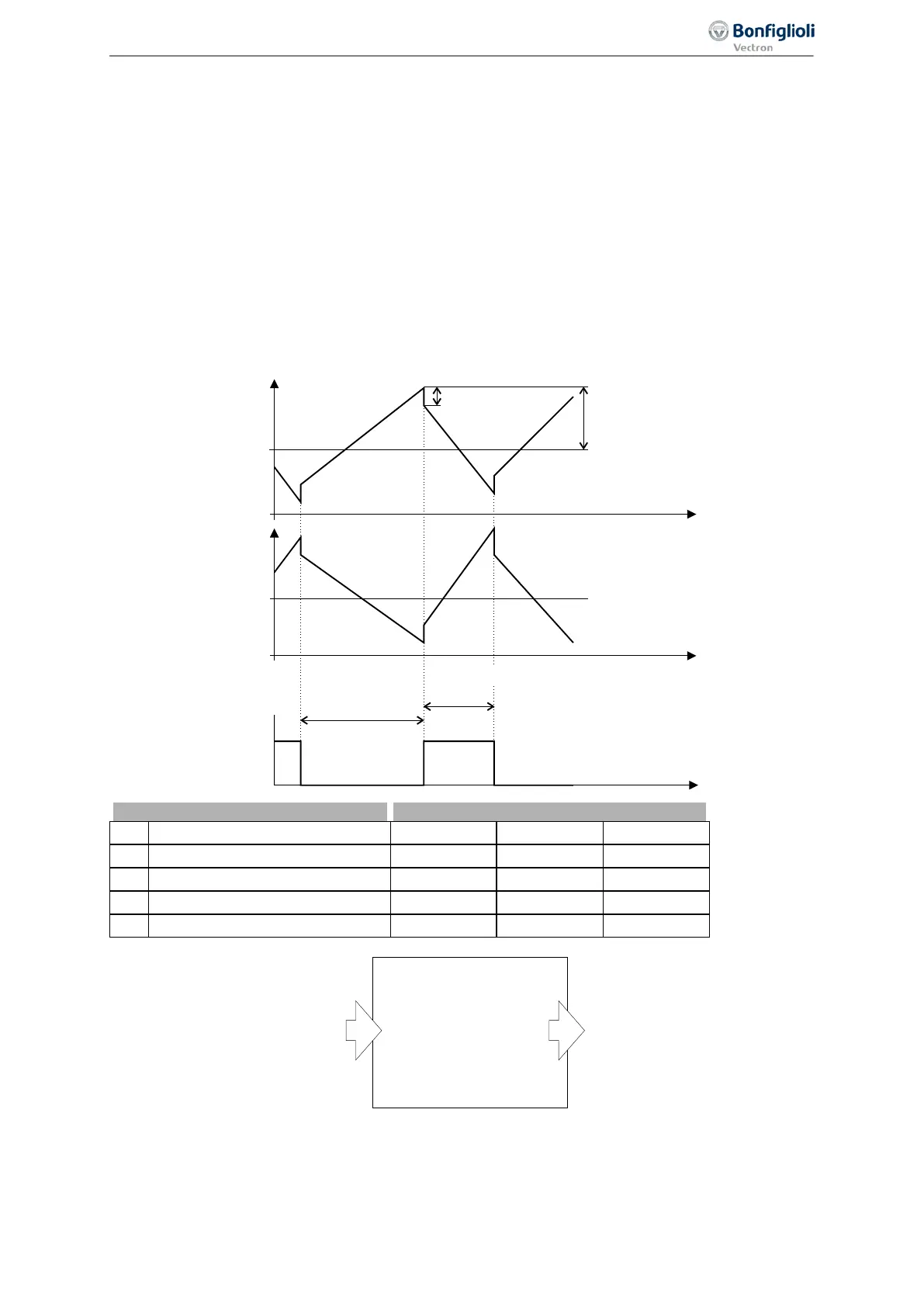

In the case of the master drive, the superimposed traverse frequency is linearly opposite to the limit
Traverse Amplitude 438 and then reverses its direction. When the direction is reversed, a proportion-
al step is effected. Via a handshake signal, the master drive informs the slave drive that the traverse
output has changed its direction. The traverse function of the slave drive has the same gradient as the
traverse function of the master drive, but an opposite sign. When the slave drive reaches the limit
Traverse Amplitude 438 before switch-over of the handshake signal, the frequency is maintained until
switch-over is effected. If the handshake signal is received before the frequency limit is reached, the
direction is reversed immediately.
The Percentage values of
Traverse Amplitude 438 and Proportional Step 439 refer to the current
frequency value set up by
Reference Frequency 48.
No. Description Min. Max. Fact. sett.
436 Ramp-up Time 0.01 s 320.00 s 5 s
437 Ramp-down Time 0.01 s 320.00 s 5 s
438 Traverse Amplitude 0.01% 50.00% 10%
439 Proportional Step 0.00% 50.00% 0.01%
Signal "14 - Traverse Function Output" is added to the reference frequency value.
During traverse operation, the configured traverse parameter values cannot be changed.
The source of the handshake signal is selected via
Handshake Traverse Function 49.
Ramp-up
Time
436
Ramp-down
Time
437
Proportional Step
439
Traverse Amplitude 438
Master drive
Reference
Frequency
48
Reference
Frequency
48
f
t
t
t
f
0
0
Slave drive
Handshake
Operation Mode
435
Ramp-up Time
436
Ramp-down Time
437
Traverse Amplitude
438
Proportional Step
439
Traverse function
Input signals Output signals
Reference Frequency
48
Handshake Traverse Function
49
14 - Traverse Function Output
15 - Traverse Function Handshake
(from Master drive)
251
Special functions 06/2013 Operating Instructions
