Parameter descriptions
48 Reference Frequency
For traverse mode, the reference value source is selected via parameter
Reference Frequency 48.
Traverse mode becomes active when
Operation Mode 435 is switched on. In traverse mode, the
values for
Ramp-up Time 436 and Ramp-down Time 437 are active.
Ramp output (factory setting)
Fixed frequencies 1 … 4
Fixed frequencies 5 … 8
Tech. controller freq. output
Internal reference frequency
Repetition frequency input
Reference analog value MFI1A
Reference analog value MFI2A
Out-F PDPconv-long (Profibus)
PLC-output frequency 1 … 4
Reference frequency channel
Attention:
WARNING
The frequency range for traverse mode is added additional to the frequency reference.
Therefore the added frequency can result in values smaller than
418 or bigger than Maximum Frequency 419.
To prevent too high frequencies, the summed frequency is limited:
Limitation of the summed Frequency
Maximum Frequency 419 <= 100 Hz
Maximum Frequency 419 +20 Hz
Maximum Frequency 419 >= 100 Hz
Maximum Frequency 419 x 1.2

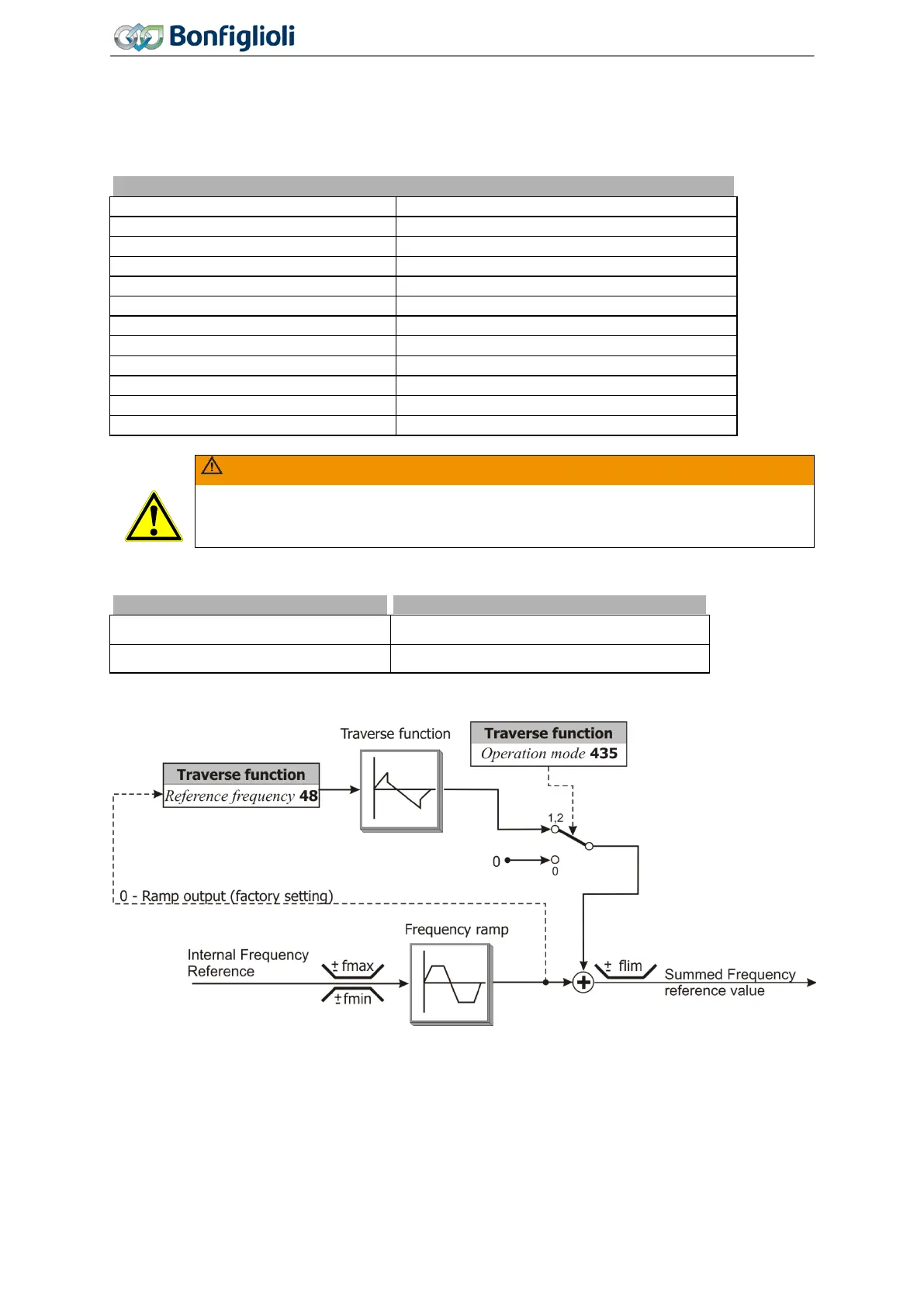

Traverse function with Setting
Reference Frequency 48 0 – Ramp output:
252
Operating Instructions
Agile
06/2013 Special functions
