164/188 Maintenance and repair
Bosch Rexroth AG, MIT: ActiveMover, 3 842 564 874/2021-04

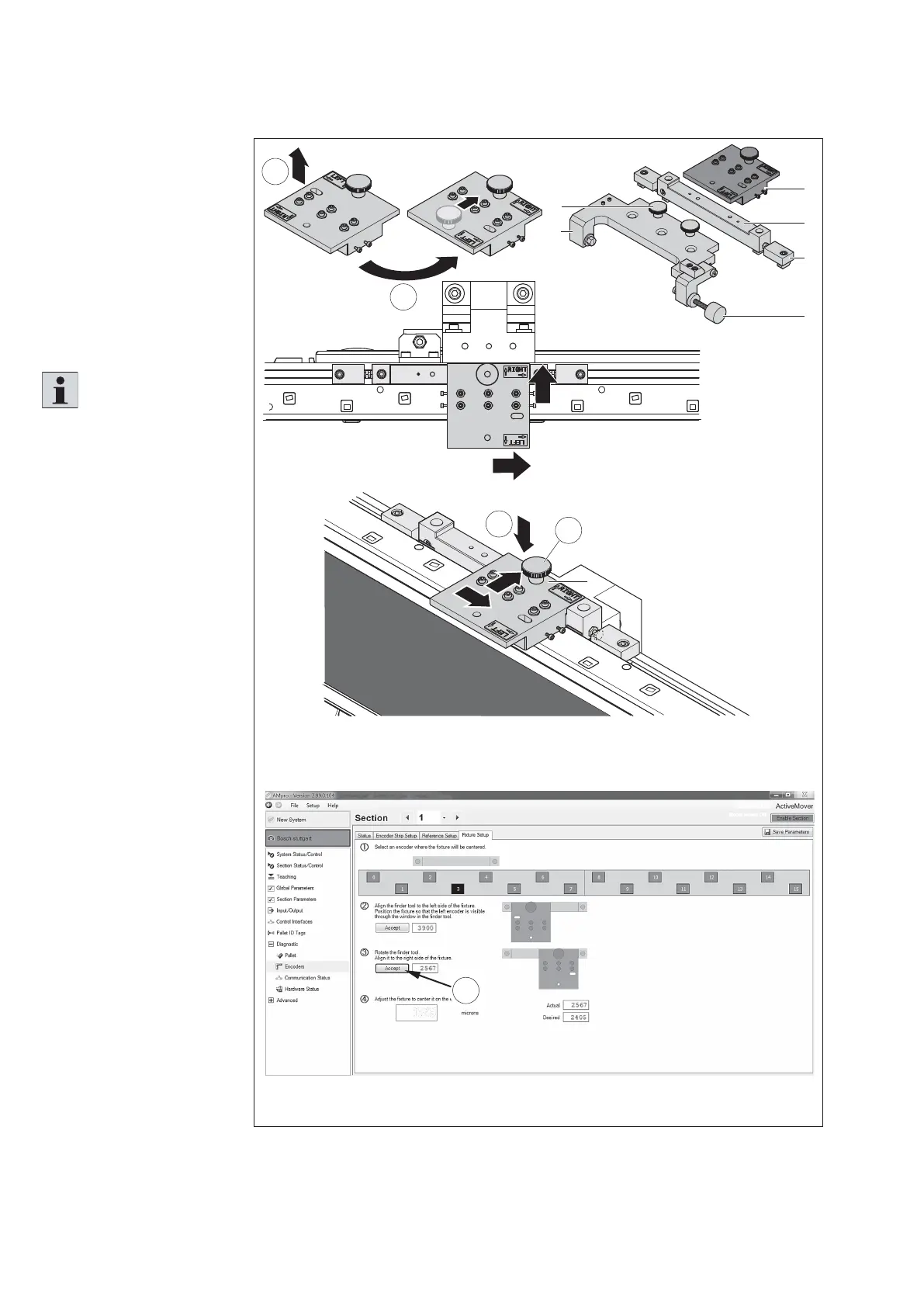

Fig. 122:
14
16
B
A
C
E
D
F
13
13
180°
A
15
557 186-111
Aligning the fi xing element with an encoder (2)
13. Remove the position
indicator and rotate it
by 180°.
14. Install the position
indicator on the right
and rear of the fi xing
element.
15. Tighten the knurled
screw.
16. Click on Accept.
Please note:
The displayed value 158
and the arrow
 mean that
the calibration set must be
moved by 158 µm to the left.
