Brother MFC-9010CN Service Manual

4-7
Confidential

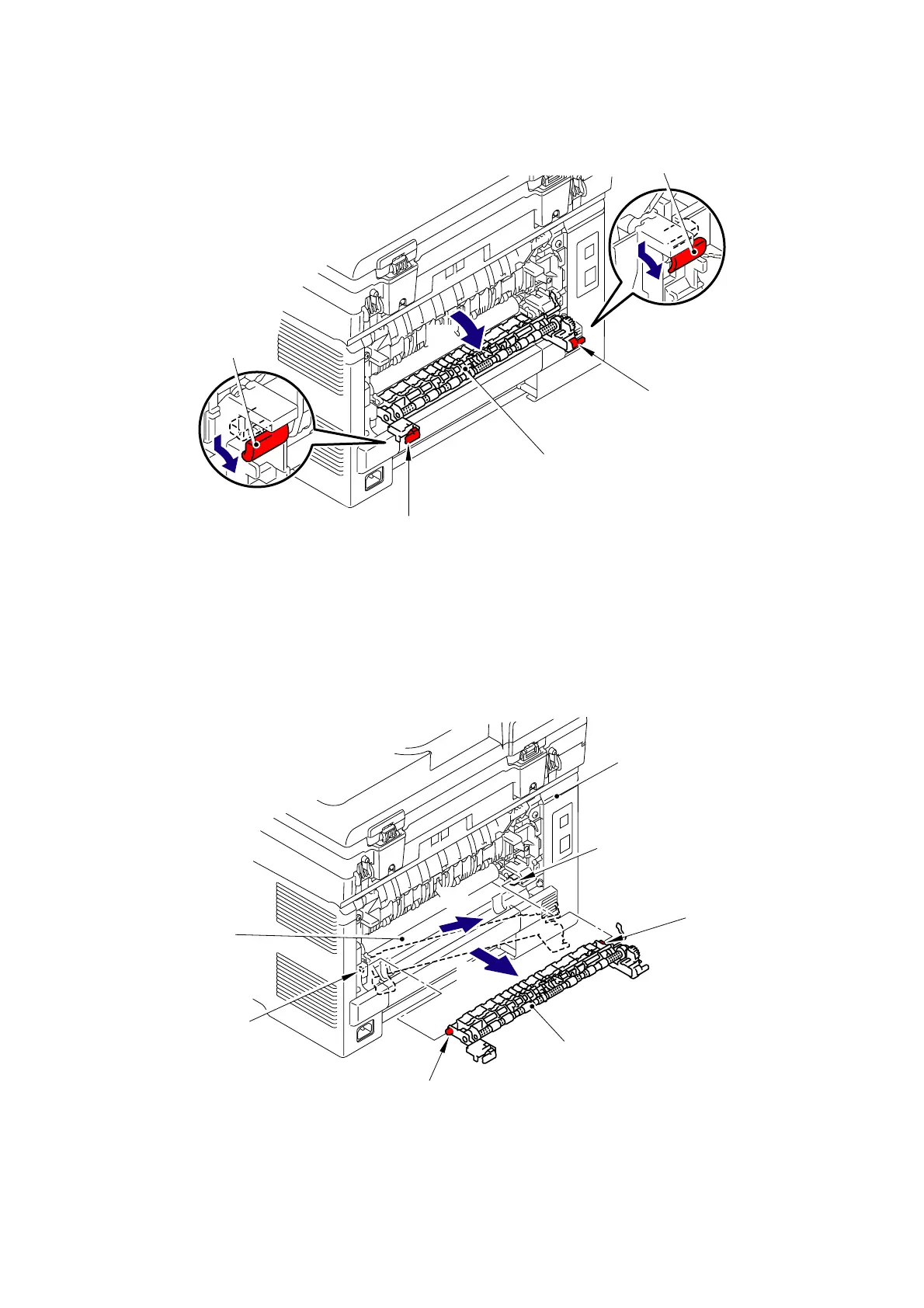

(5) Release the Fuser cover lock lever L and R, and open the Fuser cover.
Fig. 4-5
(6) Take out the Shaft at the left side of the Fuser cover from the Notch on the Bush of the
Side frame L.
(7) Take out the Shaft at the right side of the Fuser cover from the Bush of the LVPS cover,
and remove the Fuser cover.
Fig. 4-6
Fuser cover lock lever L
Fuser cover
Fuser cover lock lever R
5b
<Back side>
Fuser cover lock lever L
Fuser cover lock lever R
5a
5a
Side frame L
Bush
Shaft at the left side
LVPS cover
Notch on the bush
Fuser cover
Shaft at the right side
7a
7b
<Back side>
