Brother MFC-9010CN Service Manual

4-12
Confidential

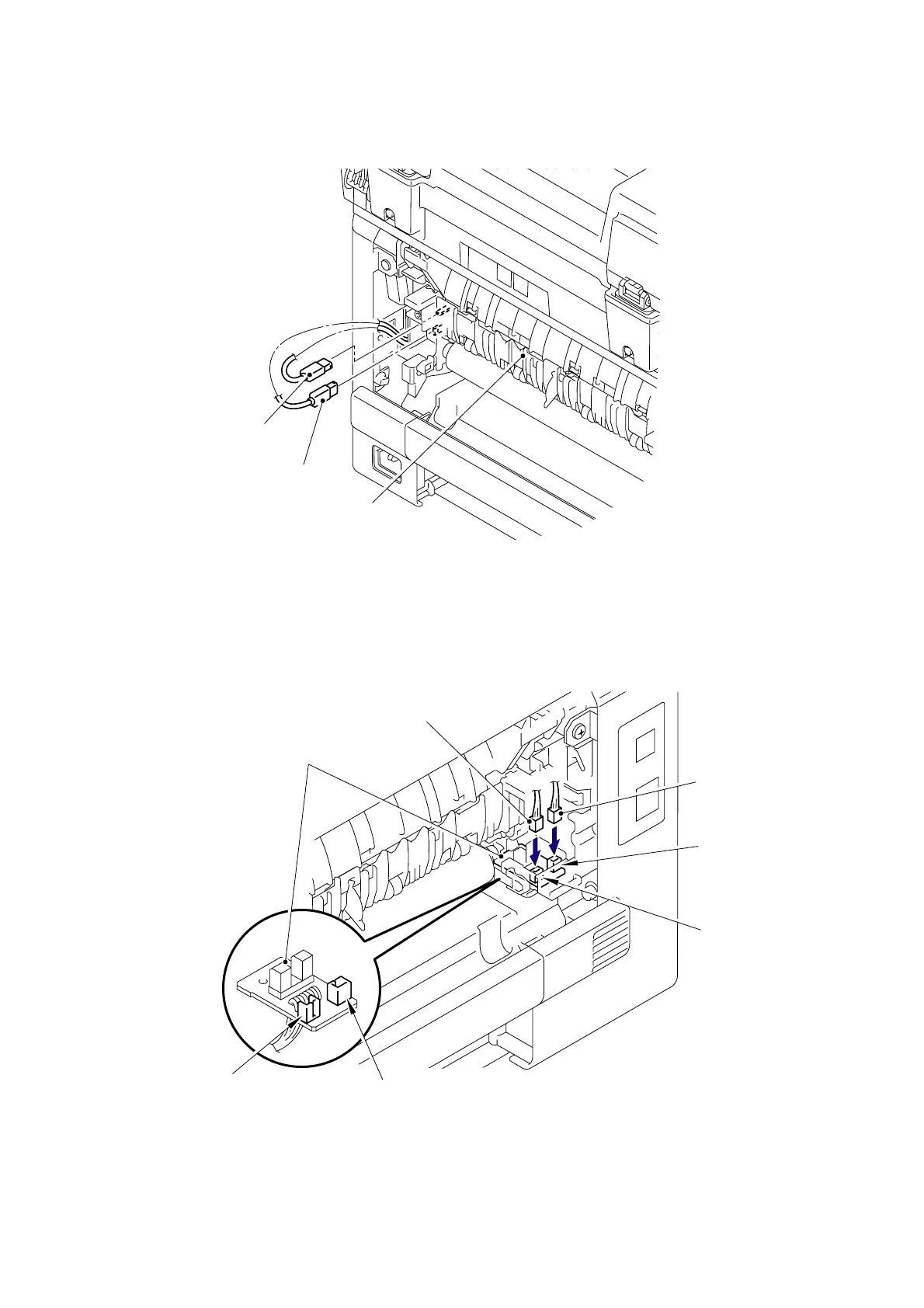

(2) Connect the two Electrode terminals into the Fuser unit.
Fig. 4-15
(3) Connect the two connectors (CN1, CN3) into the Eject front sensor PCB ASSY.
Fig. 4-16
Electrode terminal (large)
Electrode terminal (small)
Fuser unit
<Back side>
Connector
CN1
Eject front sensor PCB ASSY
CN1
CN3
Connector
CN3
<Back side>

Brother MFC-9010CN Specifications

General

Functions	Print, Copy, Scan, Fax
Max. Color Print Speed	25 ppm
Scan Resolution	1200 x 2400 dpi
Fax Transmission Speed	33.6 kbps
Standard Paper Capacity	250 sheets
PC Connectivity	USB 2.0, Ethernet
Display	LCD
Print Technology	Laser
Media Size	A4, Letter, Legal
Media Type	Plain paper, Envelopes, Transparencies
