Brother MFC-9010CN Service Manual

4-19
Confidential

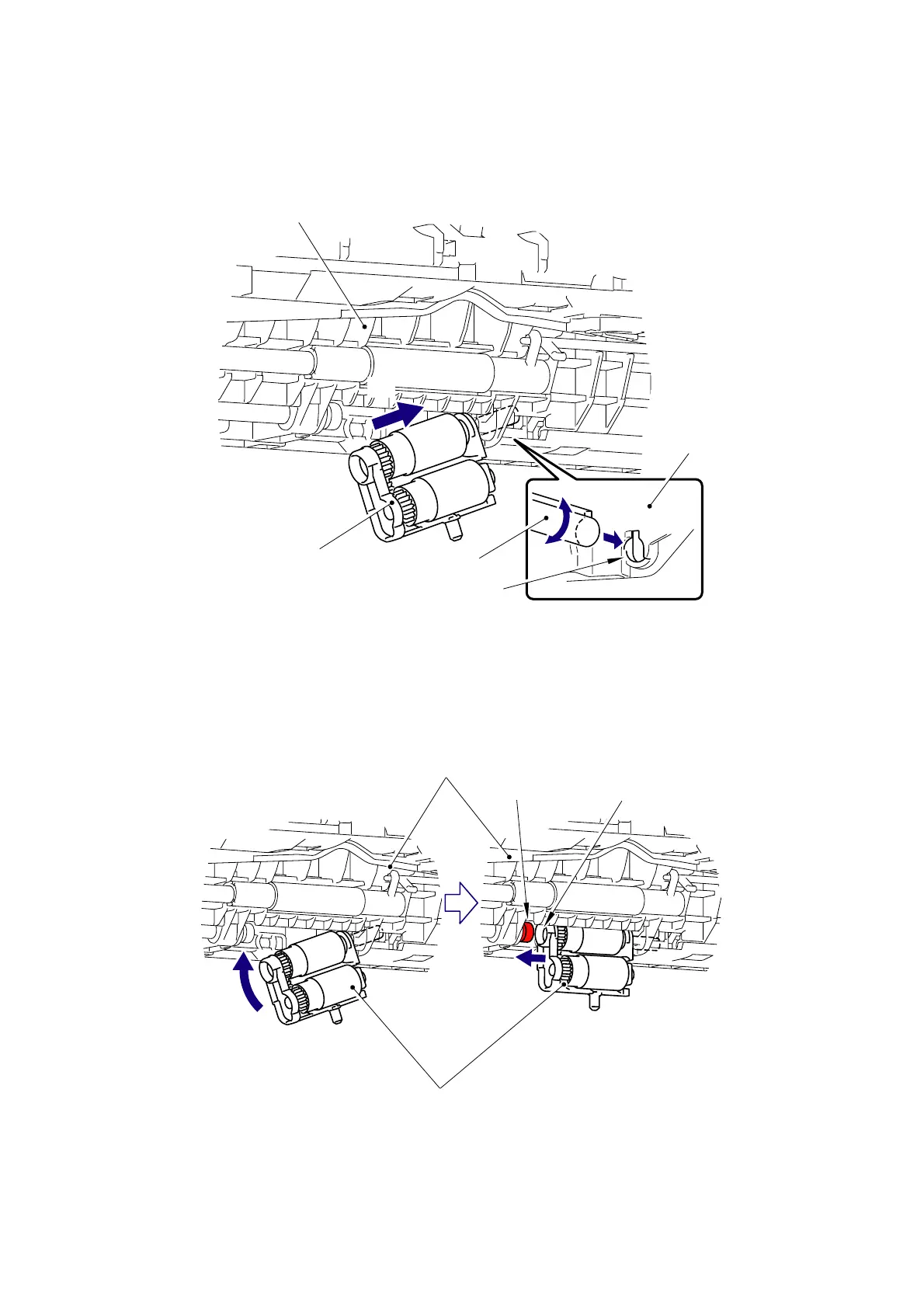

<Installing procedure>
(1) Align the Shaft of the Roller holder ASSY to the Hole of the Paper feed unit and insert it
into the Hole.
Fig. 4-29
(2) Slide the Roller holder ASSY in the direction of the arrow 2a and 2b in this order, and fit
the “B” of the Roller holder ASSY into the “A” of the Paper feed unit.
Fig. 4-30
Roller holder ASSY
Paper feed unit
Paper feed unit
Hole
Shaft
1a
1b
1a
Paper feed unit
“A”
Roller holder ASSY
2a
2b
“B”
