Brother MFC-9010CN Service Manual

4-20
Confidential

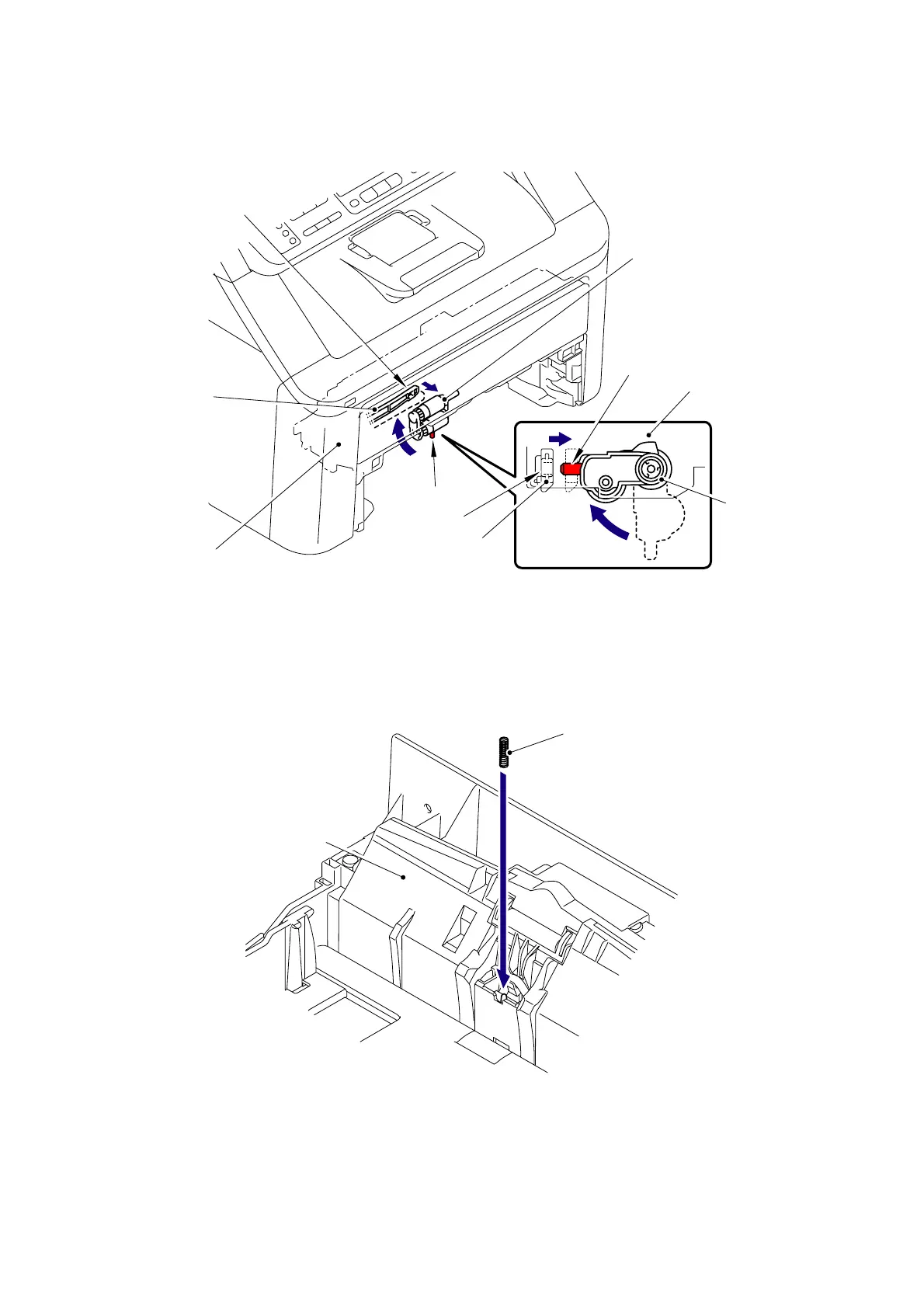

(3) Turn the Roller holder ASSY in the direction of the arrow 3a and insert the “D” of the
Roller holder ASSY into the “C” of the Lift arm.
Fig. 4-31
(4) Assemble the Pad spring onto the Paper tray.
Fig. 4-32
Lift arm
Lift arm
“C”
Roller holder
“D”
Paper feed unit
“D”
Roller holder ASSY
Paper feed unit
“C”
3a
3b
<Front>
ASSY
3a
3b
Paper tray
Pad spring
