5-144
Confidential

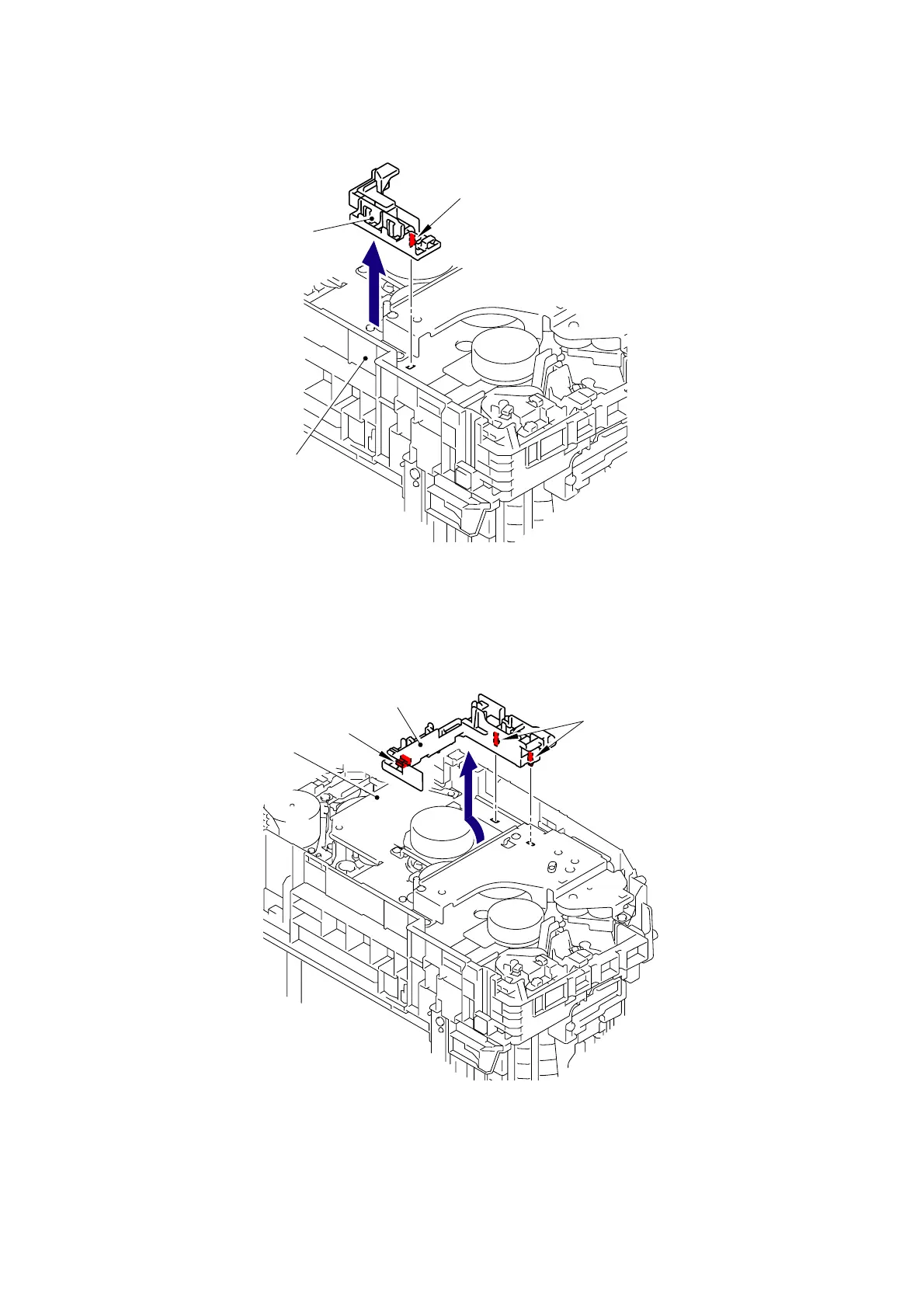

(3) Release the Hook to remove the PF line holder from the Side frame L.
Fig. 5-169
(4) Release the two Hooks A on the upper side to remove the Line holder M from the Drum
develop drive unit.
Fig. 5-170
Hook
Side frame L
PF line holder
Hook A
Drum develop drive unit
Line holder M
Hook
