5-145
Confidential

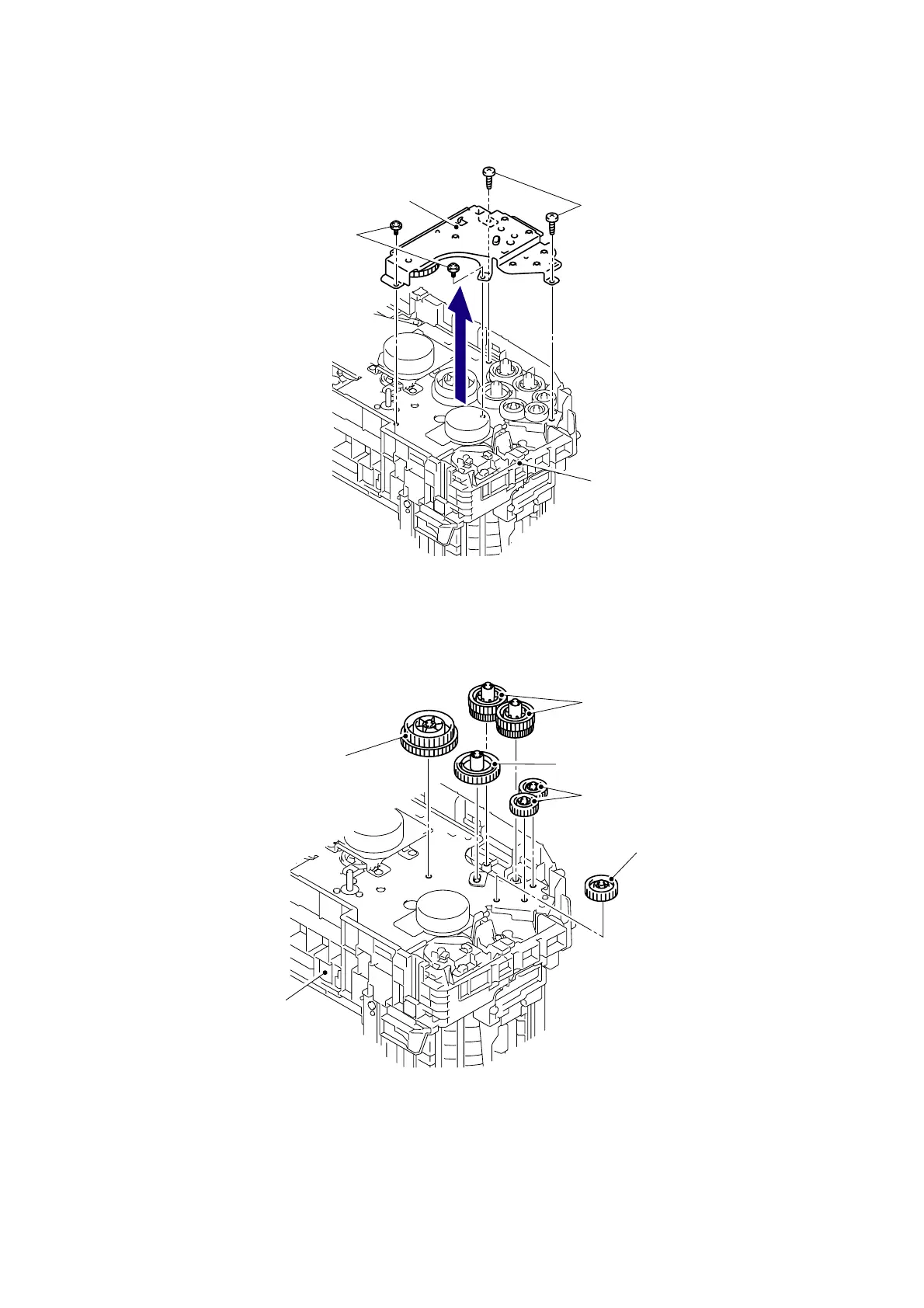

(5) Remove the two Taptite cup S M3x6 SR screws and two Taptite bind B M4x12 screws,
and then remove the Develop drive plate ASSY from the Side frame L.
Fig. 5-171
(6) Remove the one Gear 63/85, one Pendulum gear 50, one Idle gear 35, two Idle gear 30
and two Gear 42/39 from the Side frame L.
Fig. 5-172
Taptite cup S M3x6 SR
Taptite bind B M4x12
Side frame L
Develop drive plate ASSY
Side frame L
Gear 63/85
Pendulum gear 50
Idle gear 35
Idle gear 30
Gear 42/39
