5-192
Confidential

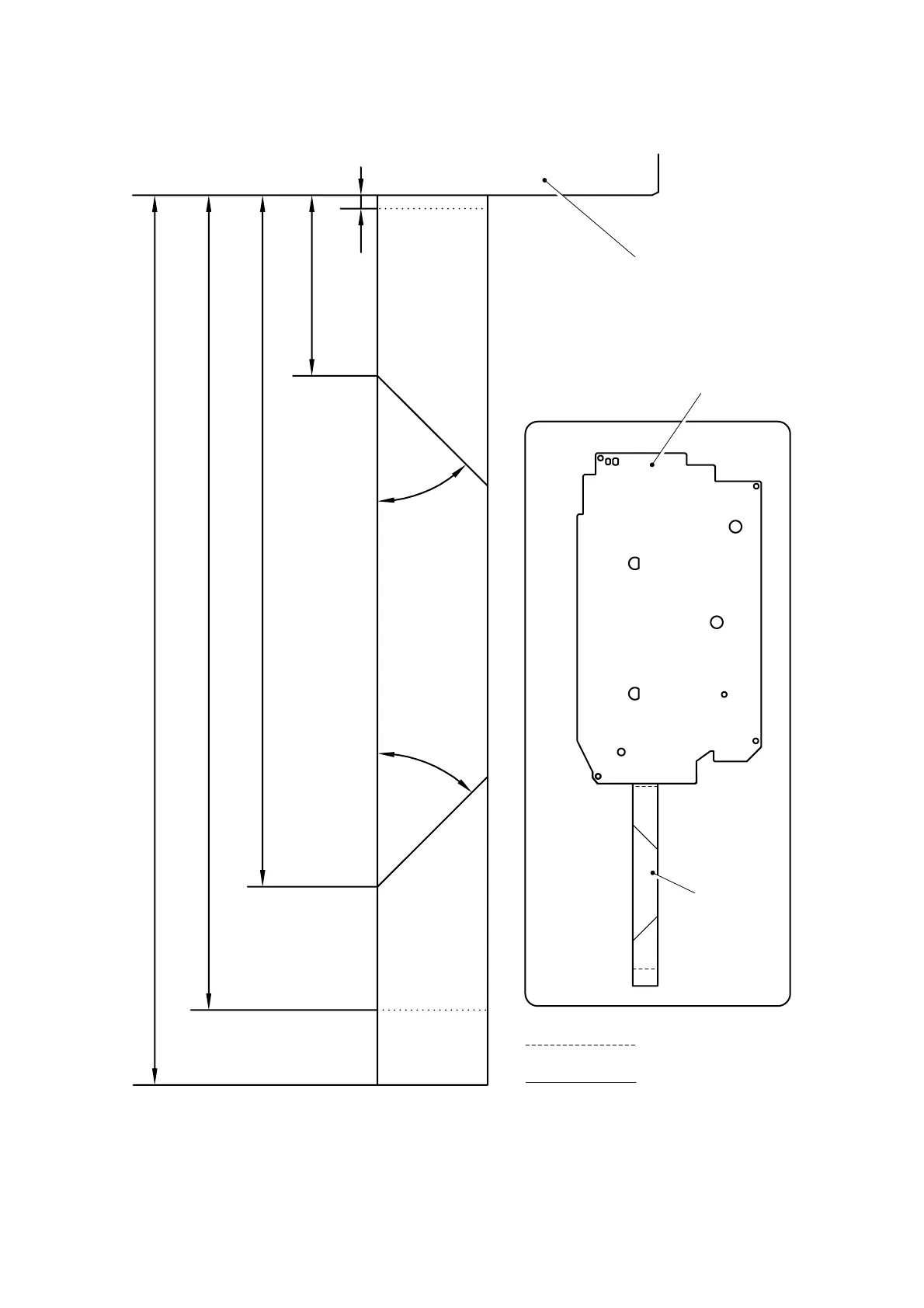

<How to Fold FFC of High-voltage power supply PCB ASSY FFC> (full-scale)
Fig. 5-251
45 °
45 °
3 mm
High-voltage power supply PCB ASSY
41 mm
202 mm
185 mm
157 mm
High-voltage power supply PCB ASSY
FFC
Fold down FFC along with the solid line
Fold up FFC along with the dotted line
