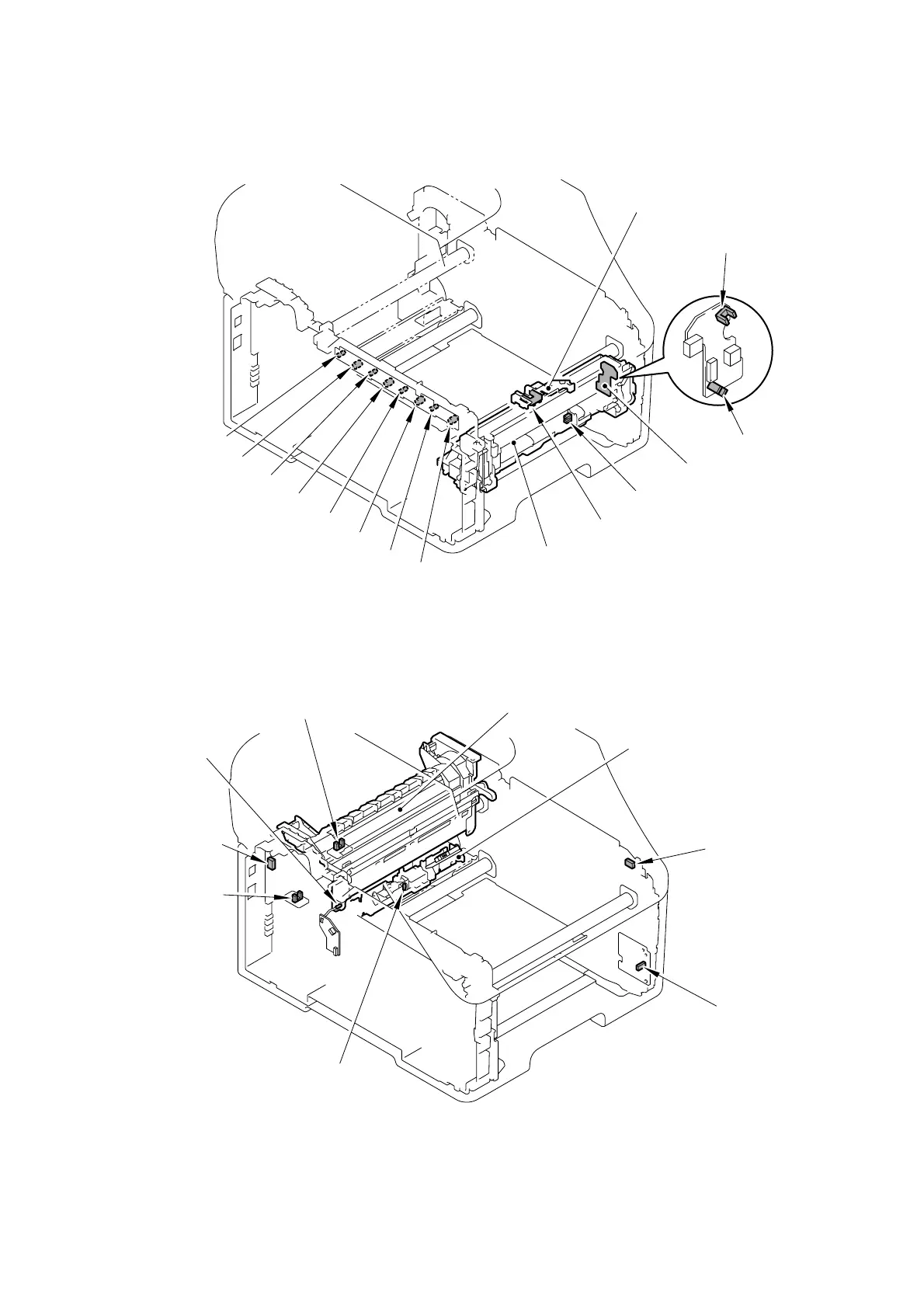

■ Location of sensors
Fig. 7-9
Fig. 7-10
Manual sensor
Registration front
Registration rear sensor
Waste toner sensor
New toner sensor K
New toner sensor Y
New toner sensor M
New toner sensor C
Toner sensor K
Toner sensor Y
Toner sensor M
Toner sensor C
Paper feed unit
Registration front/rear
sensor PCB ASSY
Waste toner
sensor
sensor holder
<Front>
Paper eject rear sensor
Back cover
Paper eject front
sensor
sensor
Top cover sensor
External temperature/
humidity sensor
Belt thermistor
Internal temperature
<Front>
Paper eject guide ASSY
sensor
Registration sensor
holder ASSY
