Cedex HiRes Analyzer Operator’s Guide
B
B
2 Choosing a Suitable Location
The Cedex HiRes Analyzer is highly sensitive and consists of top-quality electronic and optical components.
To guarantee optimal and reliable performance of the Cedex HiRes Analyzer, select the appropriate location in
accordance with the safety information provided in the Prologue.
Avoid further transportation of the Cedex HiRes Analyzer after the installation.
The transportation locks for the scanner must be attached to the inside of the casing before the Cedex HiRes
Analyzer is transported again. Contact a Roche Service representative if the Analyzer will be transported.
Vibrations or shaking must also be avoided when transporting the Analyzer over short distances and when
operating the system. Focus adjustment must be done after transportation (see “Automatic Adjustment and
Alignment Verification”).
Injury from heavy loads
The Cedex HiRes Analyzer weighs 29 kg. (63.8 lbs). No attempt should be made by the user to remove or set
up the instrument alone. You may injure your hands, fingers, or back when putting the Analyzer in place.

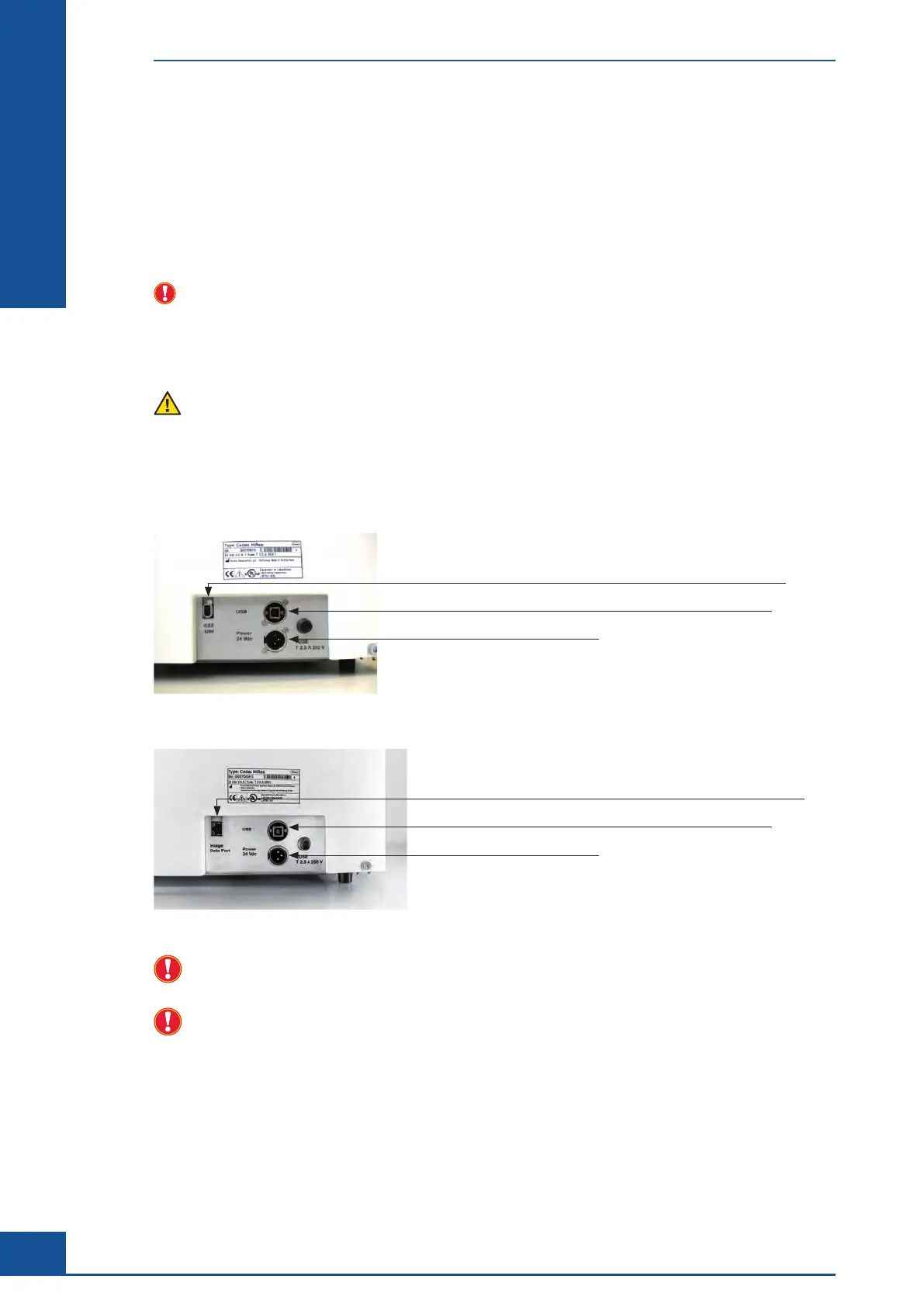

2.1 Connecting Hardware Components
Firewire socket for connection of scanner to Control Unit via a Firewire cable
USB socket for connection of pump and Multi Sampler to the Control Unit
Power input socket for power cord (24 VDC)
Figure 2: Hardware connections for systems with a Firewire socket
Image Data Port for connection of scanner to Control Unit via an Ethernet cable
USB socket for connection of pump and Multi Sampler to the Control Unit
Power input socket for power cord (24 VDC)
Figure 3: Hardware connections for systems with an Ethernet socket
The power supply should not be located in the area near or around the sample, but should be placed at all
times behind the Cedex HiRes Analyzer. Liquids must never come into contact with the power supply.
The Ethernet port is not intended for direct connection to telecommunication networks.
Choosing a Suitable Location
Connecting Hardware Components

Cedex HiRes Specifications

General

Viability Range	0 - 100%
Concentration Range	5 x 10^4 to 1 x 10^7 cells/mL
Measurement Principle	Image analysis
Cell Types	Mammalian cells
Measurement Parameters	Total cell count, viable cell count, viability
Measurement Time	Typically < 1 minute
Power Requirements	100-240 V, 50/60 Hz
Interface	USB and Ethernet
Operating Temperature	15-30°C
Operating Humidity	20-80% (non-condensing)
