7.2 Aggregate Histogram
Click on the AGGREGATE HISTOGRAM button in the Histograms dialog box to open the corresponding
histogram.
The Aggregate Histogram shows the number of cells in the cell culture found in aggregates, as well as how
many cells each aggregate is composed of. Both the actual cell number and the percentage distribution can be
displayed.

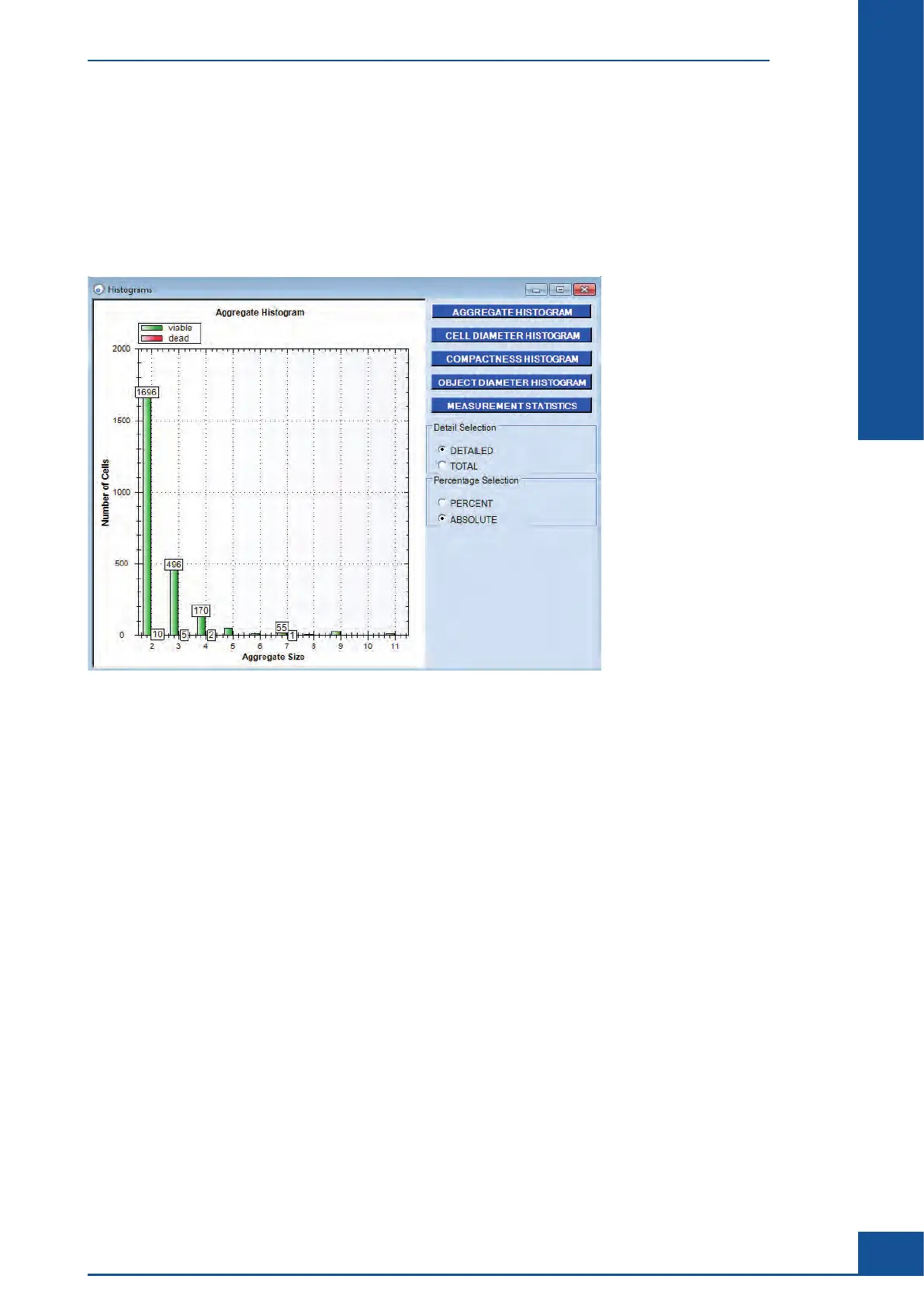

Figure 17: The Aggregate Histogram, detailed view (divided into living and dead cells), here: (absolute) number of cells
The Number of Cells identified is displayed on the y-axis and at the top of the bars. The Aggregate Size, in
terms of the number of cells per aggregate, is given on the x-axis. Figure 17 shows, for example, that 1696 living
and 10 dead cells of all identified cells were found in aggregates of two cells.
Graphical Display of the Analysis Results
Aggregate Histogram
