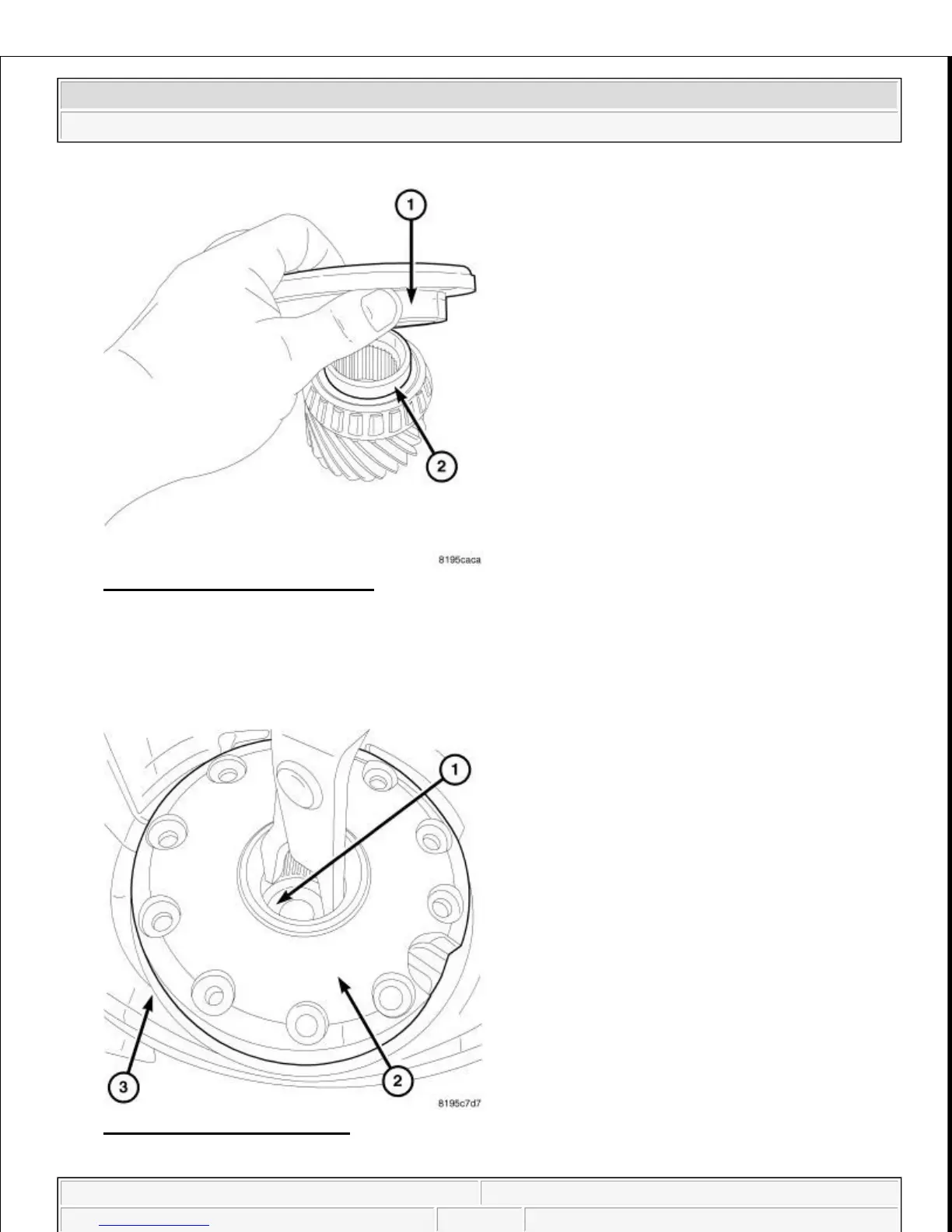

Fig. 161: Cover At Remote Pinion
Courtesy of CHRYSLER LLC
61. Install the remote pinion bearing cup in the case (small cup) using Installer 9730 and Handle C-4171.
62. Install the remote pinion bearing cup in the cover using Installer 9729 and Handle C-4171.
63. Install the remote pinion (2) into the transaxle case.
Fig. 162: Remote Pinion Cover
Courtesy of CHRYSLER LLC
