When disassembling the transaxle it is necessary to inspect the oil pump for wear and damage.
1. Remove the six reaction shaft support-to-pump body bolts (1).
Fig. 450: Reaction Shaft Support
Courtesy of CHRYSLER LLC
2. Remove reaction shaft support (3) from pump body (1).
1 - BOLT (6)
2 - PUMP BODY
3 - REACTION SHAFT SUPPORT

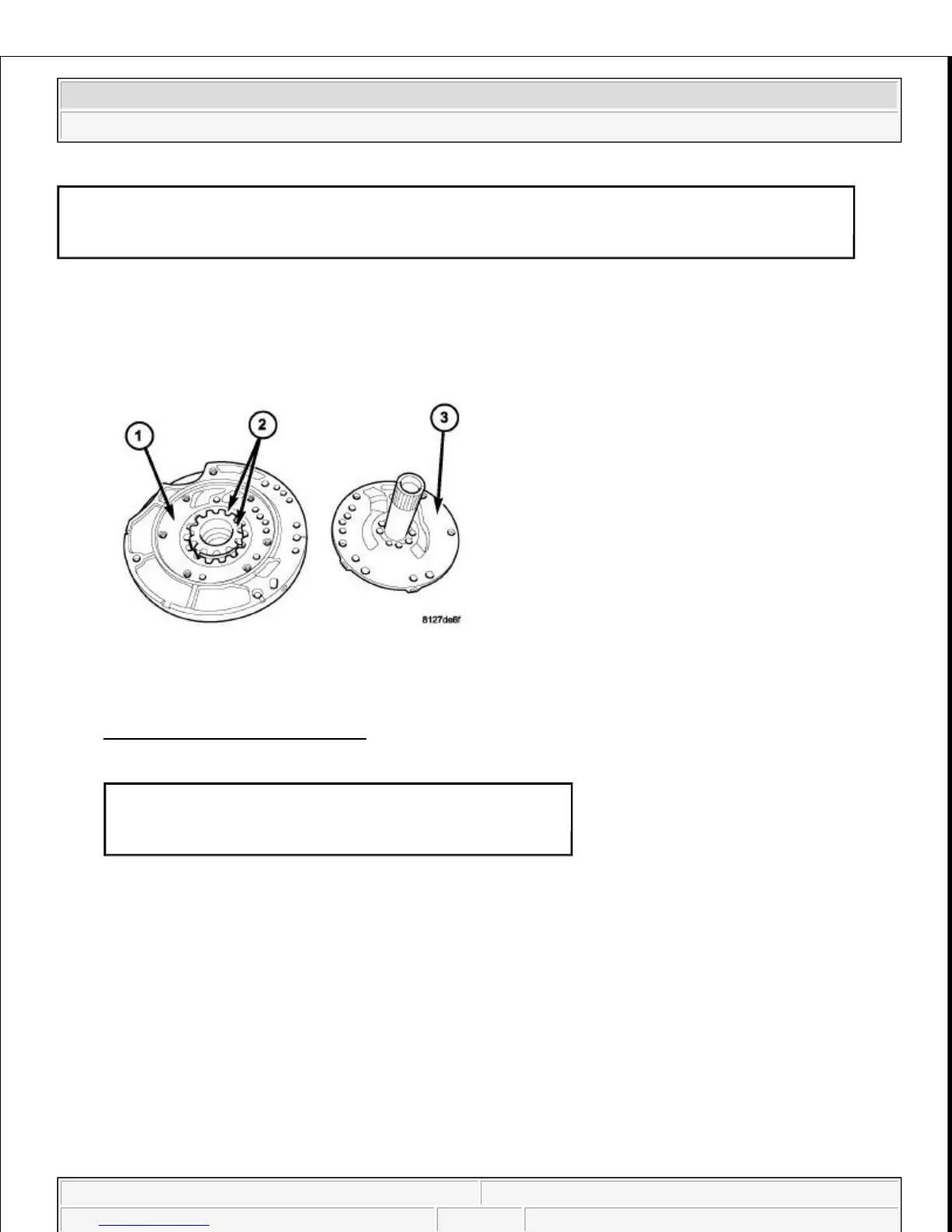

1 - PUMP BODY
2 - PUMP GEARS
3 - REACTION SHAFT SUPPORT
