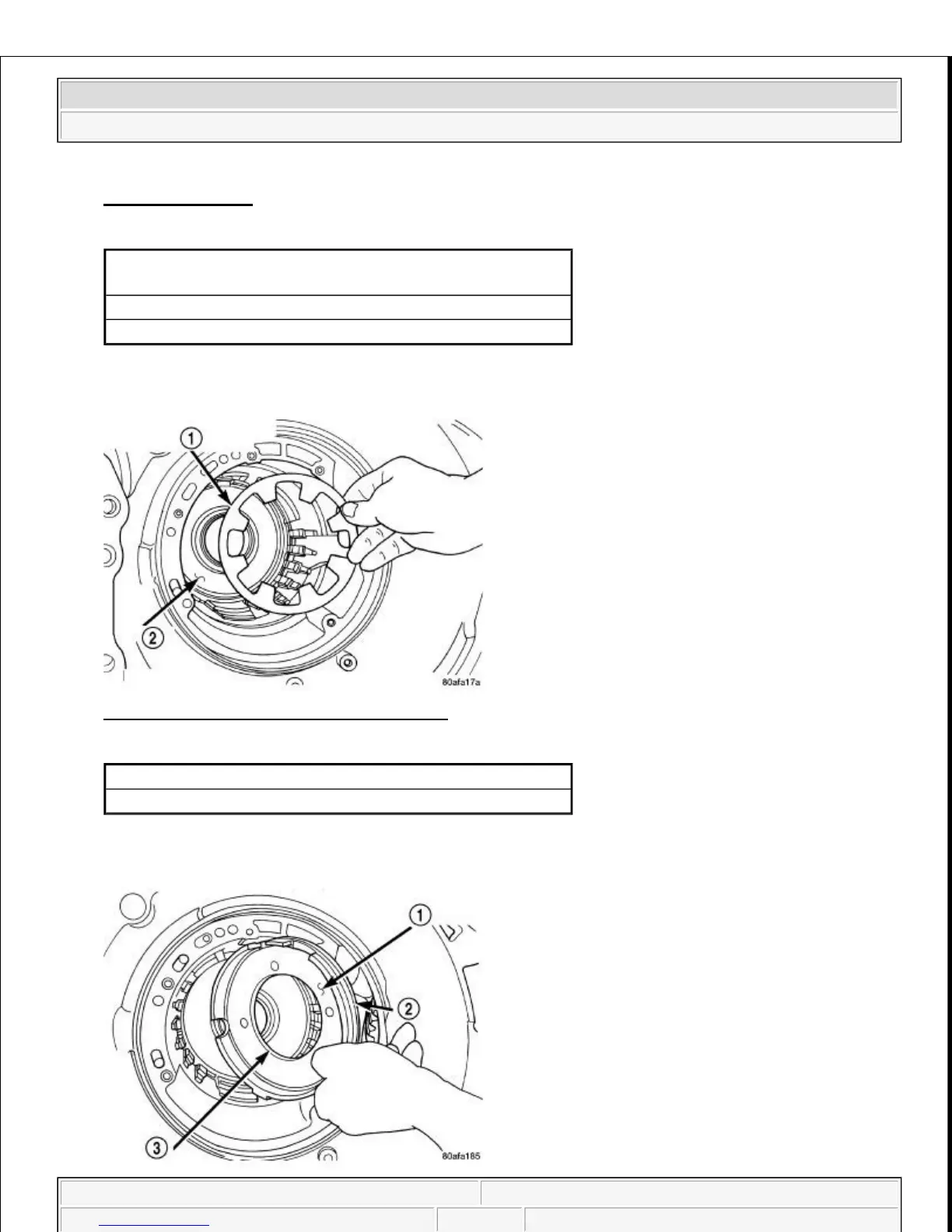

60. Remove snap ring (1) at low/reverse piston return spring.
Fig. 85: Low/Reverse Piston Return Spring
Courtesy of CHRYSLER LLC
61. Remove low/reverse spring compressor tool and low reverse piston return spring (1).
1 - SNAP RING OPENING MUST BE BETWEEN SPRING
LEVERS (AS SHOWN IN ILLUSTRATION)
2 - SNAP RING PLIERS
3 - SPRING COMPRESSOR DISC 6057
1 - LOW/REVERSE PISTON RETURN SPRING
2 - PISTON
