Chrysler 62TE - Large Pinion Bearing

14. Using Remover 8356 (1) and a 12 mm hex head bolt as a press plug remove the small pinion bearing.

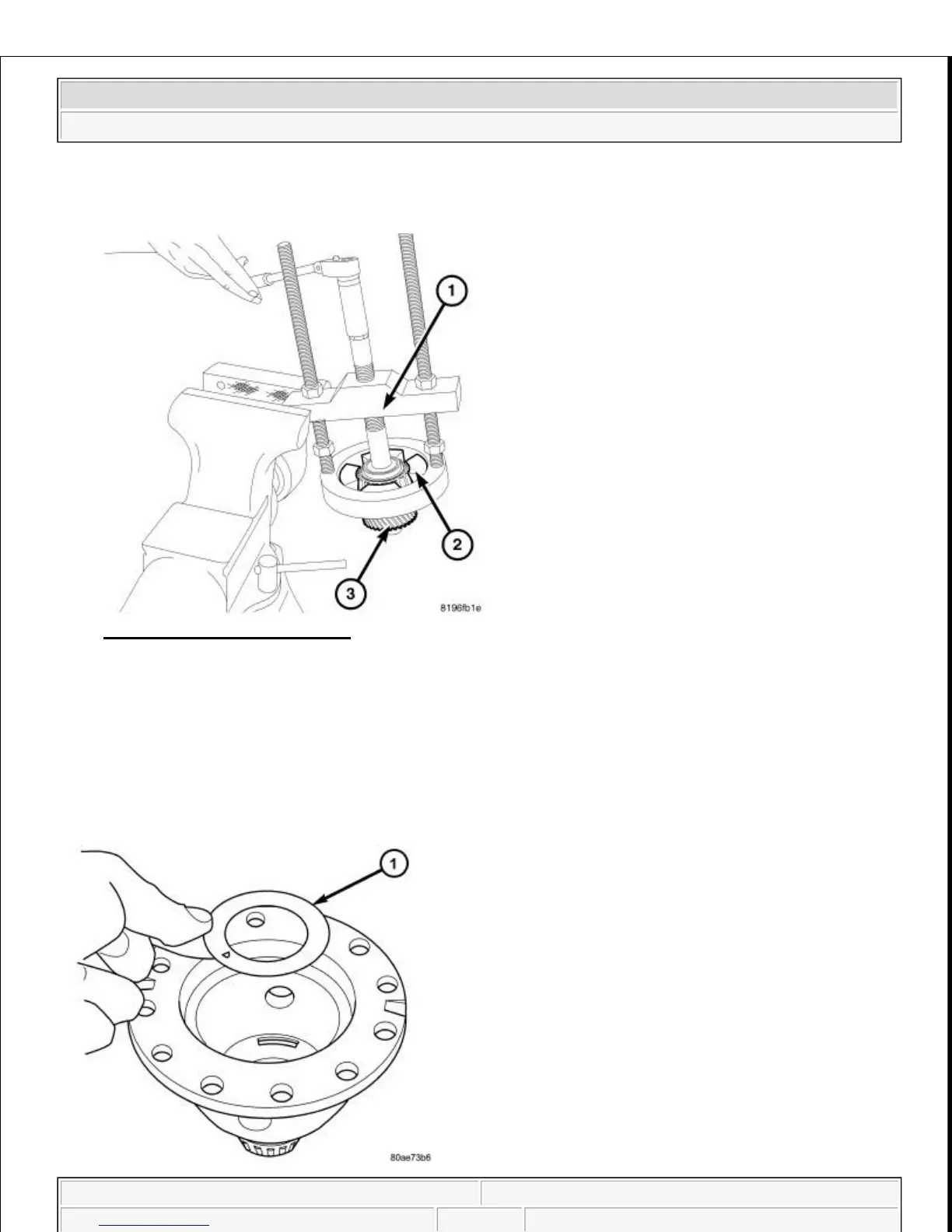

Fig. 429: Large Pinion Bearing
Courtesy of CHRYSLER LLC
15. Using puller C-293-PA (1), C-293-47 Adaptors (2) and Press Plug C4487-1 to remove the large pinion
bearing.
ASSEMBLY
ASSEMBLY
2009 Chrysler Town & Country LX
2009 AUTOMATIC TRANSMISSION 62TE - Service Information - Grand Caravan, Town & Country
