49. Refer to the illustration as necessary when performing the following steps.

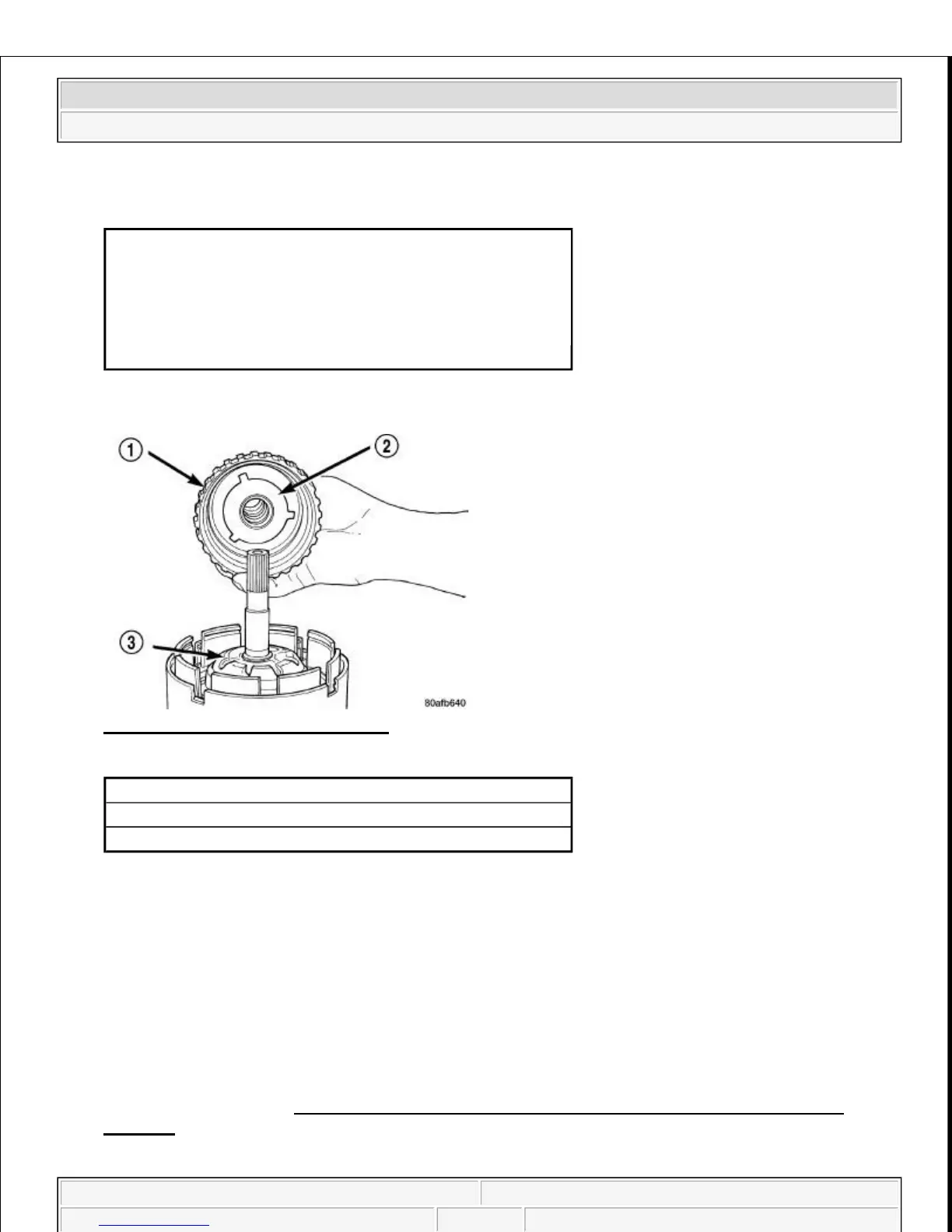

Fig. 358: Overdrive Shaft Assembly
Courtesy of CHRYSLER LLC
50. Install the overdrive shaft assembly (1).
51. Reinstall overdrive and reverse clutch as shown in illustration. Rechecking these clutch clearances is
not necessary.
ASSEMBLY, TRANSMISSION SOLENOID AND PRESSURE SWITCH
REMOVAL
REMOVAL
1. Remove valve body. See Transmission and Transfer Case/Automatic - 62TE/VALVE BODY -
Removal
.
1 - OVERDRIVE SHAFT
2 - #3 THRUST PLATE (3 TABS)
3 - #3 THRUST WASHER (5 TABS)
4 - UNDERDRIVE SHAFT
5 - #2 NEEDLE BEARING (3 TABS)
6 - INPUT CLUTCH ASSEMBLY
1 - OVERDRIVE SHAFT ASSEMBLY
2 - #3 THRUST PLATE
3 - #3 THRUST WASHER
