Chrysler 62TE - Clip at Transfer Shaft; Split Bearing

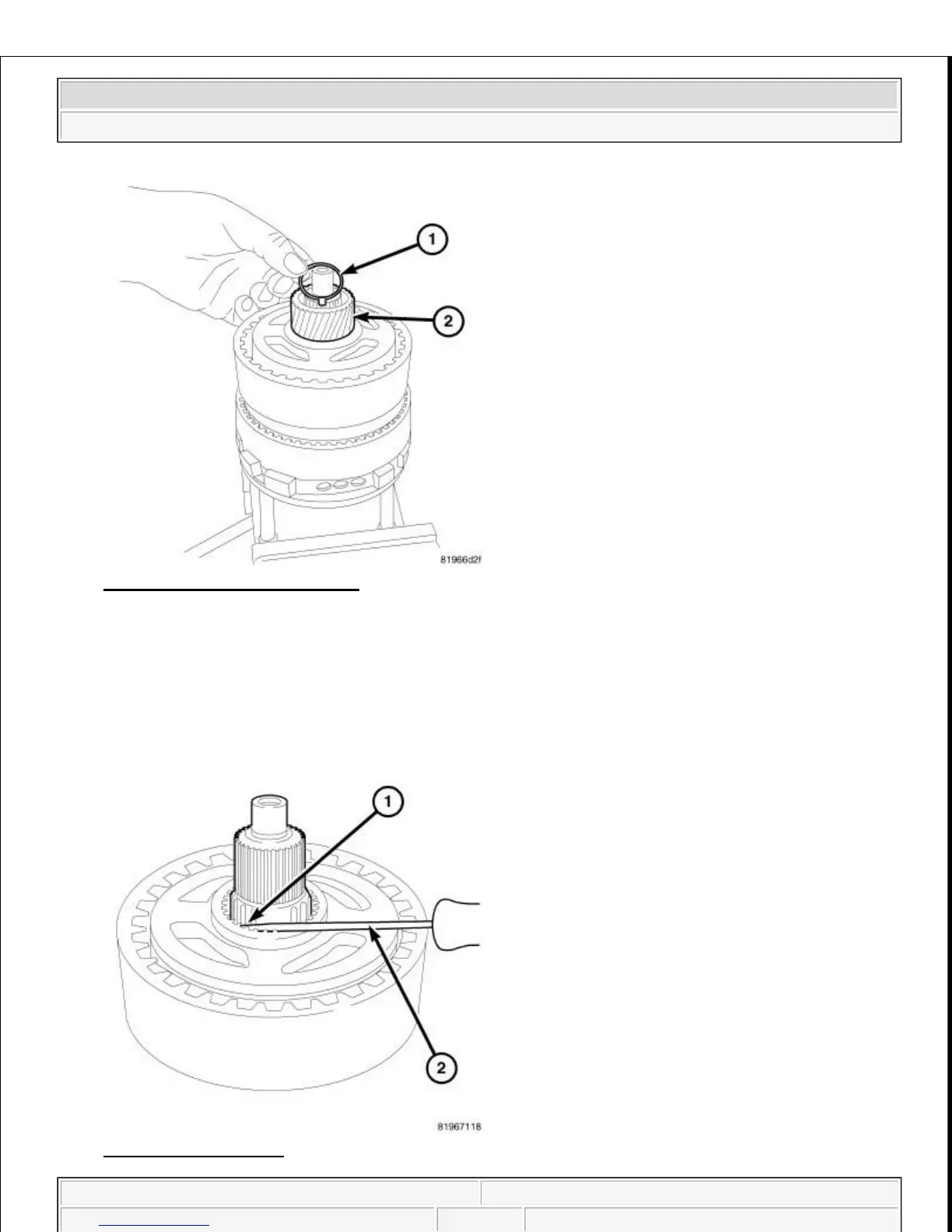

Fig. 367: Clip At Transfer Shaft
Courtesy of CHRYSLER LLC
11. Discard the retaining clip (that was removed from the transfer/underdrive shaft.
12. Remove the sun gear (2) from the shaft.
Fig. 368: Split Bearing
Courtesy of CHRYSLER LLC
NOTE: A new retaining clip will be used during assembly.
2009 Chrysler Town & Country LX
2009 AUTOMATIC TRANSMISSION 62TE - Service Information - Grand Caravan, Town & Country
