Chrysler 62TE - Tapping Reaction Plate; Reverse Clutch Snap Ring

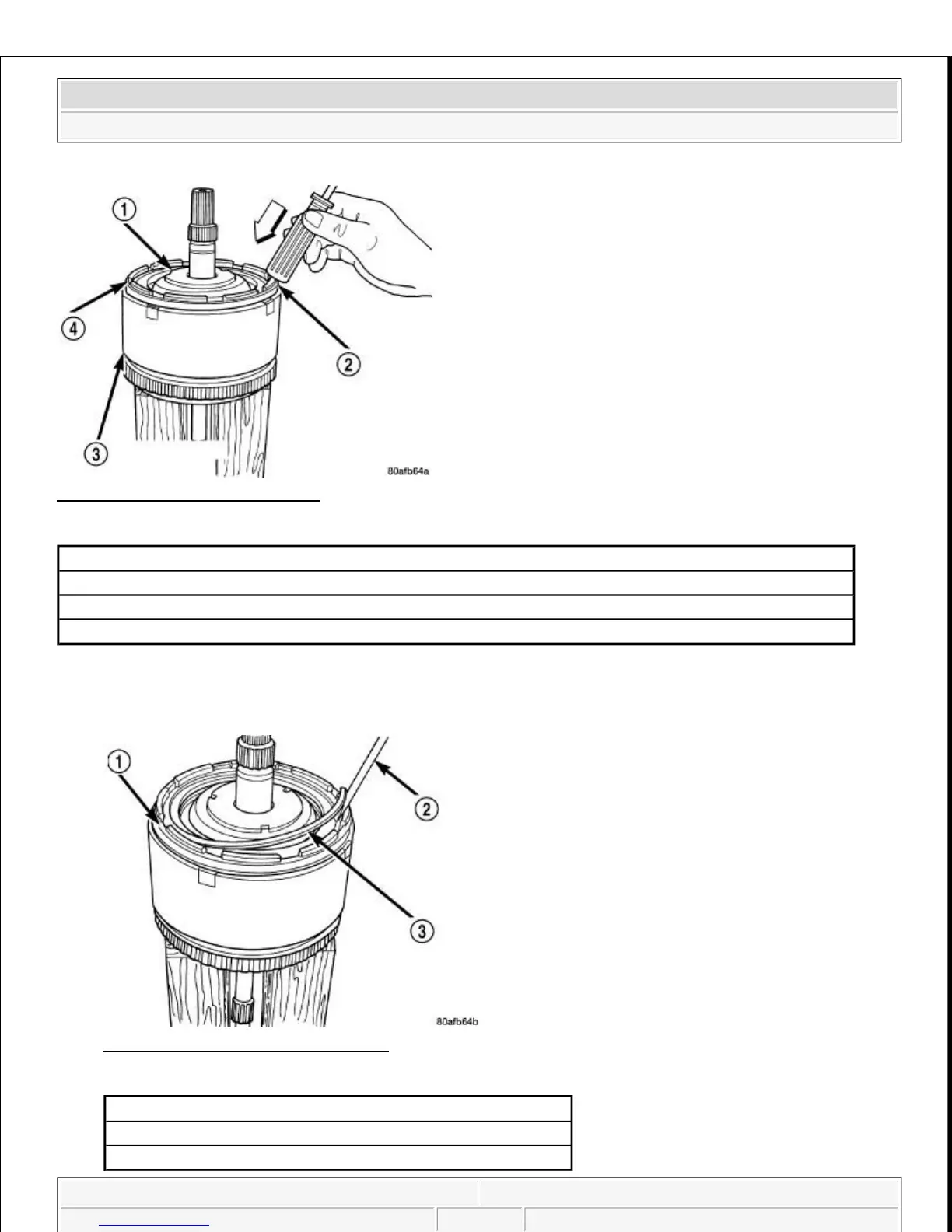

Fig. 303: Tapping Reaction Plate
Courtesy of CHRYSLER LLC
1. Mount input clutch assembly (3) to Input Clutch Pressure Fixture Tool 8391.
2. Tap down reverse clutch reaction plate (4) to release pressure from snap ring (2).
Fig. 304: Reverse Clutch Snap Ring
Courtesy of CHRYSLER LLC
1 - #4 THRUST PLATE (SELECT)
2 - TAP DOWN REVERSE CLUTCH REACTION PLATE TO REMOVE OR INSTALL SNAP RING
3 - INPUT SHAFT CLUTCHES RETAINER ASSEMBLY
4 - REVERSE CLUTCH REACTION PLATE
1 - REACTION PLATE
2 - SCREWDRIVER
3 - REVERSE CLUTCH SNAP RING (SELECT)
