Chrysler 62TE - Overdrive;Underdrive Shafts

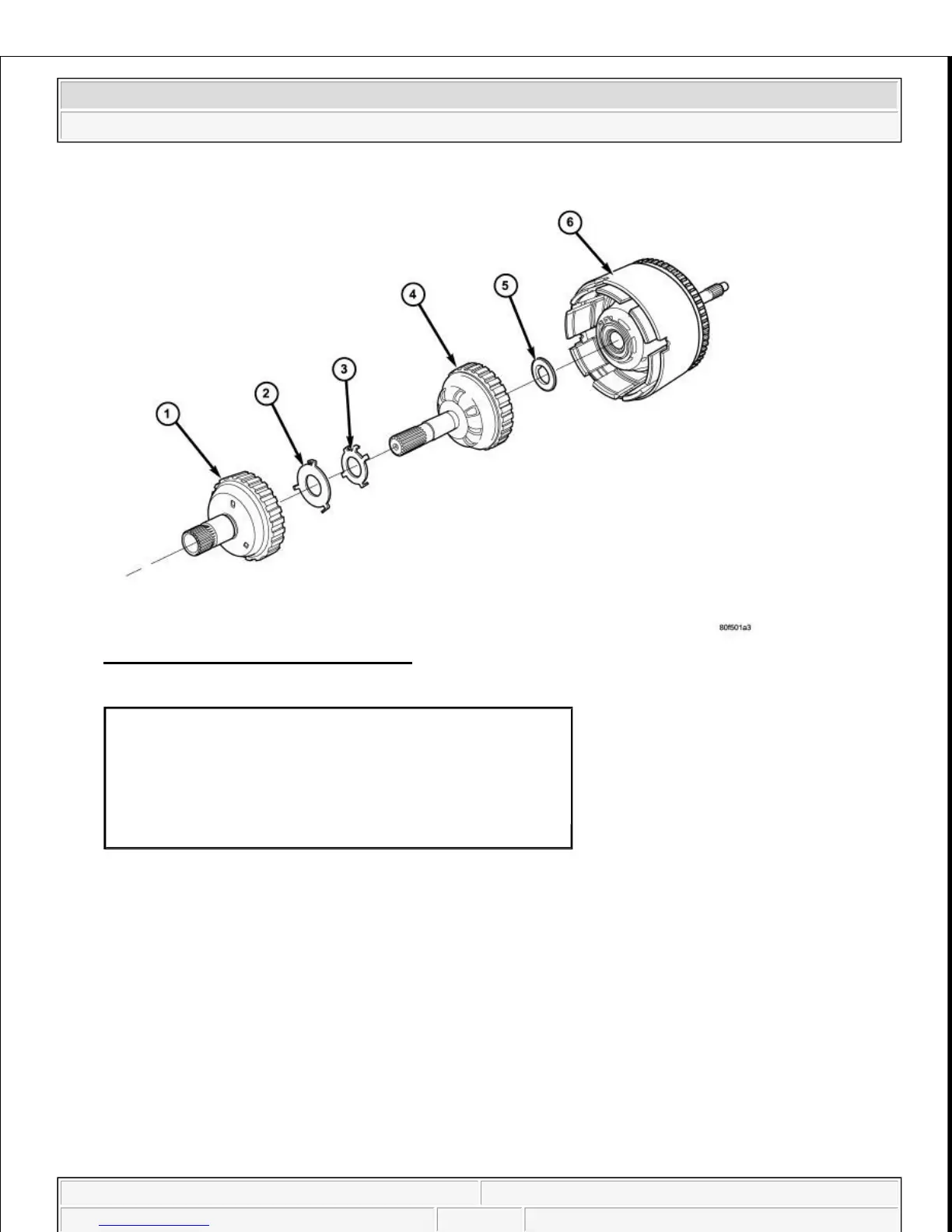

Fig. 308: Overdrive/Underdrive Shafts
Courtesy of CHRYSLER LLC
10. Remove and inspect OD (1) and UD Shafts (4), as well as number three thrust washer and plate (2, 3),
and number two needle bearin
g
(5).
1 - OVERDRIVE SHAFT
2 - #3 THRUST PLATE (3 TABS)
3 - #3 THRUST WASHER (5 TABS)
4 - UNDERDRIVE SHAFT
5 - #2 NEEDLE BEARING (3 TABS)
6 - INPUT CLUTCH ASSEMBLY
2009 Chrysler Town & Country LX
2009 AUTOMATIC TRANSMISSION 62TE - Service Information - Grand Caravan, Town & Country
