four thrust plate.
38. Install pump and gasket to transmission. Install and torque bolts.

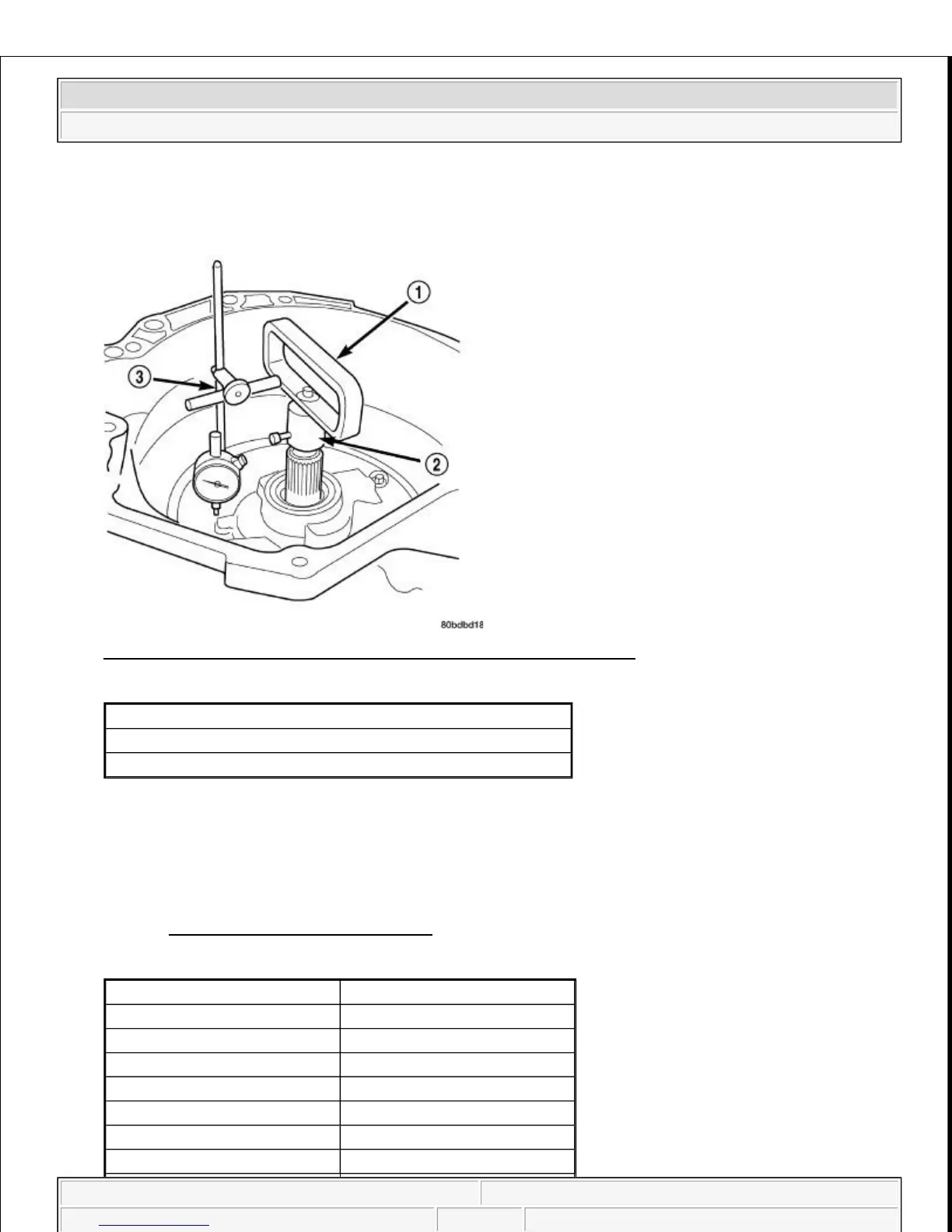

Fig. 146: Measure Input Shaft End Play Using End Play Set 8266A
Courtesy of CHRYSLER LLC
39. Set up input shaft for measurement with Indicator Set C-3339A (3) and End Play Set 8266A (1, 2).
40. Measure the input shaft end play with the transaxle in the vertical position. Input shaft end pla
must be
within 0.13-0.64 mm (0.005 to 0.025 in.) For example, if end play reading is 0.055 in. select number
four Thrust Plate which is 0.071-0.074 in. thick. This should provide an input shaft end play reading of
0.020 in. which is within specifications.
41. Refer to NO. 4 THRUST PLATE TABLE to select the proper number four thrust plate.
NO. 4 THRUST PLATE TABLE
1 - END PLAY SOCKET SET 8266A
2 - DIAL INDICATOR C-3339A
-
PART NUMBER THICKNESS
4431665AB 1.60 mm (0.063 in.)
3836237AB 1.73 mm (0.068 in.)
4431666AB 1.80 mm (0.071 in.)
3836238AB 1.96 mm (0.077 in.)
4431667AB 2.03 mm (0.080 in.)
3836239AB 2.16 mm (0.085 in.)
4431668AB 2.24 mm (0.088 in.)
2009 Chrysler Town & Country LX
2009 AUTOMATIC TRANSMISSION 62TE - Service Information - Grand Caravan, Town & Country
