. 86: Low/Reverse Clutch Piston
Courtesy of CHRYSLER LLC
62. Remove low/reverse clutch piston (1).

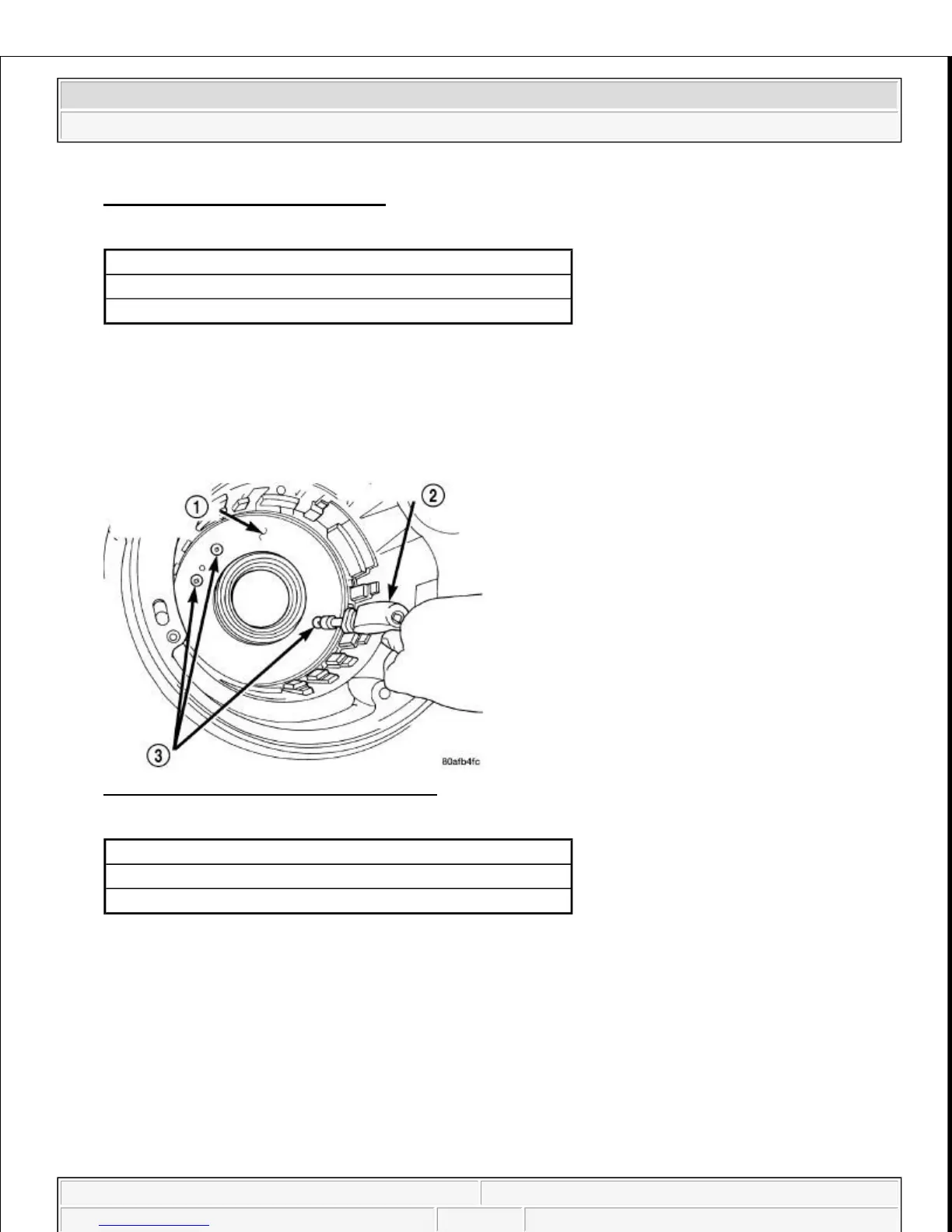

Fig. 87: Piston Retainer Attaching Screws
Courtesy of CHRYSLER LLC
63. Remove low/reverse piston retaine
-to-case screws (3).
1 - LOW/REVERSE CLUTCH PISTON
2 - BONDED SEAL
3 - BONDED SEAL
NOTE: The Low/Reverse Clutch Piston has bonded seals which are not
individually serviceable. Seal replacement requires replacement of the
piston assembly.
1 - LOW/REVERSE CLUTCH PISTON RETAINER
2 - SCREWDRIVER
3 - TORX-LOC SCREWS
2009 Chrysler Town & Country LX
2009 AUTOMATIC TRANSMISSION 62TE - Service Information - Grand Caravan, Town & Country
