Chrysler 62TE - UD Clutch Flat Snap Ring

Courtes
y
of CHRYSLER LLC

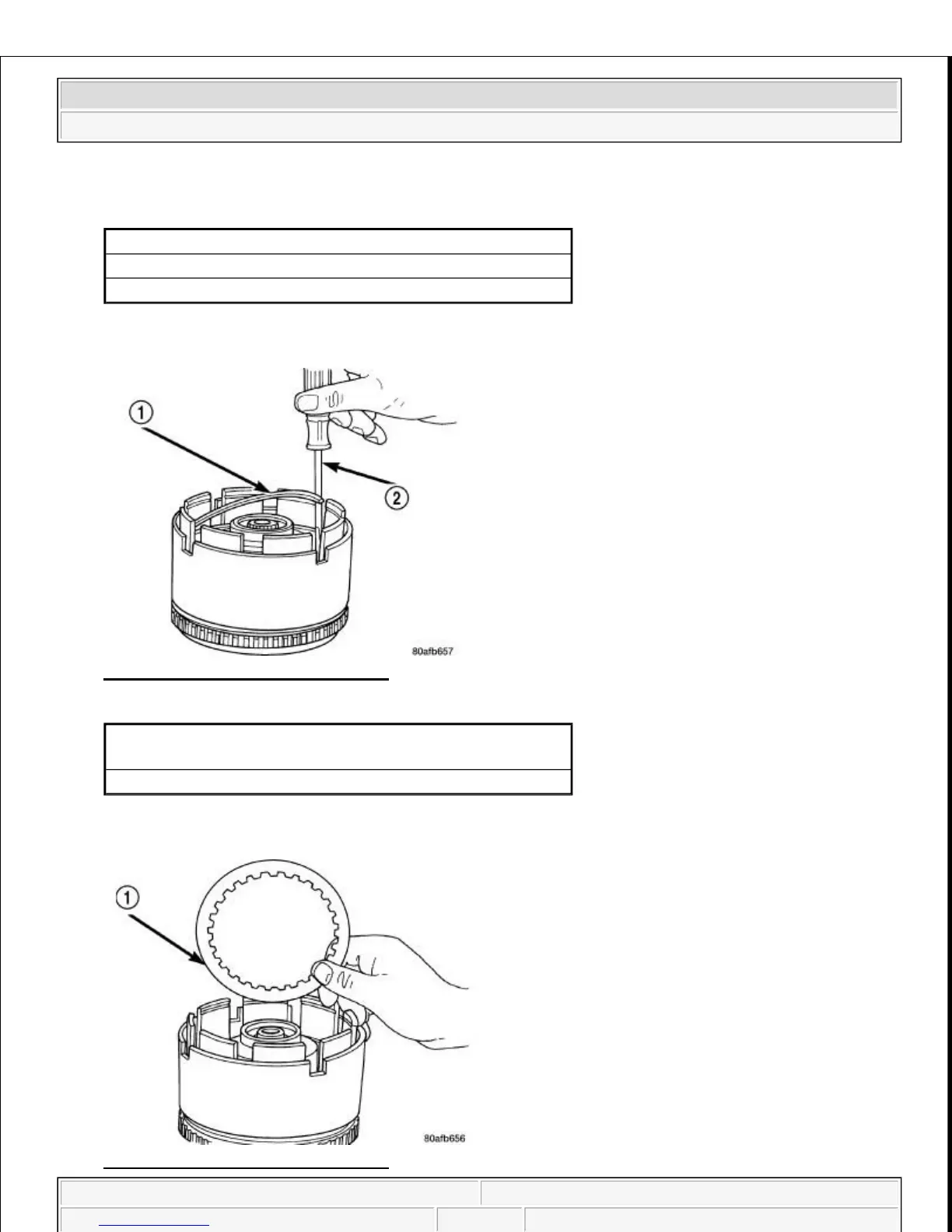

14. Install the UD clutch pack (1, 3). Leave out upper disc (2), until snap ring is installed.
Fig. 333: UD Clutch Flat Snap Ring
Courtesy of CHRYSLER LLC
15. Install the UD clutch flat snap ring (1).
Fig. 334: UD Clutch Flat Snap Ring
1 - CLUTCH PLATE
2 - ONE UD CLUTCH DISC
3 - CLUTCH DISC
1 - UNDERDRIVE CLUTCH REACTION PLATE FLAT
SNAP RING
2 - SCREWDRIVER
