Chrysler 62TE - Exploded View of Direct Clutch

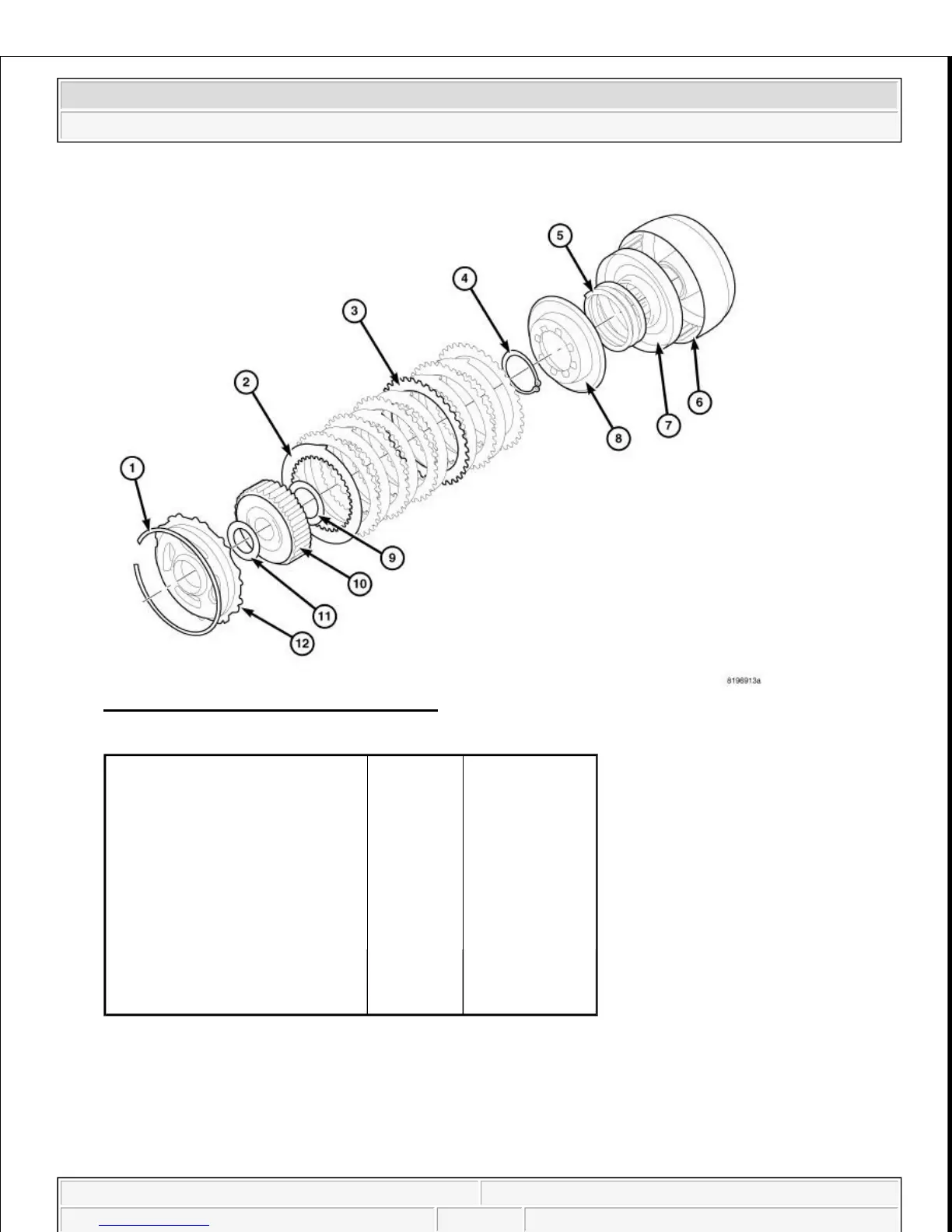

Fig. 370: Exploded View Of Direct Clutch
Courtesy of CHRYSLER LLC
15. Remove the internal snap ring (1).
16. Remove the selectable reaction plate (12).
17. Remove the number one thrust bearing (11).
18. Remove the hub (10).
19. Remove the number two thrust bearin
g
(9).
1 - INTERNAL SNAP RING 5 -
RETURN
COIL
SPRING
9 - #2 THRUST
BEARING
2 - FRICTION (INNER SPLINE)
6 -
RETAINER
10 - HUB
3 - FRICTION (OUTER SPLINE) 7 - PISTON
11 - # 1
THRUST
BEARING
4 - RETAINER SNAP RING 8 -
BALANCE
PISTON
12 - REACTION
PLATE
(SELECTABLE)
2009 Chrysler Town & Country LX
2009 AUTOMATIC TRANSMISSION 62TE - Service Information - Grand Caravan, Town & Country
