Chrysler 62TE - OD;UD Reaction Plate

Courtes
y
of CHRYSLER LLC

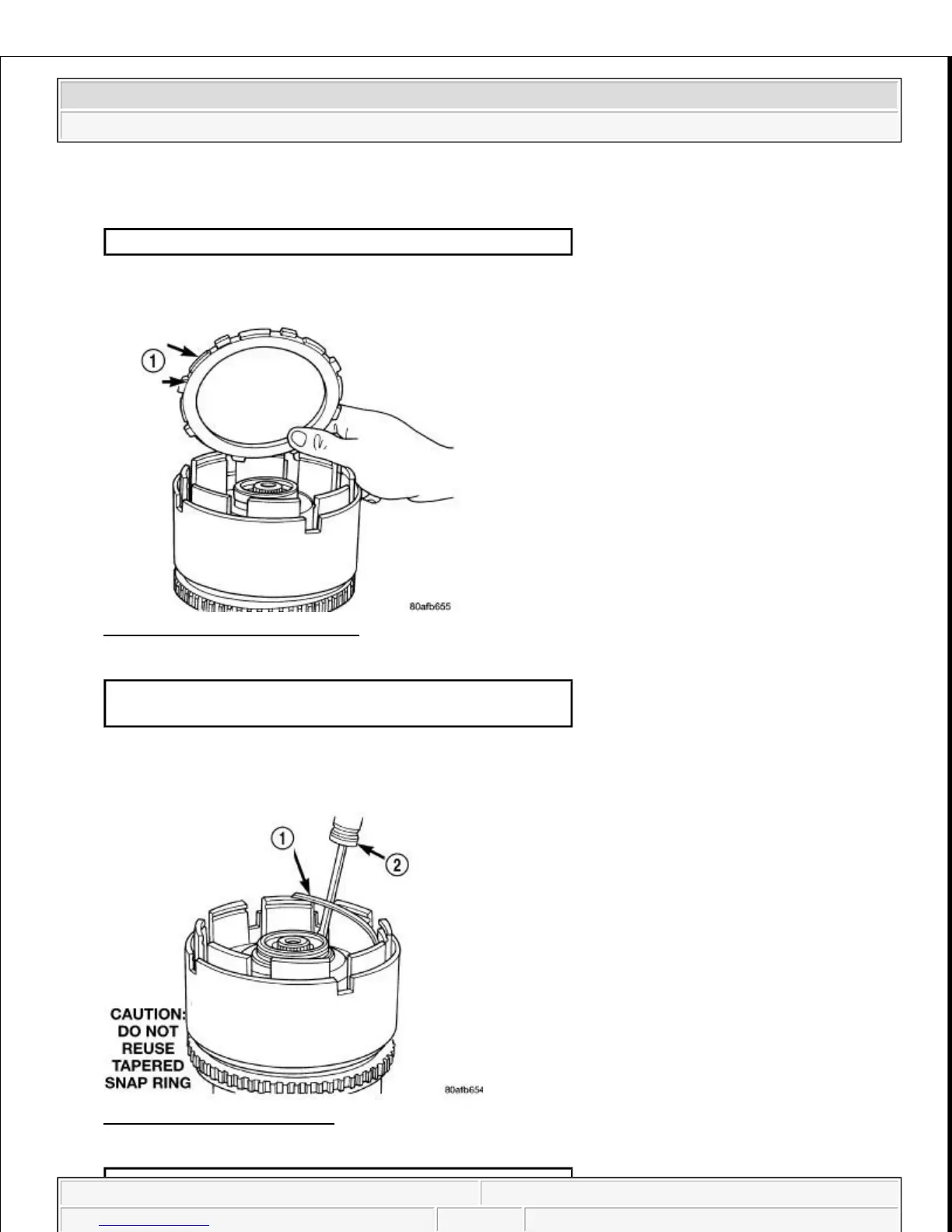

16. Install the last UD clutch disc (1).
Fig. 335: OD/UD Reaction Plate
Courtesy of CHRYSLER LLC
17. Place the OD/UD clutch reaction plate (1) and snap ring into position. The OD/UD clutches reaction plate
has a step on both sides. Install the OD/UD clutches reaction plate tapered step side up.
Fig. 336: Tapered Snap Ring
Courtesy of CHRYSLER LLC
1 - ONE UNDERDRIVE CLUTCH DISC
1 - OD/UD CLUTCH REACTION PLATE (TAPERED
STEP SIDE UP)
