Chrysler 62TE - OD Clutch Pack; Waved Snap Ring

26. If necessary, select the proper reaction plate to achieve specifications:

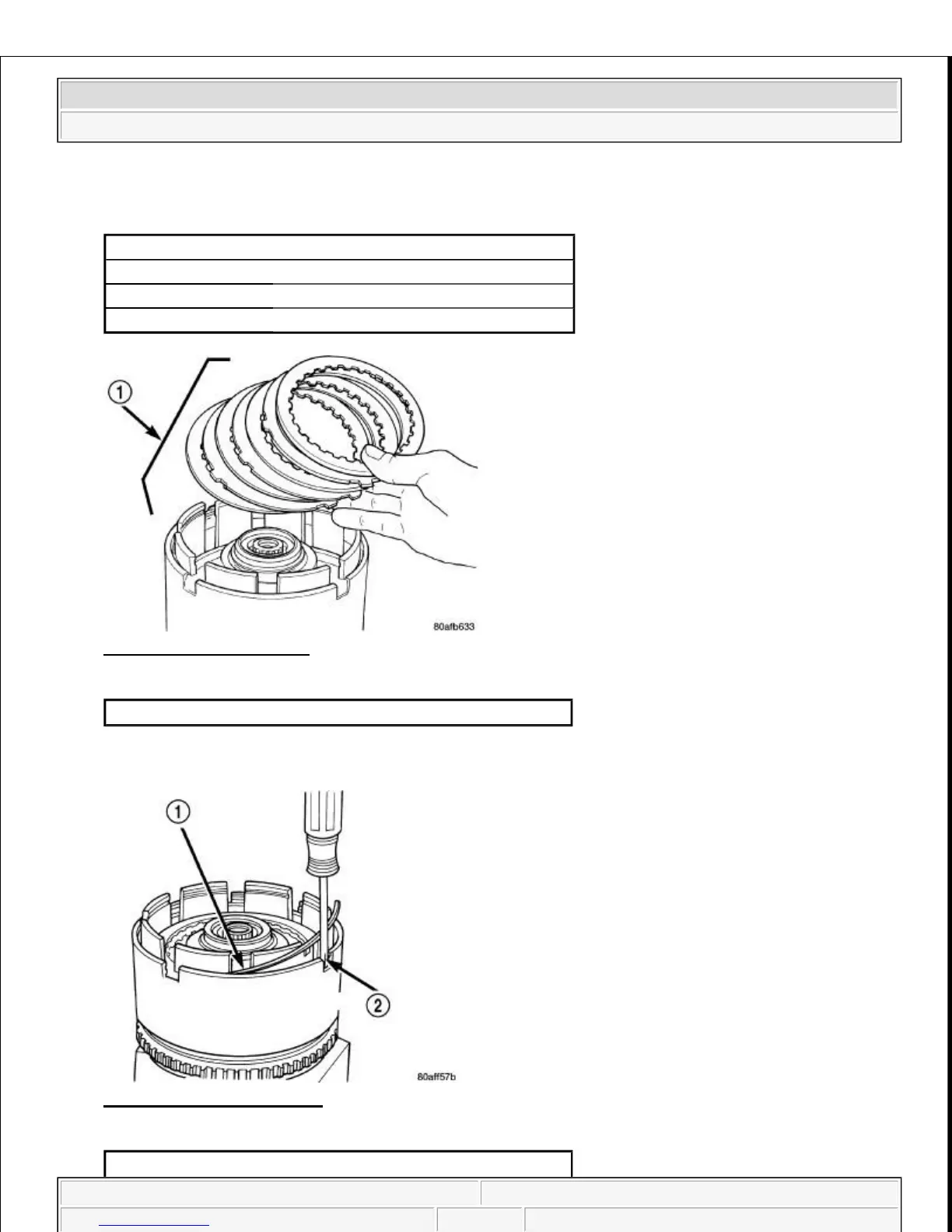

Fig. 342: OD Clutch Pack
Courtesy of CHRYSLER LLC
27. Install the OD clutch pack (four frictions/three steels) (1).
Fig. 343: Waved Snap Ring
Courtesy of CHRYSLER LLC
UNDERDRIVE REACTION PLATE THICKNESS
4659939AB 5.837-5.937 mm (0.230-0.234 in.)
4659940AB 6.147-6.248 mm (0.242-0.246 in.)
4659941AB 6.457-6.557 mm (0.254-0.258 in.)
1 - OVERDRIVE CLUTCH PACK
1 - OVERDRIVE PRESSURE PLATE WAVED SNAP
