9. Install ring gear-to-case bolts, with pinion shaft retainers, and tighten bolts (4) to 95 N.m (70 ft. lbs.).
10. Check differential side gear turning torque using Differential Bearing Torque Tool C-4995-1. Turning
torque should be no more than 10 to 20 in-lbs (drag). If drag exceeds 20 in-lbs decrease shim size, if the
drag is less than 10 in-lbs (drag) increase shim size.
Fig. 439: Differential Pinion Side Bearing
Courtesy of CHRYSLER LLC

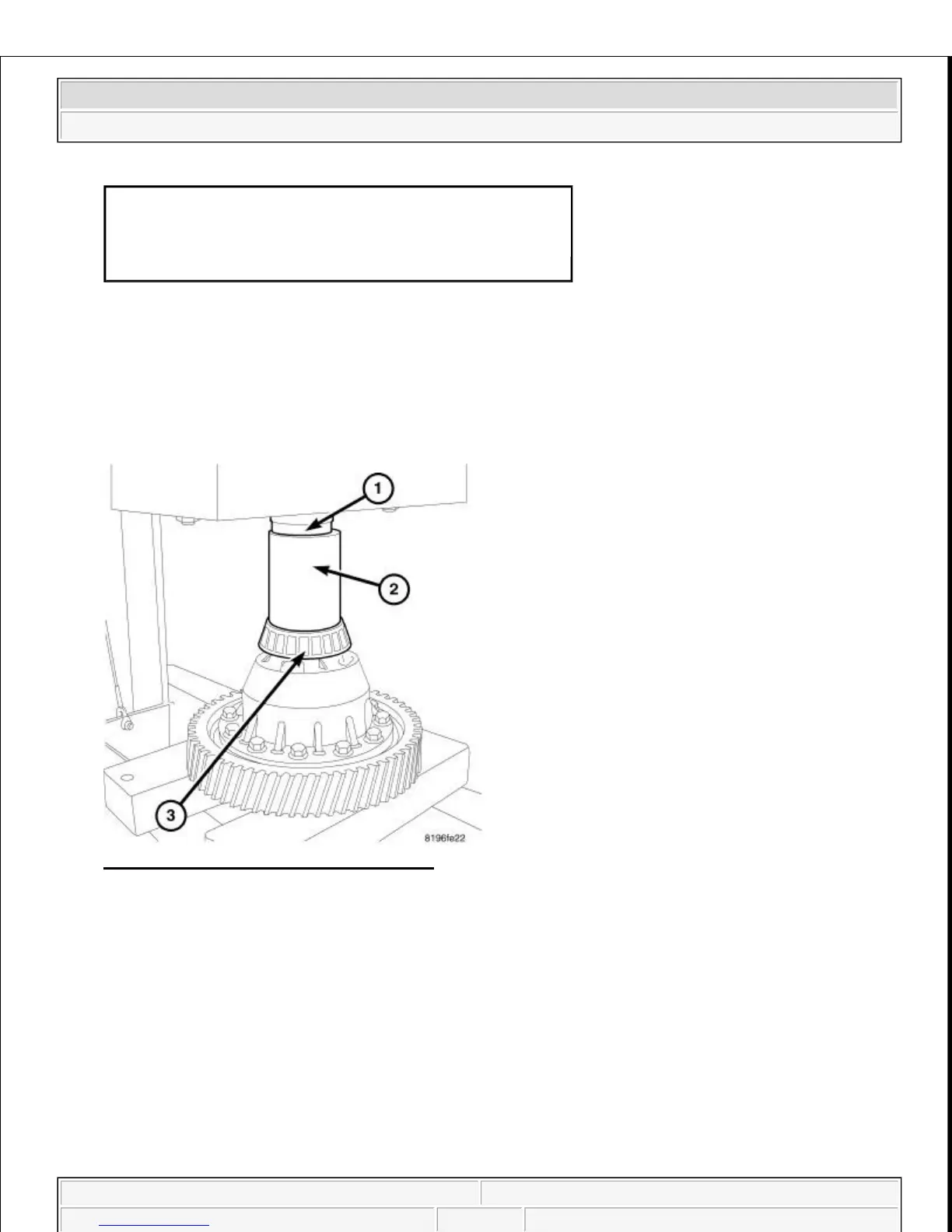

11. Using Installer 6888 (1) and a press (2), install differential bearing (3) to pinion side of the differential
housin
.
1 - DIFFERENTIAL CASE
2 - PINION SHAFT RETAINER
3 - RING GEAR
4 - RING GEAR-TO-CASE BOLT
NOTE: New bolts must be used.
