35. Remove the bolt (3) at transmission front mount bracket to engine.
36. Remove the front mount bracket (2).

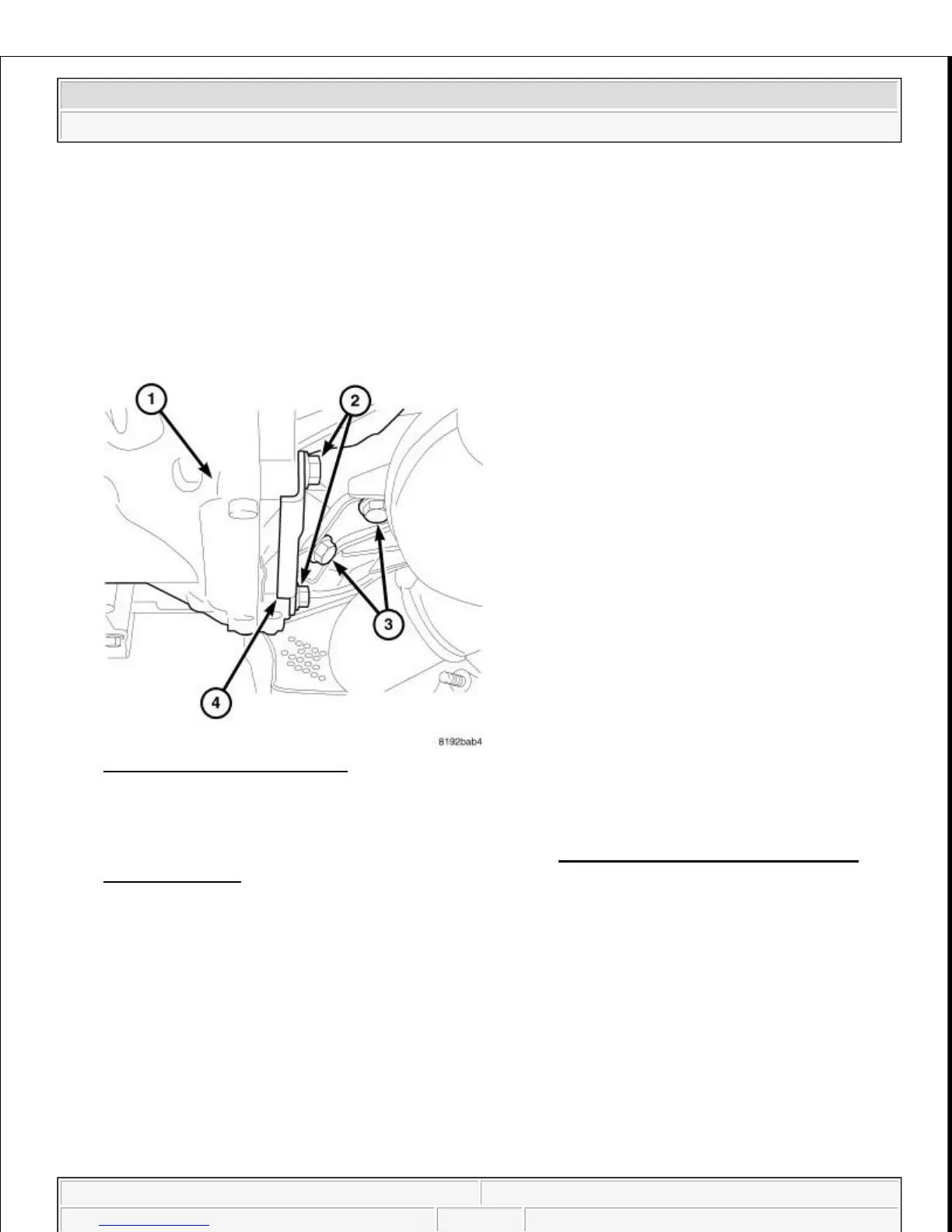

Fig. 32: Exhaust Bracket Bolts
Courtesy of CHRYSLER LLC
37. On 4.0L engines, remove bolts (3) to exhaust bracket.
38. Remove the exhaust cross under pipe (if equipped). Refer to Exhaust System/PIPE, Exhaust Cross
Under - Removal .
39. Remove bolts (2) to stand off bracket (4).
40. Remove bracket (4).
NOTE: The three bolts on the left side of the front bracket hold the starter in
place, ensure starter is supported.
