Chrysler 62TE - Underdrive Compounder Assembly; Bolts at Remote Pinion Cover

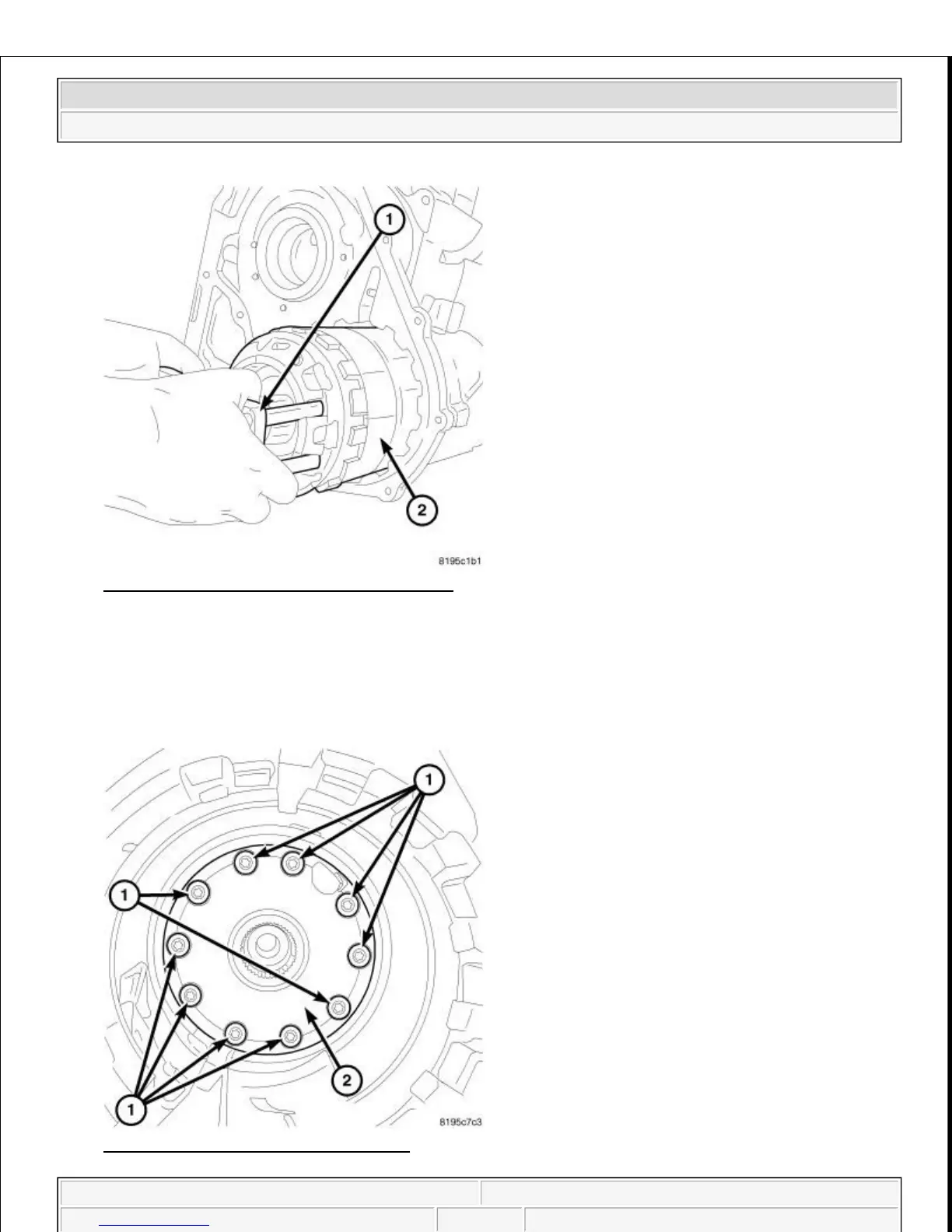

Fig. 96: Underdrive Compounder Assembly
Courtesy of CHRYSLER LLC
72. Remove the underdrive compounder assembly (2).
Fig. 97: Bolts At Remote Pinion Cover
Courtesy of CHRYSLER LLC
NOTE: Insure that the planetary gear set/output hub is removed as part of the
underdrive compounder assembly.
