Chrysler 62TE - Dust Shield; Torque Converter Bolts

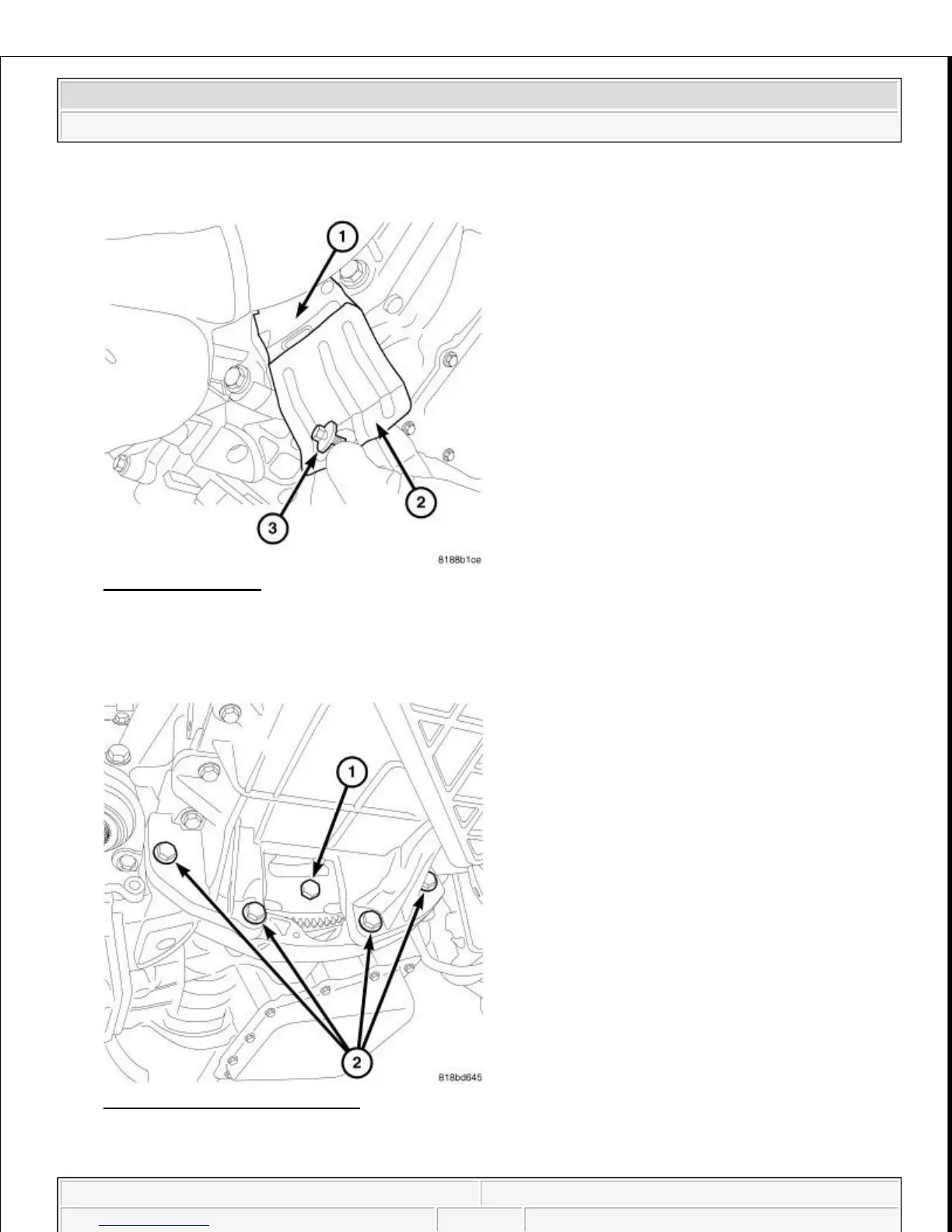

Fig. 33: Dust Shield
Courtesy of CHRYSLER LLC
41. Remove torque converter dust shield bolt (3).
42. Remove torque converter dust shield (2).
Fig. 34: Torque Converter Bolts
Courtesy of CHRYSLER LLC
43. Remove the torque converte
r
-to-driveplate bolts (1). Upon removing bolts, a tight-tolerance (slotted) bolt
