Chrysler 62TE - Exploded View of Low Clutch; Low Clutch Compressed

Fi
g
. 378: Exploded View Of Low Clutch
Courtesy of CHRYSLER LLC
31. Remove the snap ring (10).
32. Remove the reaction plate (3)
33. Remove the friction disc's (4) and the separator plates (5).

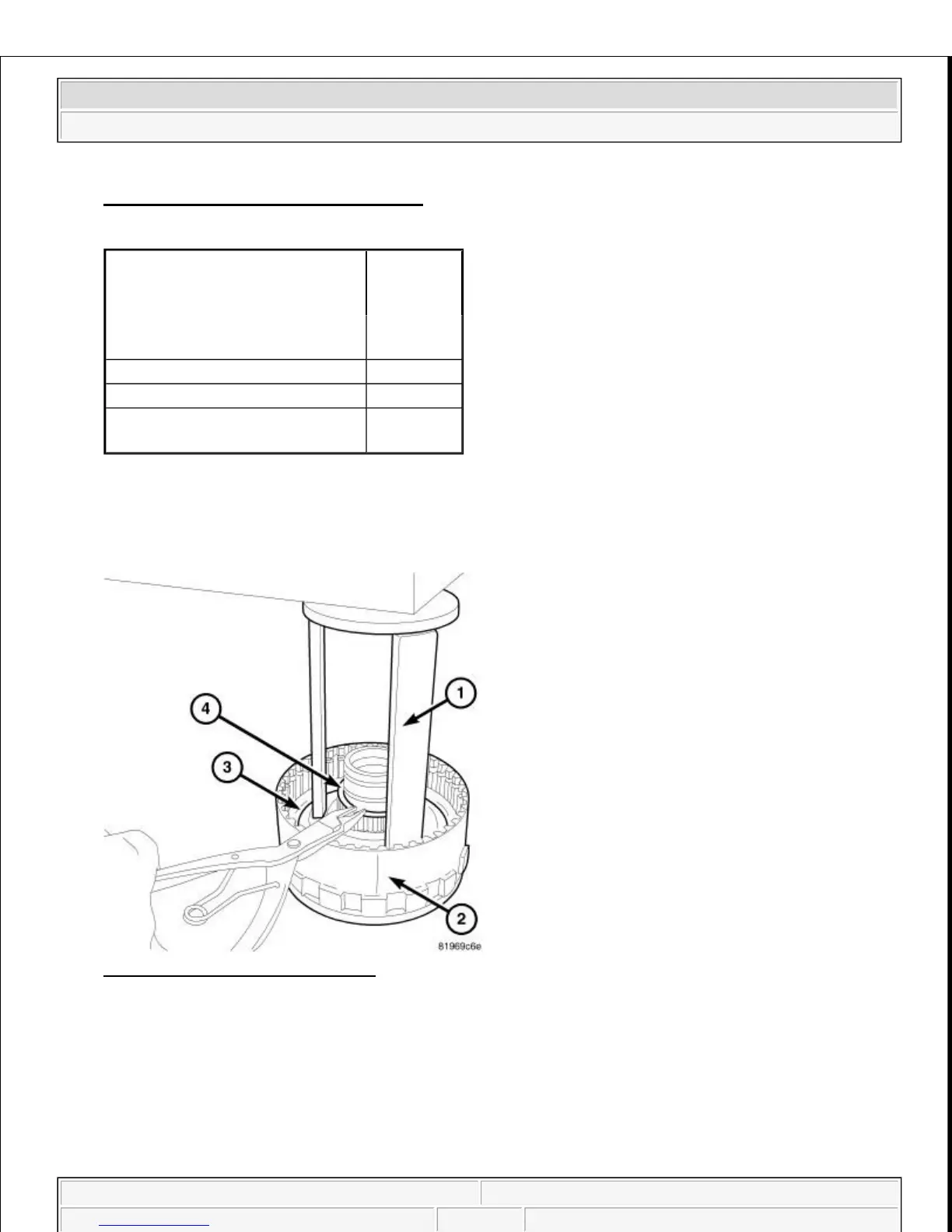

Fig. 379: Low Clutch Compressed
Courtesy of CHRYSLER LLC
34. Install compressor 9725 (1) on return spring (3) and slightly compress.
35. Remove the snap rin
g
(4) from low clutch retainer (2).
1 - SNAP RING (SELECTABLE) 6 -
RETURN
SPRING
2 - CLUTCH HUB 7 -
RETAINER
3 - REACTION PLATE 8 - SEALS
4 - FRICTION DISC 9 - PISTON
5 - SEPARATOR PLATE
10 - SNAP
RING
