32. Measure OD clutch pack clearance. Set up dial indicator (1) on top of the OD/Reverse pressure plate.
33. Zero dial indicator and apply 30 psi (206 kPa) air pressure to the overdrive clutch hose on Tool 8391.
Measure and record OD clutch pack measurement in four (4) places, 90° apart.
34. Take average of four measurements and compare with OD clutch pack clearance specification. The
overdrive (OD) clutch pack clearance is 0.491 - 2.345 mm (0.019 - 0.092 in.).
If not within specifications, the clutch is not assembled properly. There is no adjustment for the OD
clutch clearance.
35. Install reverse clutch pack (two frictions/one steel) (1, 2).

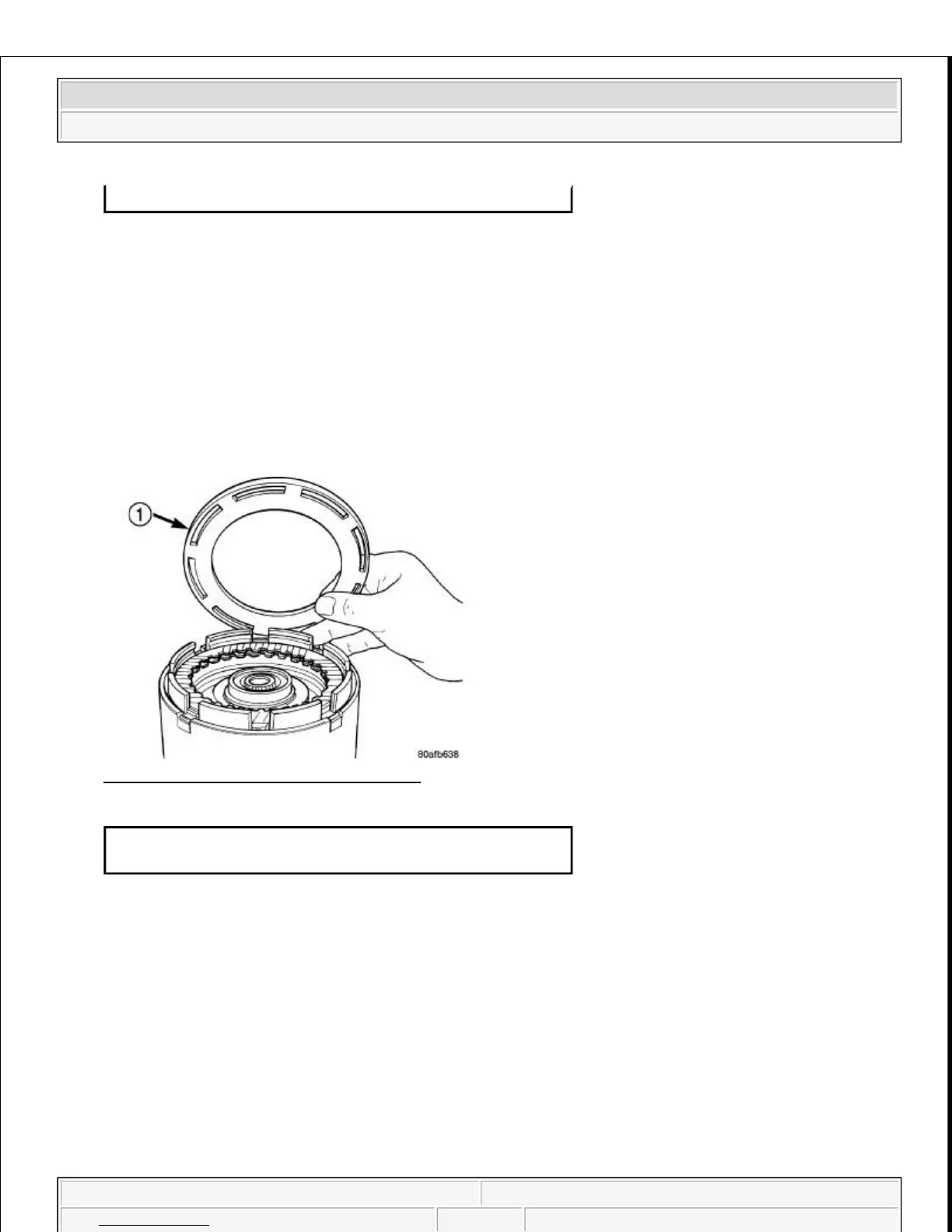

Fig. 348: Reverse Clutch Reaction Plate
Courtesy of CHRYSLER LLC
36. Install reverse clutch reaction plate with the flat side down towards reverse clutch.
2 - OD/REVERSE REACTION PLATE
1 - REVERSE CLUTCH REACTION PLATE (FLAT SIDE
DOWN)
2009 Chrysler Town & Country LX
2009 AUTOMATIC TRANSMISSION 62TE - Service Information - Grand Caravan, Town & Country
