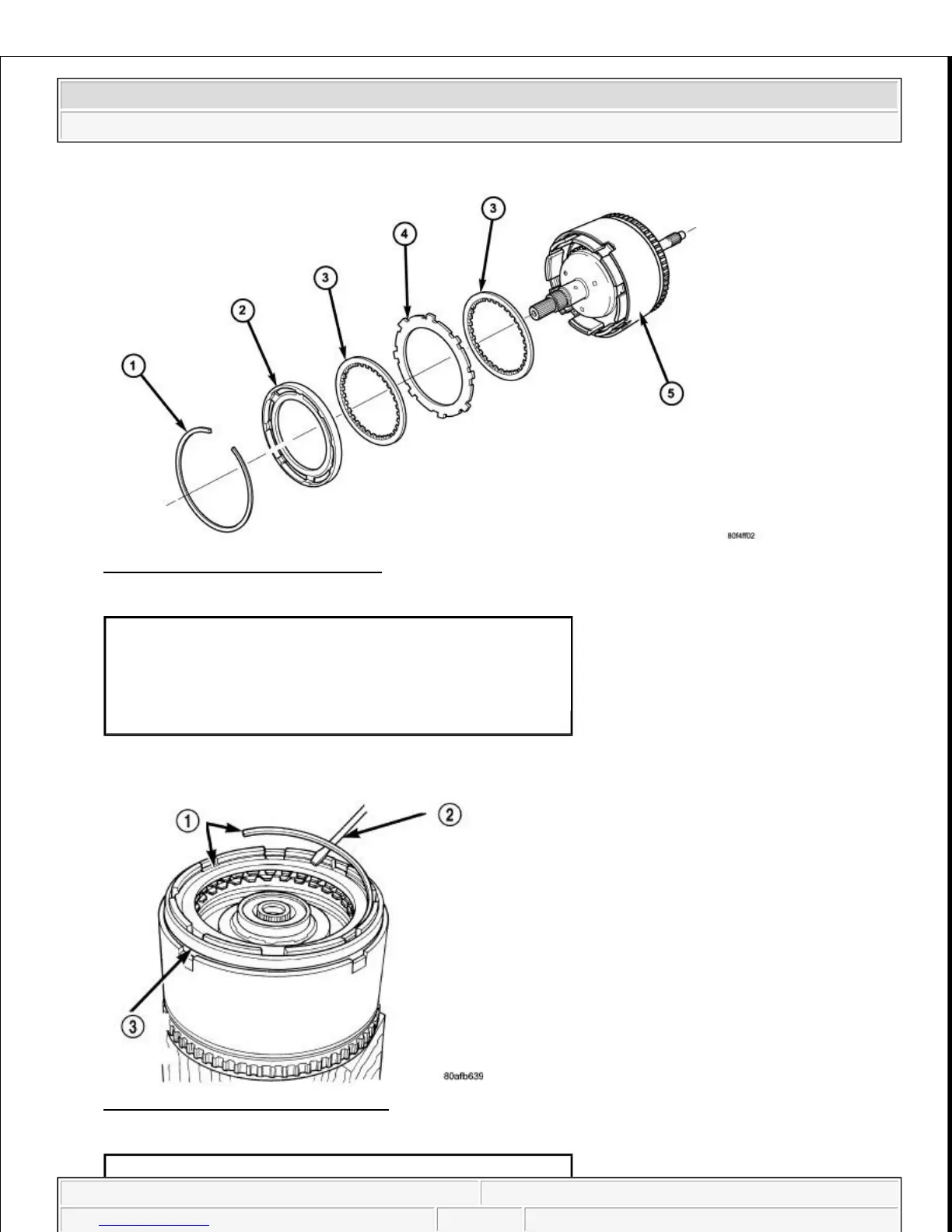

Fig. 349: Reverse Clutch Assembly
Courtesy of CHRYSLER LLC
37. Refer to the illustration as necessary when performing the following steps.
Fig. 350: Reverse Clutch Snap Ring
Courtesy of CHRYSLER LLC
1 - SNAP RING
2 - REACTION PLATE
3 - CLUTCH DISC (2)
4 - CLUTCH PLATE (1)
5 - INPUT CLUTCH ASSEMBLY
1 - REVERSE CLUTCH SNAP RING (SELECT)
