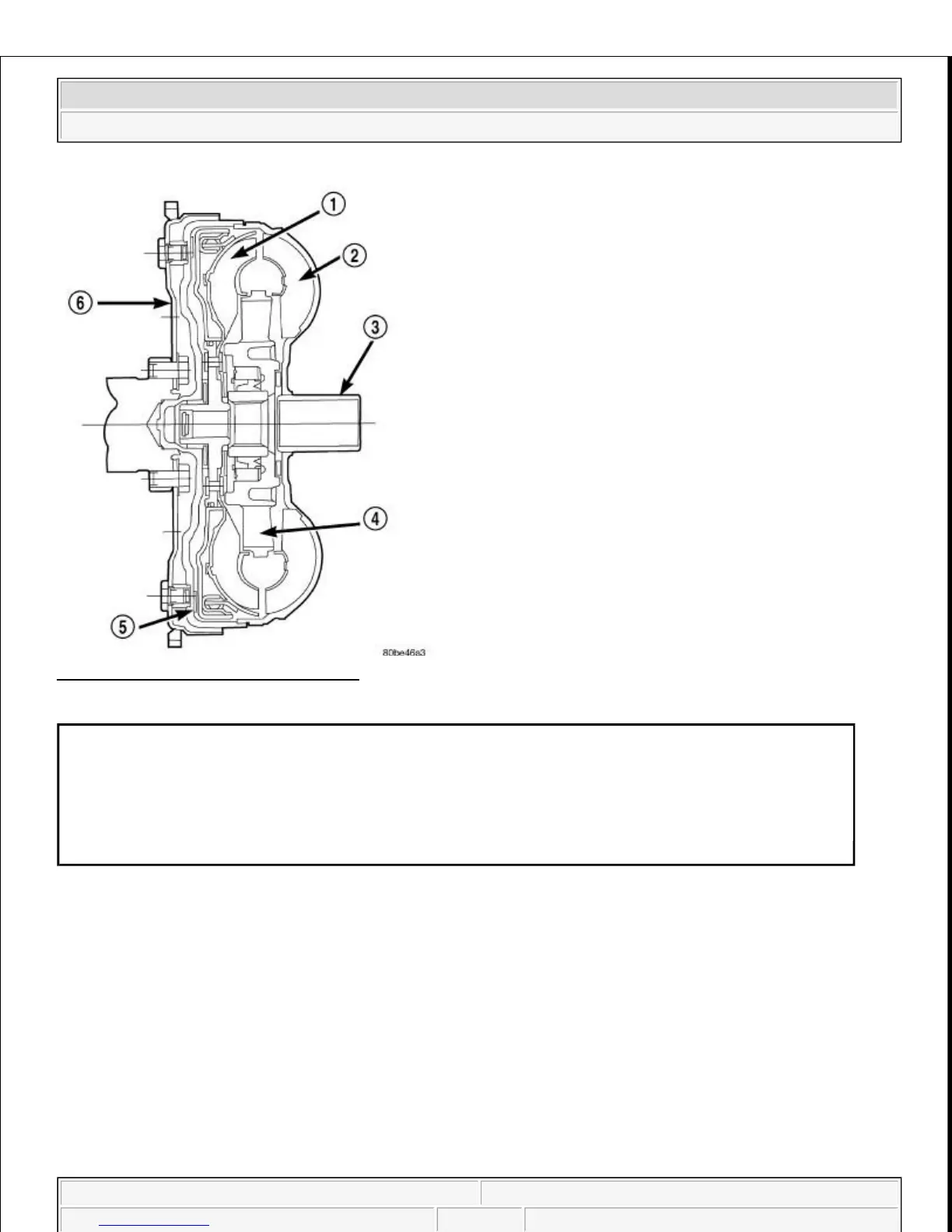

Fig. 572: Torque Converter Assembly
Courtesy of CHRYSLER LLC
The torque converter is a hydraulic device that couples the engine crankshaft to the transmission. The torque
converter consists of an outer shell with an internal turbine (1), a stator (4), an over-running clutch, an impeller
(2) and an electronically applied converter clutch (5). The converter clutch provides reduced engine speed and
greater fuel economy when engaged. Clutch engagement also provides reduced transmission fluid temperatures.
The converter clutch engages in third gear. The torque converter hub (3) drives the transmission oil (fluid)
ump.
The torque converter is a sealed, welded unit that is not repairable and is serviced as an assembly.
IMPELLER
1 - TURBINE
2 - IMPELLER
3 - HUB
4 - STATOR
5 - CONVERTER CLUTCH DISC
6 - DRIVE PLATE
