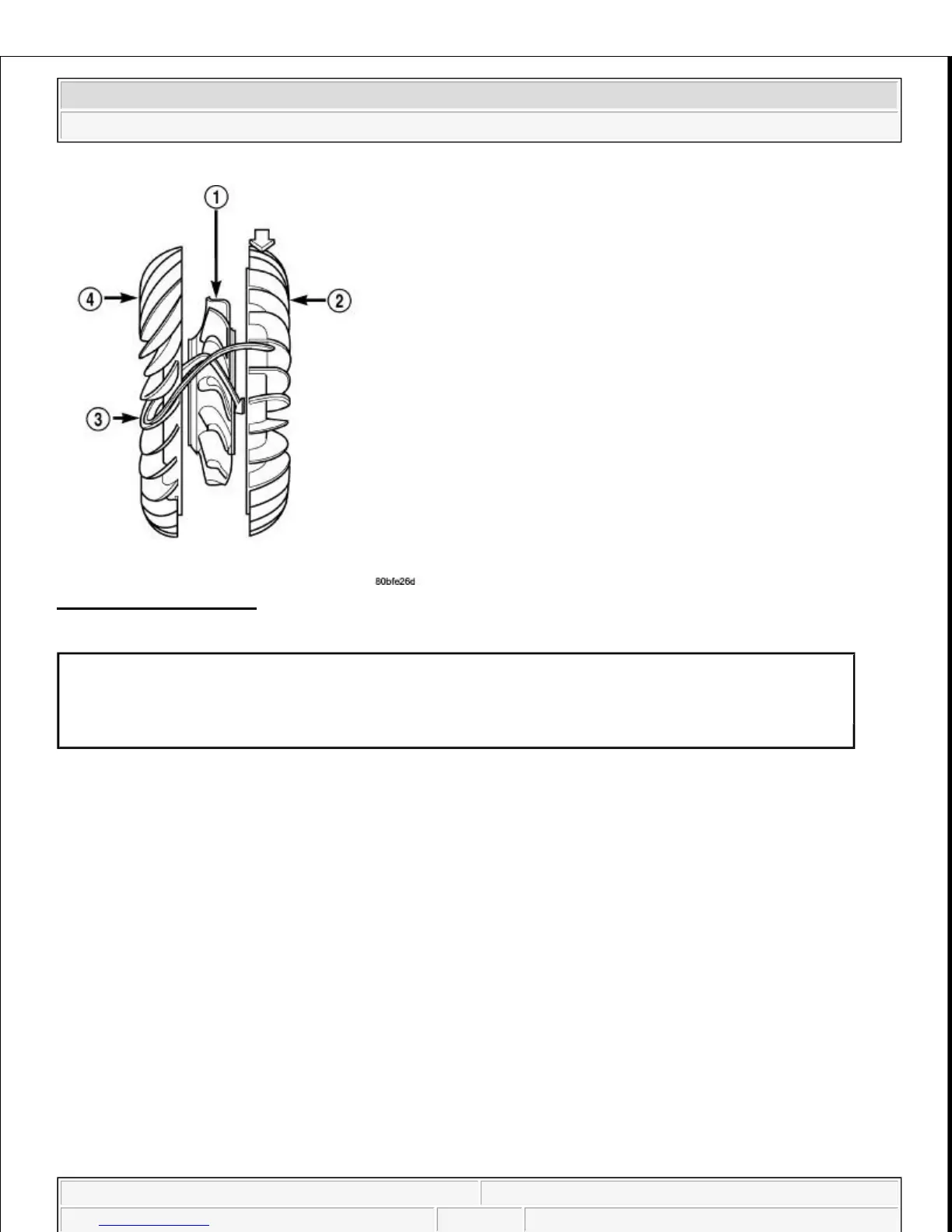

Fig. 575: Stator Location
Courtesy of CHRYSLER LLC
The stator assembly (1) is mounted on a stationary shaft which is an integral part of the oil pump. The stator is
located between the impeller (2) and turbine (4) within the torque converter case. The stator contains an over-
running clutch, which allows the stator to rotate only in a clockwise direction. When the stator is locked against
the over-running clutch, the torque multiplication feature of the torque converter is operational.
TORQUE CONVERTER CLUTCH (TCC)
1 - STATOR
2 - IMPELLER
3 - FLUID FLOW
4 - TURBINE
