Chrysler 62TE - Clip at Transfer Shaft-Out

3. Remove the snap ring (4) holding the planetary carrier.
4. Remove the planetary carrier (5).
5. Remove the snap ring (6) holding the annulus gear.
6. Remove the needle bearing (7) on the front side of the annulus gear.
7. Remove the annulus gear (8).
8. Remove the needle bearing (9) on the back side of the annulus gear/on the front side of the output hub.
9. Inspect the needle bearing in the output hub for any damage.

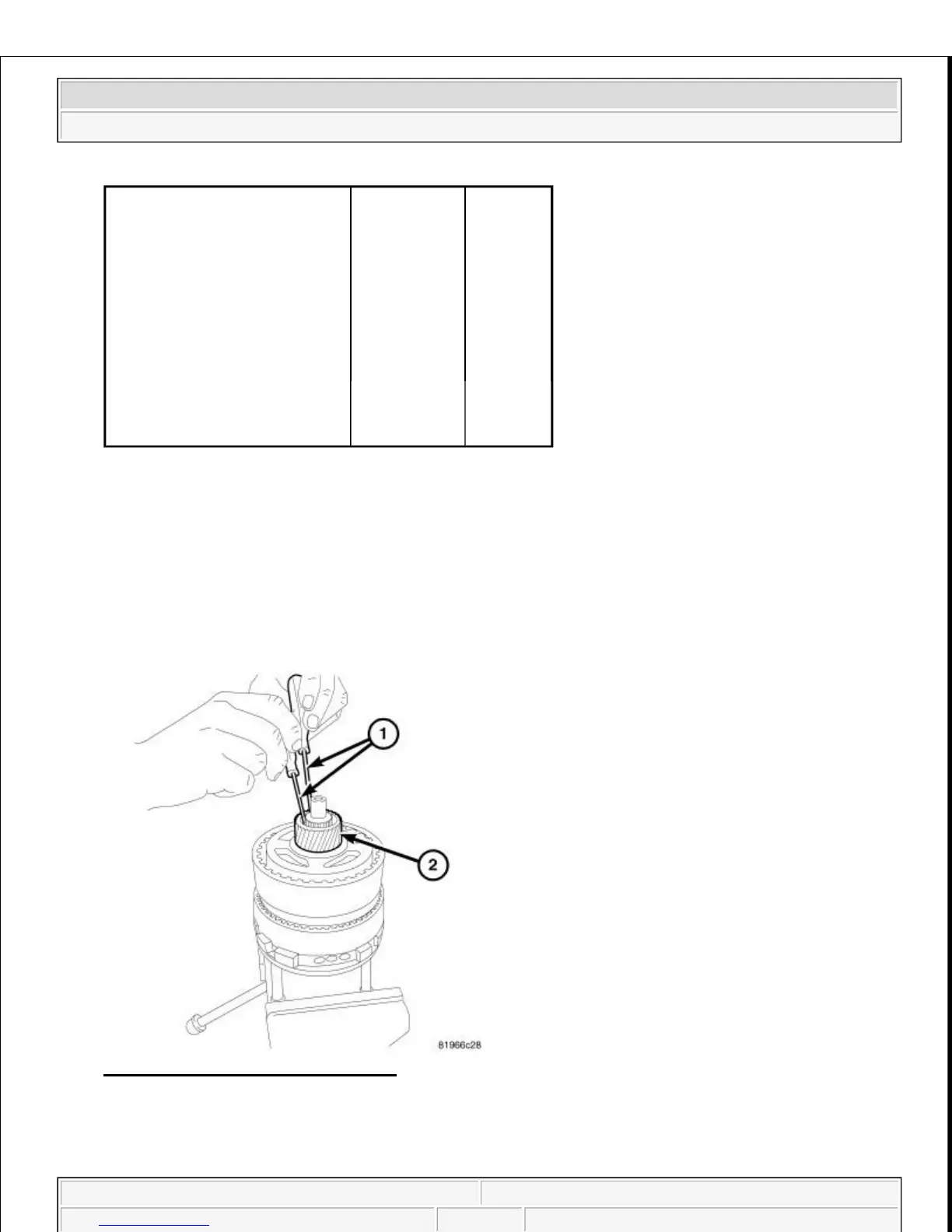

Fig. 366: Clip At Transfer Shaft-Out
Courtesy of CHRYSLER LLC
10. Usin
g
two small picks, remove retainin
g
clip from transfer/underdrive shaft
1 - NEEDLE BEARING 5 -
PLANETARY
CARRIER
9 - #2
NEEDLE
BEARING
2 - SUN GEAR
6 - #2 SNAP
RING
10 -
NEEDLE
BEARING
3 - HELICAL SHIM (SELECT)
7 - #1
NEEDLE
BEARING
11 -
OUTPUT
HUB
4 - #1 SNAP RING 8 -
ANNULUS
GEAR
-
