Chrysler 62TE - Press down on UD Clutch Pack & Zero Dial Indicator

Fi
g
. 340: Set Up Dial Indicator To Measure UD Clutch Clearance
Courtesy of CHRYSLER LLC
22. Set up dial indicator (1) on the UD clutch pack (2).

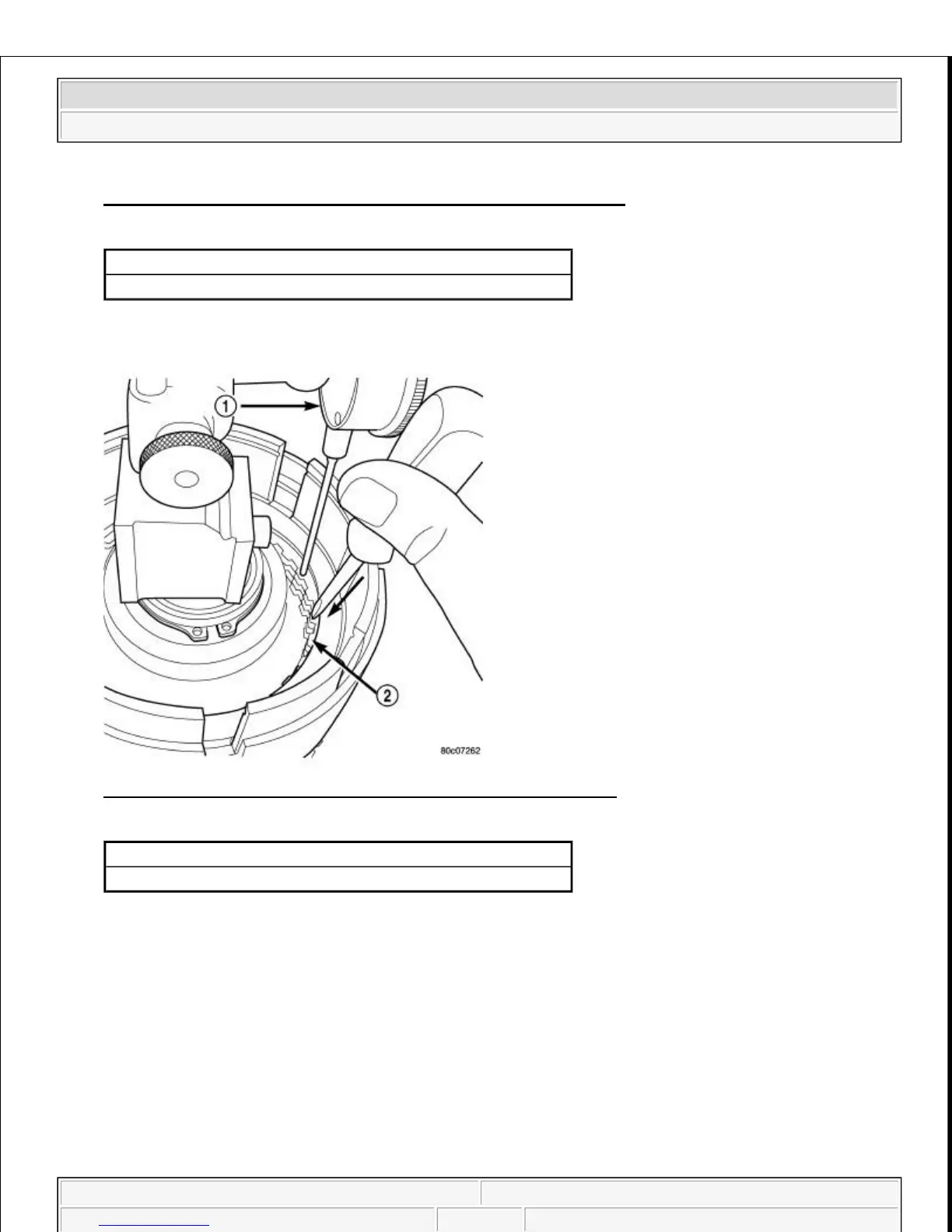

Fig. 341: Press Down On UD Clutch Pack & Zero Dial Indicator
Courtesy of CHRYSLER LLC
23. Using moderate pressure, press down and hold (near indicator) the UD clutch pack (2) with screwdriver
or suitable tool and zero dial the indicator. When releasing pressure on clutch pack, indicator reading
should advance (0.005-0.010 in.).
24. Apply 30 psi (206 kPa) to the underdrive hose on Input Clutch Pressure Fixture 8391 and measure UD
clutch clearance. Measure and record UD clutch pack measurement in four places, 90° apart.
25. Take average of four measurements and compare with UD clutch pack (2) clearance specification.
Underdrive clutch pack clearance must be 0.91-1.47 mm (0.036 - 0.058 in.).
1 - DIAL INDICATOR
2 - UNDERDRIVE CLUTCH
1 - DIAL INDICATOR
2 - UNDERDRIVE CLUTCH
CAUTION: Do not apply more than 30 psi (206 kPa) to the underdrive clutch
pack.
