Chrysler 62TE - Accumulators; Measuring Input Shaft End Play Using End Play Set 8266

Fi
g
. 50: Accumulators
Courtesy of CHRYSLER LLC
18. Remove all six accumulators (1, 2, 3, 5, 6 and 7) from case along with the accumulator return springs.
19. Remove the 2/4 clutch oil supply seal (4) from the case.
20. Remove the manual lever, TRS and seal. See Transmission and Transfer Case/Automatic -
62TE/SENSOR, Transmission Range - Removal.

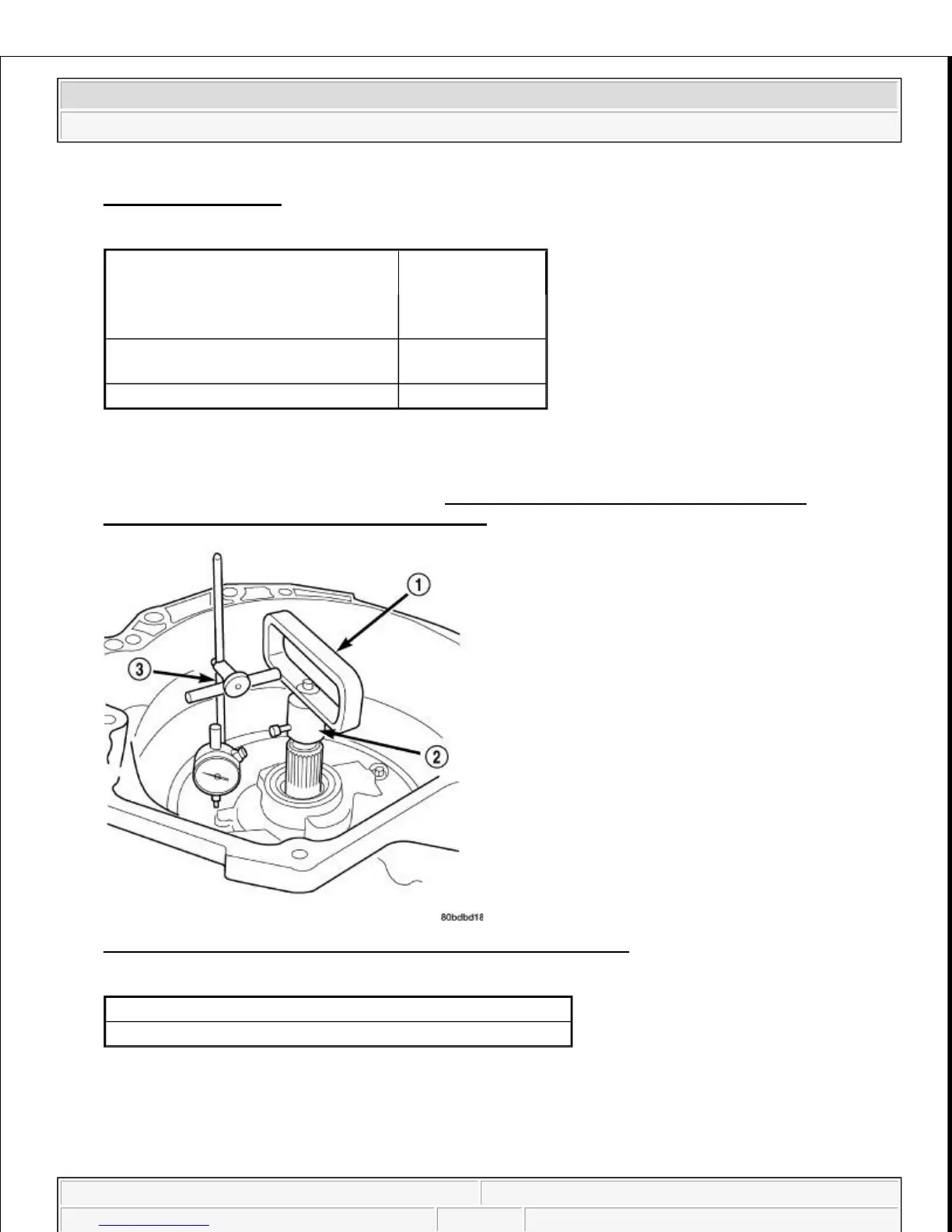

Fig. 51: Measuring Input Shaft End Play Using End Play Set 8266
Courtesy of CHRYSLER LLC
21. Measure input shaft end play. Place transaxle so input shaft is vertical. Set up end play fixtures 8266A (1,
2) and dial indicator (3). Input shaft end play should be within 0.13-0.64 mm (0.005-0.025 in.) Record
indicator readin
g
for reference upon reassembl
y
.
1 - UD ACCUMULATOR 5 - LC
ACCUMULATOR
2 - 2/4 ACCUMULATOR 6 - DC
ACCUMULATOR
3 - LR ACCUMULATOR
7 - OD
ACCUMULATOR
4 - 2/4 CLUTCH OIL SUPPLY SEAL -
1 - END PLAY FIXTURES 8266A
2 - DIAL INDICATOR C-3339A
