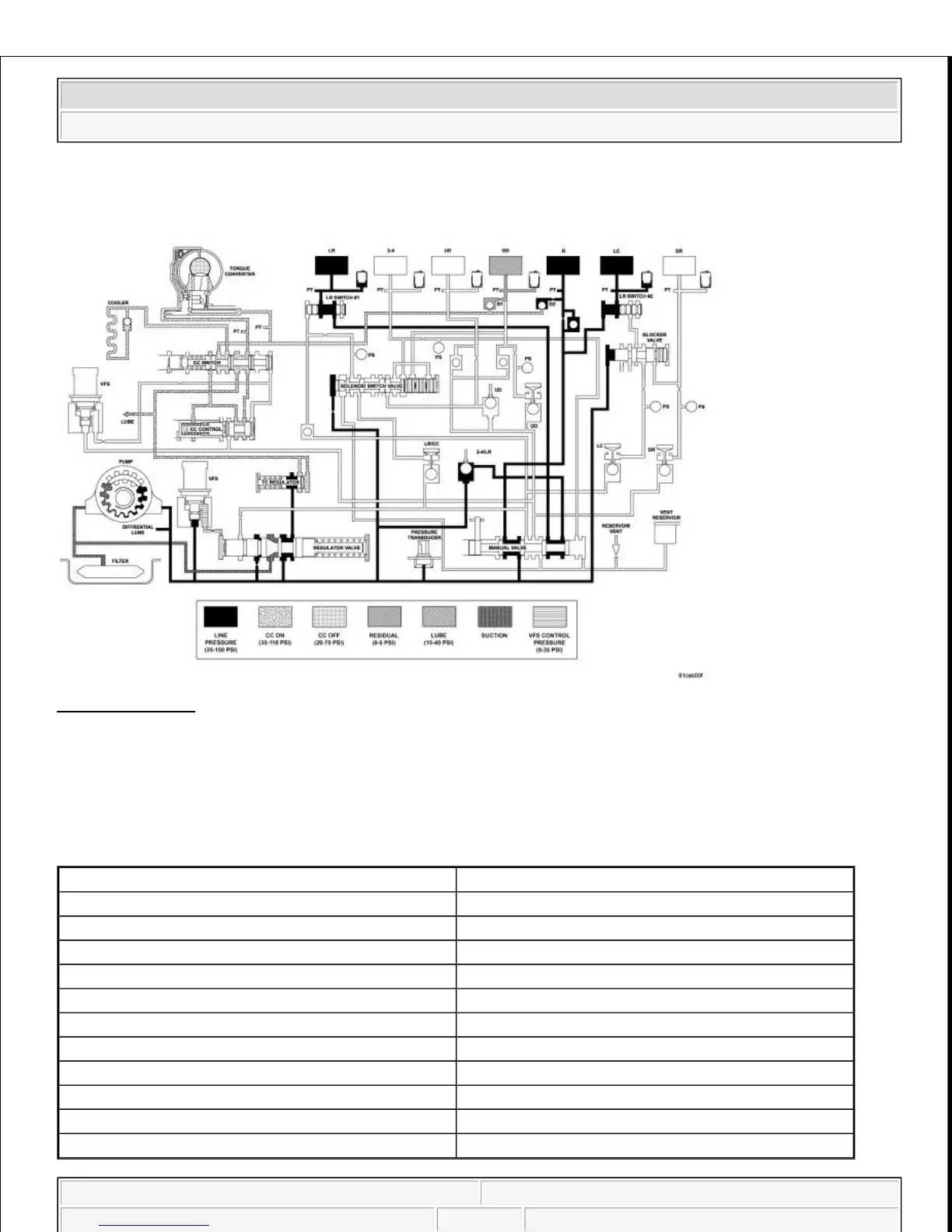

Fig. 232: Reverse
Courtesy of CHRYSLER LLC
SPECIFICATIONS
SPECIFICATIONS
SPECIFICATIONS
DESCRIPTION SPECIFICATION
Output Shaft Gear Drag Torque 3 to 8 in. lbs.
Low/Reverse Clutch Pack Clearance 0.89 - 1.47 mm (0.035 -0.058 in.)
Reverse Clutch (Select Snap Ring) 0.76 - 1.245 mm (0.030 - 0.049 in.)
Overdrive Clutch (No Selection) 0.491 - 2.345 mm (0.019 - .092 in.)
Underdrive Clutch (Select Pressure Plate) 0.91 - 1.47 mm (0.036 - 0.058 in.)
2/4 Clutch Clearance 0.76 - 2.64 mm (0.030 - 0.104 in.)
Input Shaft End Play 0.005 to 0.025 inch
Final Drive Remote Pinion Drag Torque 2 to 8 in-lbs (drag)
Differential Turning Torque 10 to 20 in-lbs (drag)
Low Clutch Clearance 0.48 - 0.76 mm (.019 - .030 in.)
Direct Clutch Pack Clearance 0.95 - 1.41 (0.037 - 0.056 in)
2009 Chrysler Town & Country LX
