Chrysler 62TE - Underdrive Shaft Assembly; No. 3 Thrust Washer

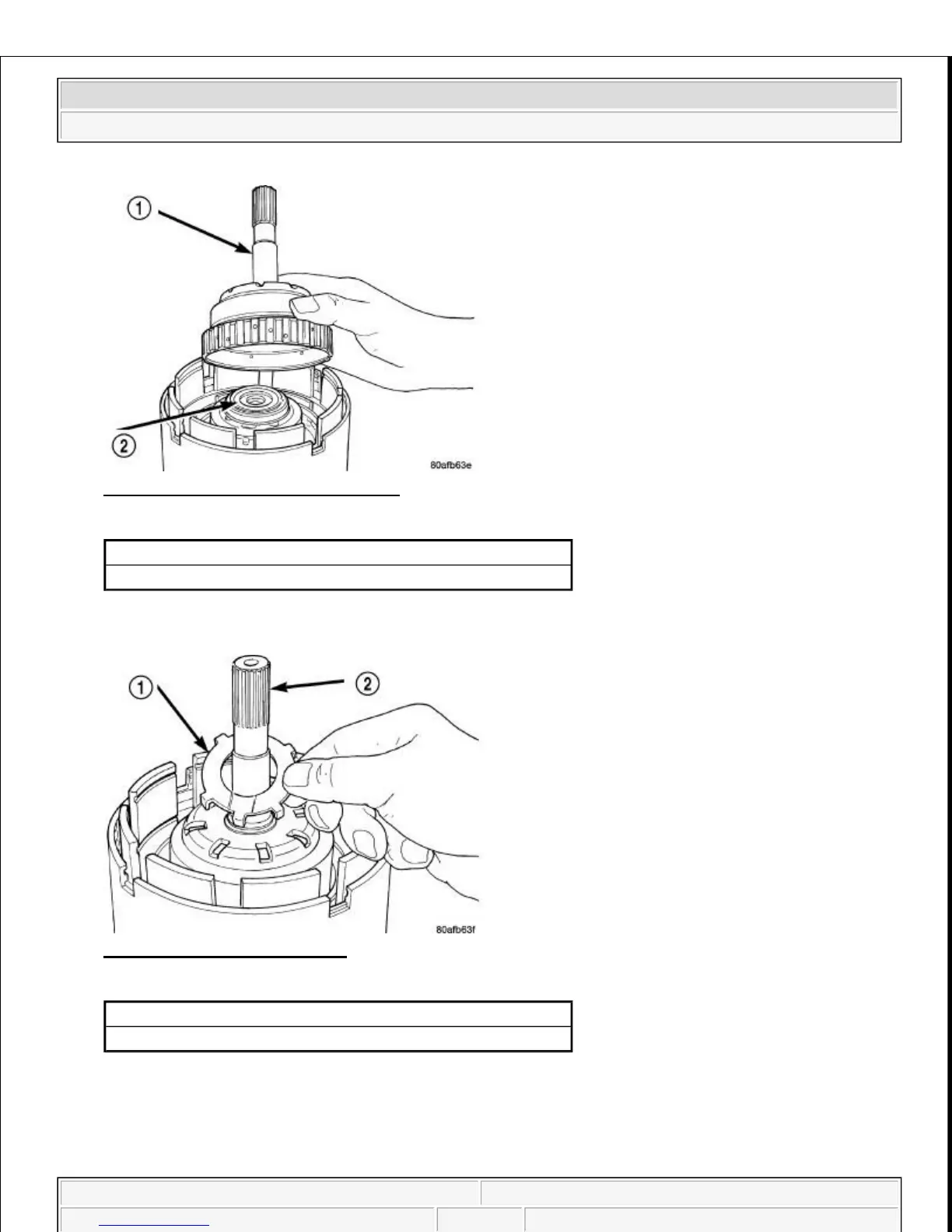

Fig. 354: Underdrive Shaft Assembly
Courtesy of CHRYSLER LLC
46. Install the underdrive shaft assembly (1).
Fig. 355: No. 3 Thrust Washer
Courtesy of CHRYSLER LLC
47. Install the number three thrust washer (1) to the underdrive shaft assembly (2). Be sure five tabs are
seated properly.
1 - UNDERDRIVE SHAFT ASSEMBLY
2 - #2 NEEDLE BEARING
1 - #3 THRUST WASHER (NOTE 5 TABS)
2 - UNDERDRIVE SHAFT ASSEMBLY
