Chrysler 62TE - Underdrive Clutch Assembly

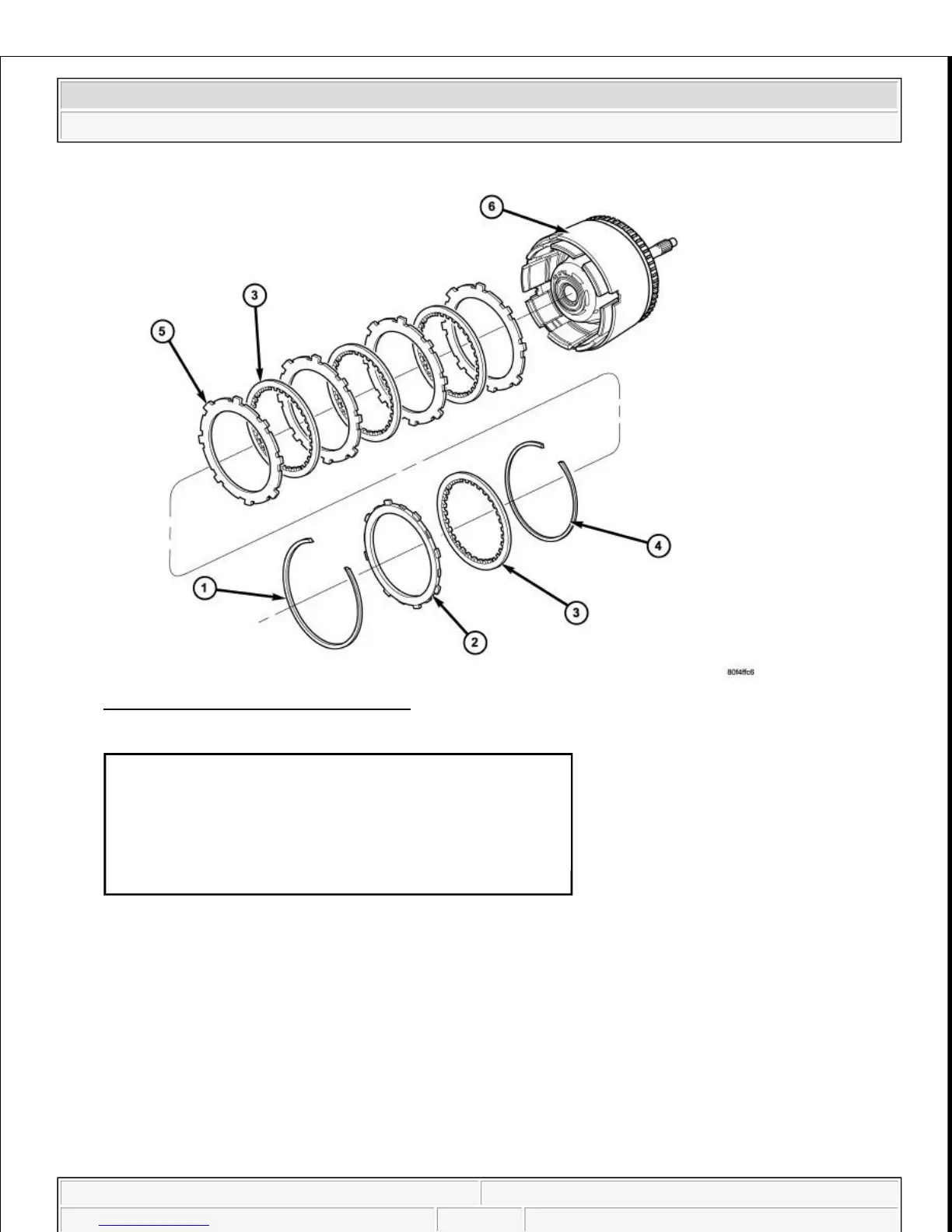

Fig. 309: Underdrive Clutch Assembly
Courtesy of CHRYSLER LLC
11. Remove the OD/UD reaction plate tapered snap ring (1), clutch plate (5), and first clutch disc (3).
12. Remove the UD clutch flat snap ring (4) and rest of the input clutch assembly (6). Tag clutch pack for
assembly identification.
1 - SNAP RING (TAPERED)
2 - OD/UD REACTION PLATE
3 - CLUTCH DISC
4 - SNAP RING (FLAT)
5 - CLUTCH PLATE
6 - INPUT CLUTCH ASSEMBLY
