Chrysler 62TE - Pinion Side Bearing Cone; Ring Gear Side Bearing Cone

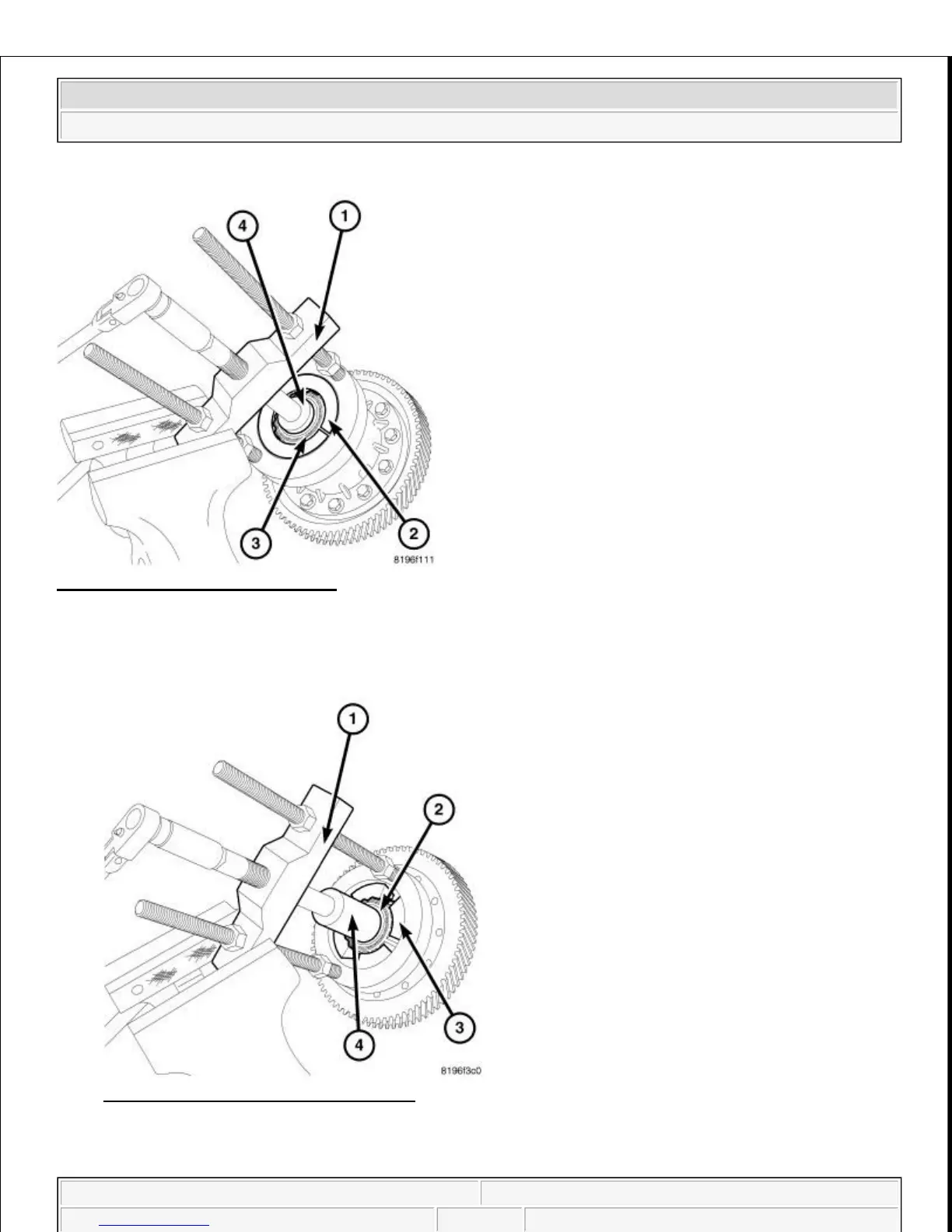

Fig. 416: Pinion Side Bearing Cone
Courtesy of CHRYSLER LLC
1. Use Puller Set C-293-PA (1), Adaptors 9613 (2) and press plug 9678 remove the pinion side bearing cone
(3).
Fig. 417: Ring Gear Side Bearing Cone
Courtesy of CHRYSLER LLC
2. Install Puller Set C-293-PA (1), C-293-42 Adaptors (3), and Press Plug 9678 to remove the ring gear side
2009 Chrysler Town & Country LX
2009 AUTOMATIC TRANSMISSION 62TE - Service Information - Grand Caravan, Town & Country
