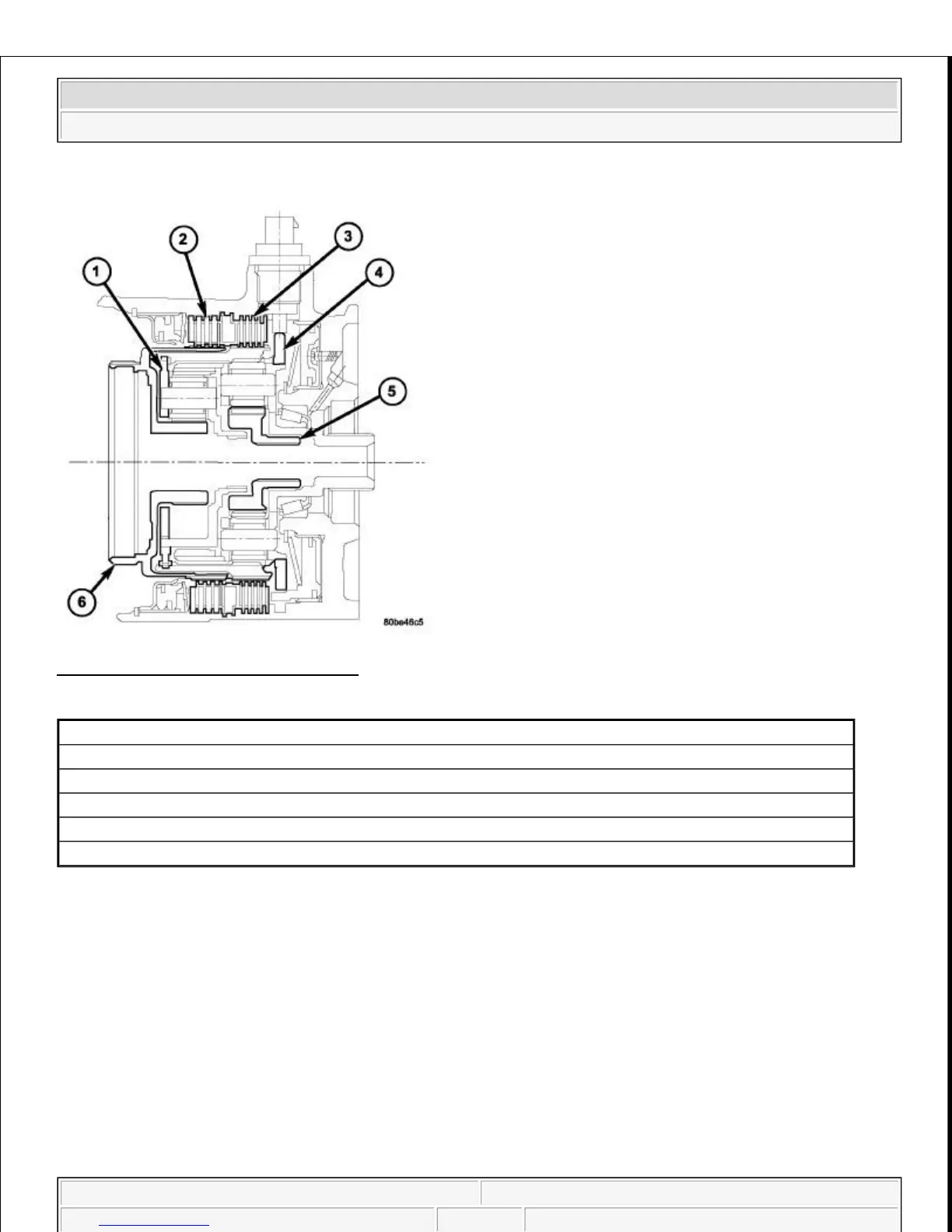

Fig. 445: 2/4 & Low/Reverse Clutches
Courtesy of CHRYSLER LLC
Two hydraulically applied multi-disc clutches are used to hold planetary geartrain components (1, 4) stationary
while the input clutches drive others. The 2/4 (2) and Low/Reverse (3) clutches are considered holding clutches
and are contained at the rear of the transaxle case.
OPERATION
OPERATION
2/4 CLUTCH
The 2/4 clutch is hydraulically applied in second and fourth gears by pressurized fluid against the 2/4 clutch
iston. When the 2/4 clutch is applied, the front sun gear assembly is held or grounded to the transaxle case.
LOW/REVERSE CLUTCH
1 - FRONT PLANET CARRIER/REAR ANNULUS
2 - 2/4 CLUTCH
3 - L/R CLUTCH
4 - REAR PLANET CARRIER/FRONT ANNULUS
5 - REAR SUN GEAR
6 - FRONT SUN GEAR ASSEMBLY
