Chrysler 62TE - Measuring Outer Gear-To-Pocket; Measuring Outer Gear-To-Crescent

Fi
g
. 452: Measurin
g
Outer Gear-To-Pocket
Courtesy of CHRYSLER LLC
4. Re-install the gears (2) and check clearances.
5. Measure the clearance between the outer gear and the pump pocket (1). Clearance should be 0.089 - 0.202
mm (0.0035 - 0.0079 in.).

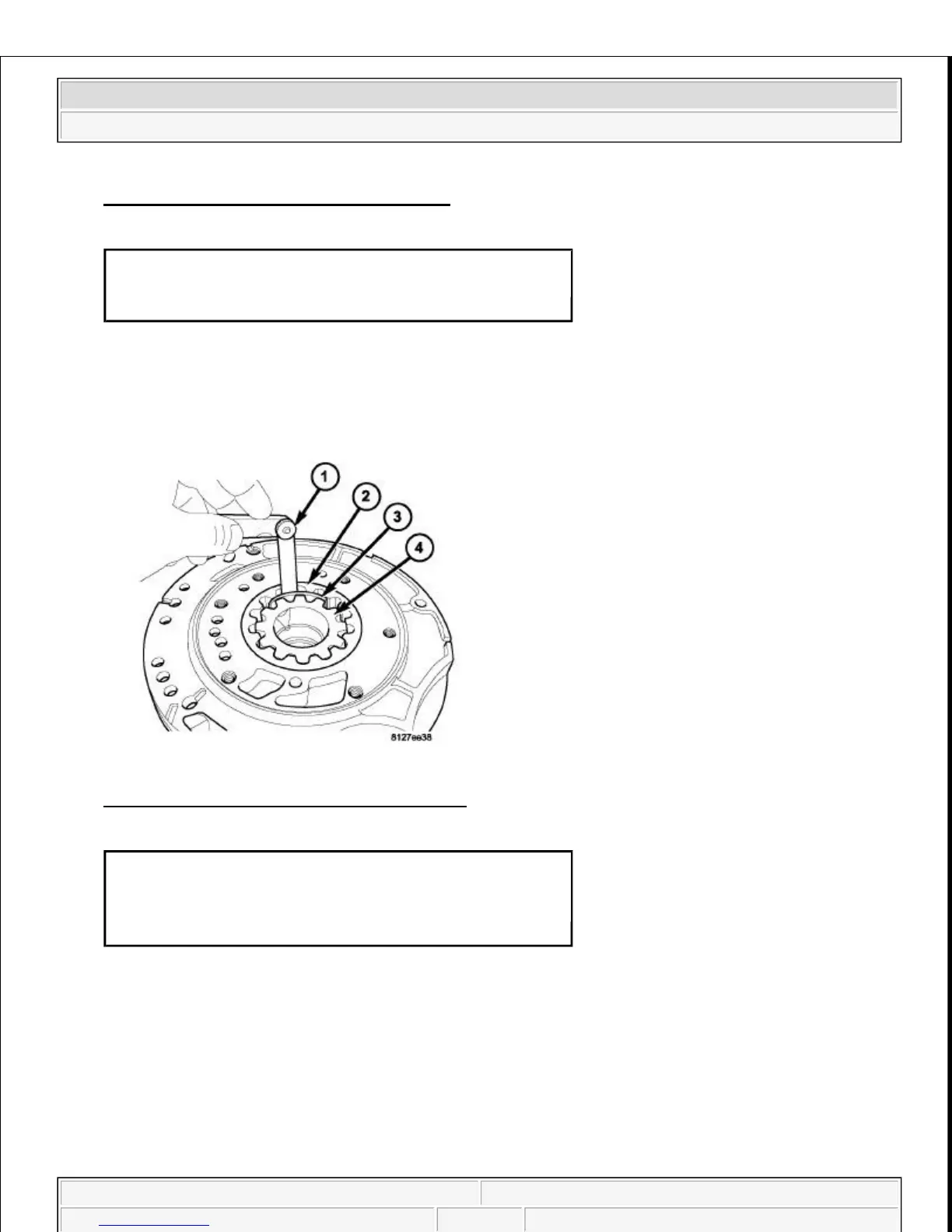

Fig. 453: Measuring Outer Gear-To-Crescent
Courtesy of CHRYSLER LLC
6. Measure clearance between outer gear (2) and crescent (3). Clearance should be 0.060 - 0.298 mm
(0.0023 - 0.0117 in.).
1 - FEELER GAUGE
2 - OUTER GEAR
3 - PUMP BODY
1 - FEELER GAUGE
2 - OUTER GEAR
3 - CRESCENT
4 - INNER GEAR
