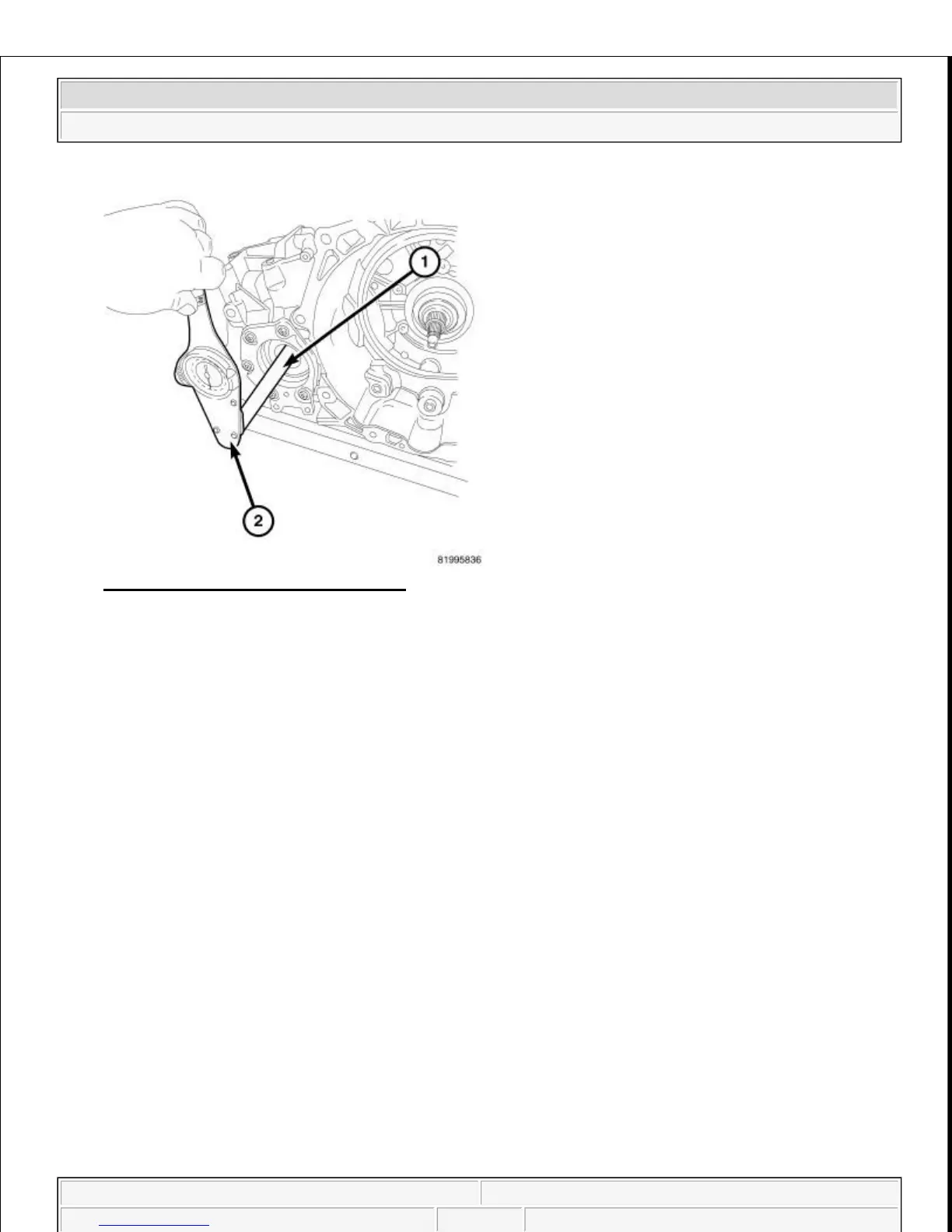

Fig. 160: Differential Turning Torque
Courtesy of CHRYSLER LLC
59. Using the Turning Torque Tool 9735 (1) and an inch pound torque wrench (2) check the differential
turning torque, it should be 10 to 22 in-lbs (drag). If turning torque is more than 22 in-lbs (drag) decrease
shim size behind the end cover and recheck. If turning torque is less than 10 in-lbs (drag) increase shim
size.
60. After proper turning torque is achieved for the differential remove the differential from the case and set
aside keepin
the correct shim with the differential.
NOTE: Remote pinion gear must NOT be installed while checking turning torque.
2009 Chrysler Town & Country LX
