1. Install the valves into valve body.

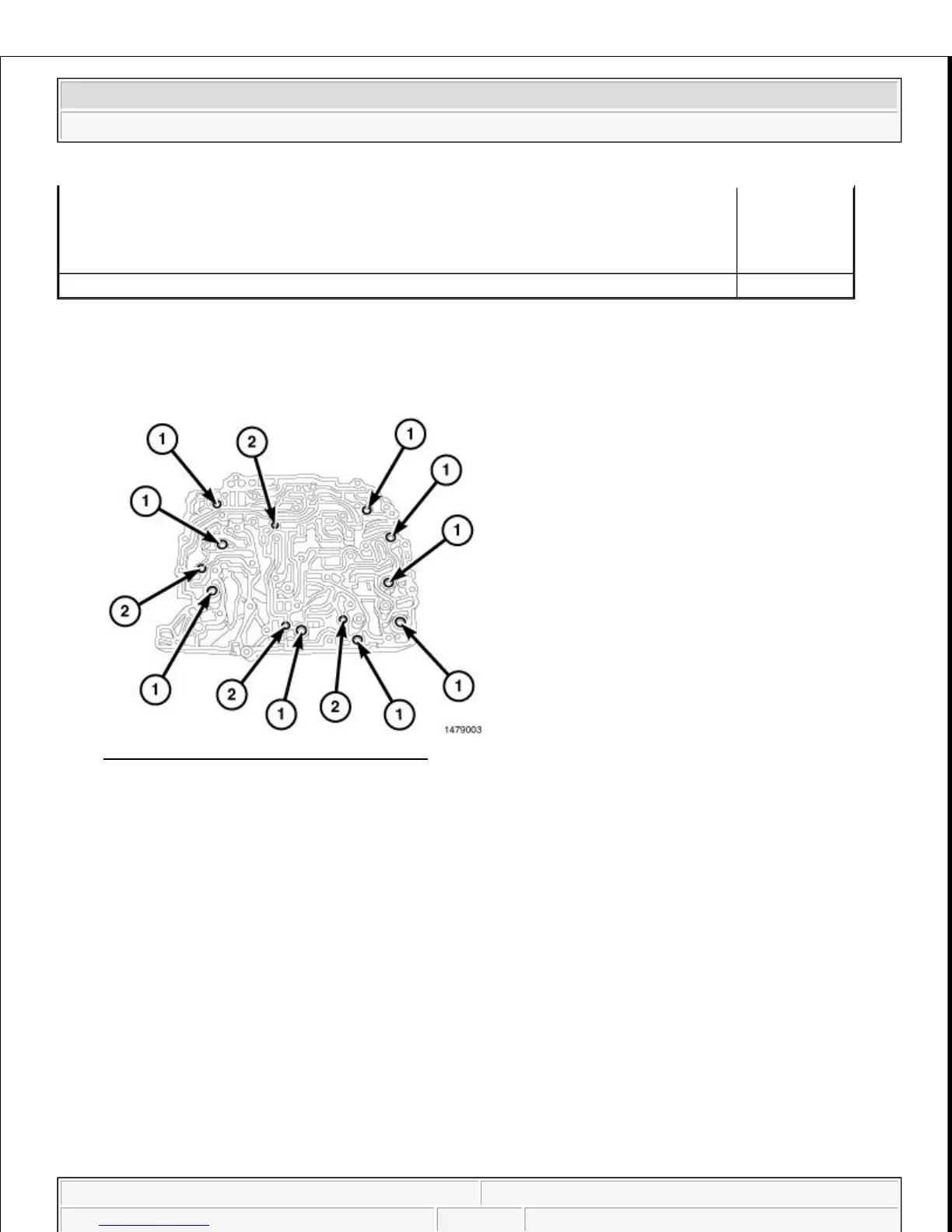

Fig. 601: Tapered Bore And Check Balls
Courtesy of CHRYSLER LLC
2. Install the check balls (2) if equipped.
4 - DC SWITCH VALVE
CONVERTER
CLUTCH
CONTROL
VALVE
5 - LC SWITCH VALVE -
NOTE: Use exploded view in illustration for assembly.
NOTE: The valve body contains some check balls that are pressed into a tapered
bore (1). These check balls are not removable
