Chrysler 62TE - Torque Stirrup Strap Bolts; Bend Tabs on Strap up against Flats of Bolts

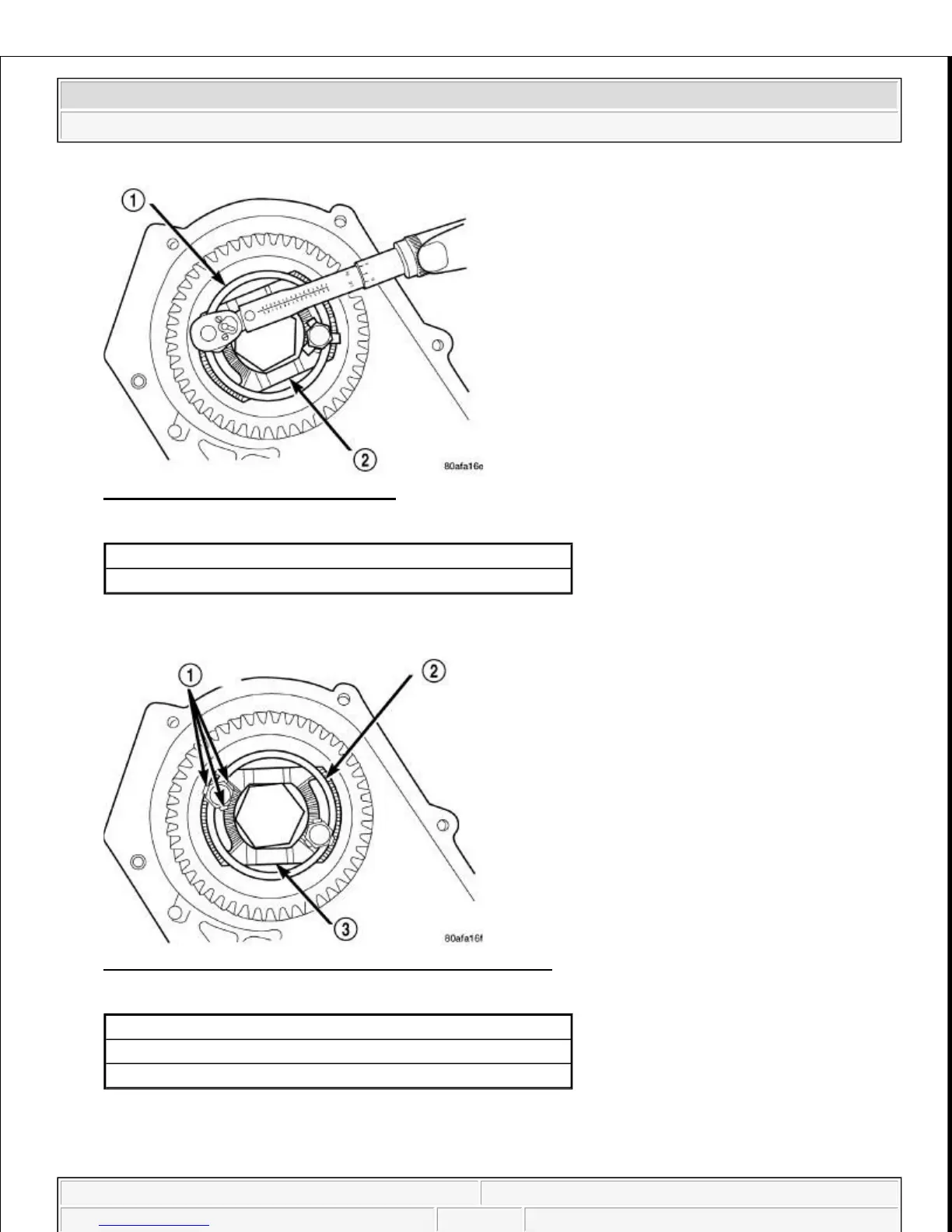

Fig. 154: Torque Stirrup Strap Bolts
Courtesy of CHRYSLER LLC
52. Tighten stirrup strap bolts to 23 N.m (200 in. lbs.).
Fig. 155: Bend Tabs On Strap Up Against Flats Of Bolts
Courtesy of CHRYSLER LLC
53. Bend tabs (1) on strap up against flats of bolts.
1 - RETAINING STRAP
2 - STIRRUP
1 - RETAINING STRAP TABS
2 - RETAINING STRAP
3 - STIRRUP
