116. Install the fluid filter oil pan, use a bead of MOPAR® ATF RTV (MS-GF41).
117. Install the fluid filter oil pan bolts and tighten to 6 N.m (53 in. lbs.).

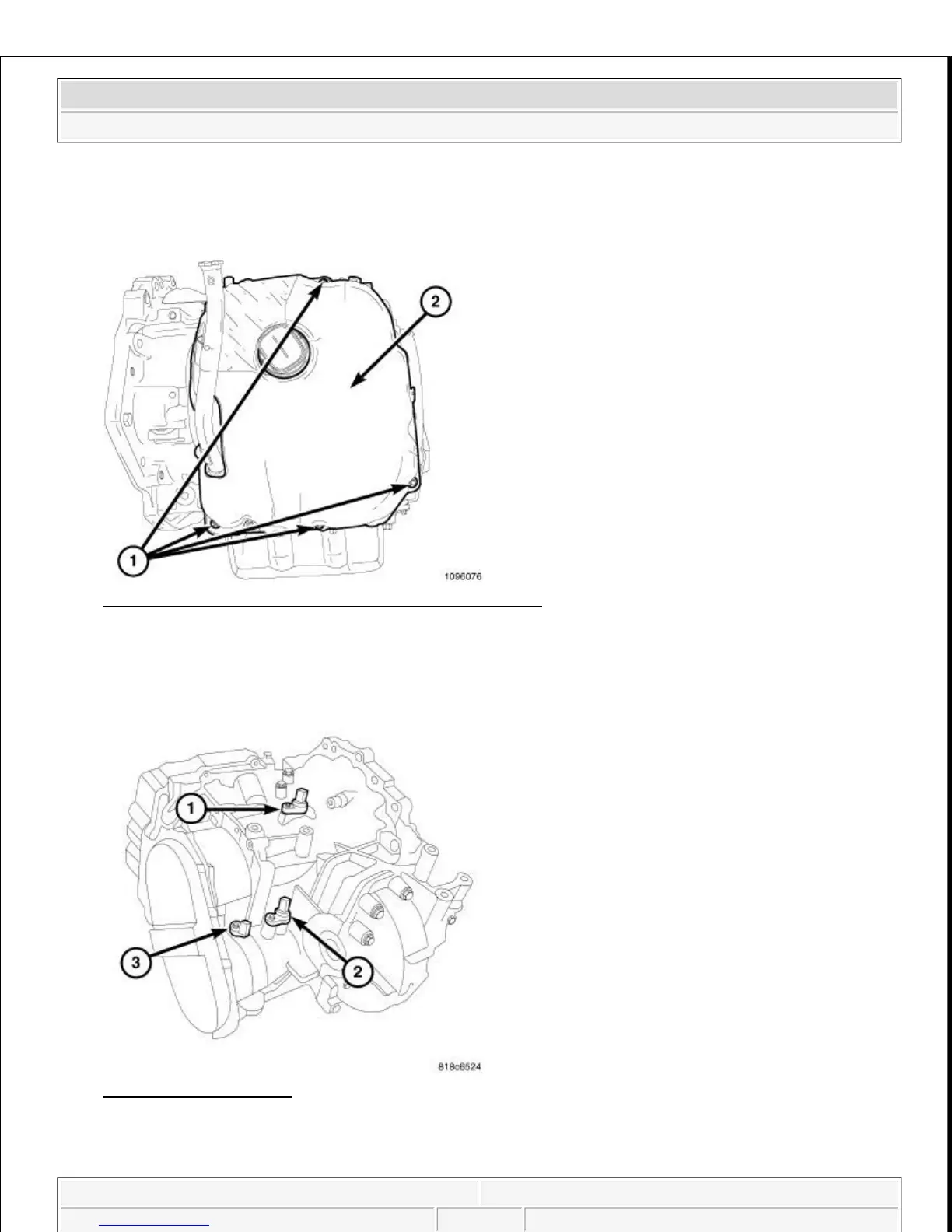

Fig. 193: Fasteners And Front Sound Dampener Cover
Courtesy of CHRYSLER LLC
118. If equipped install the Front Sound Dampener Cover (2) and the fasteners (1).
Fig. 194: Speed Sensors
Courtesy of CHRYSLER LLC
119. Install the speed sensors (1, 2 and 3) and ti
hten bolts to 12 N.m (105 in. lbs.).
2009 Chrysler Town & Country LX
2009 AUTOMATIC TRANSMISSION 62TE - Service Information - Grand Caravan, Town & Country
steve
Monday, May 23, 2011 1:26:08 PM Page 121 © 2006 Mitchell Repair Information Company, LLC.
