22. Refer to the illustration as necessary when performing the above steps
ASSEMBLY
ASSEMBLY

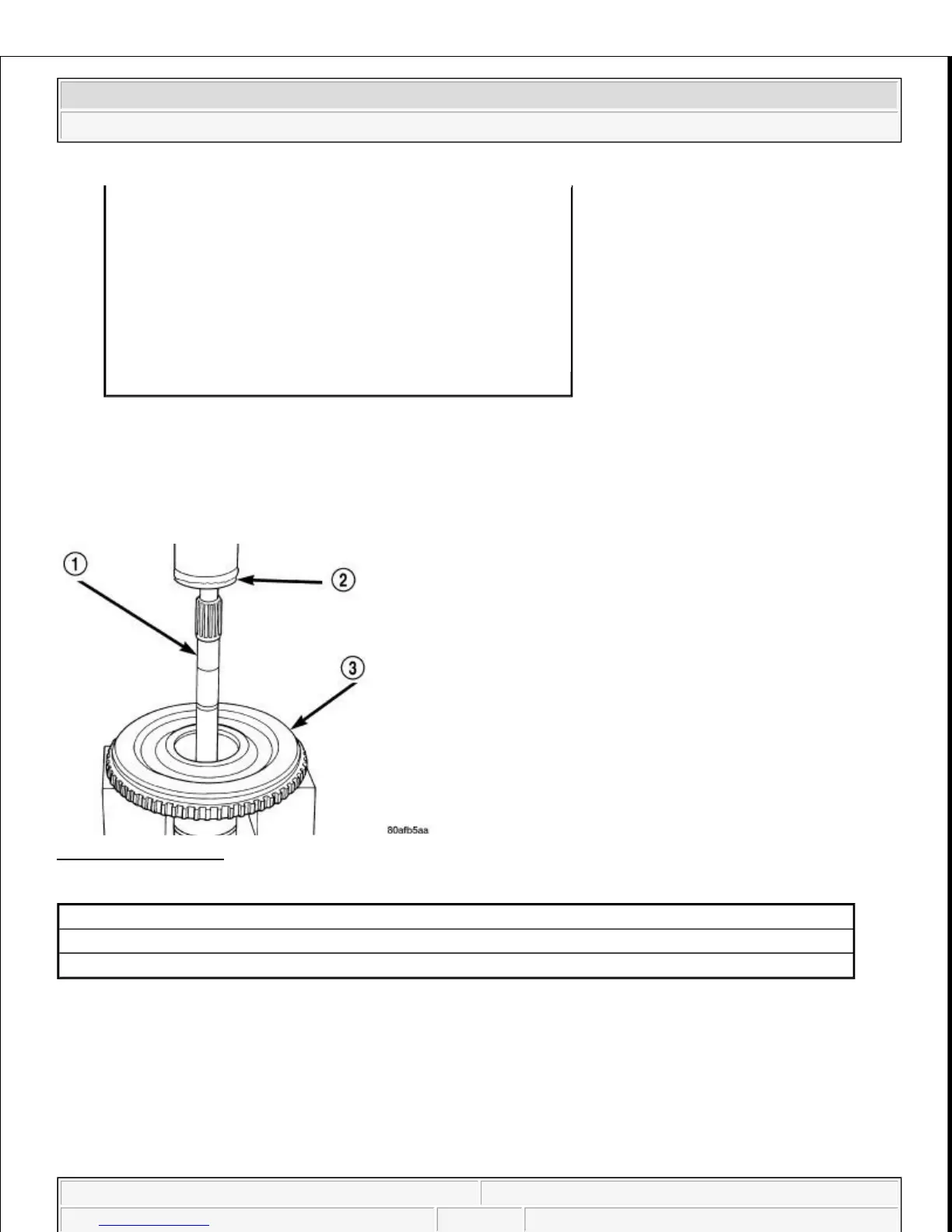

Fig. 319: Input Shaft
Courtesy of CHRYSLER LLC
Use petrolatum on all seals to ease assembly of components.
1. Usin
an arbor press (2), install input shaft (1) to input shaft hub (3).
4 - SEAL, OUTER
5 - SEAL, INNER
6 - OD/REVERSE PISTON
7 - SEAL, INPUT SHAFT
8 - SHAFT, INPUT
9 - HUB
10 - SEAL
11 - SNAP RING
12 - BELLEVILLE SPRING
1 - INPUT SHAFT
2 - ARBOR PRESS
3 - INPUT SHAFT HUB ASSEMBLY
2009 Chrysler Town & Country LX
2009 AUTOMATIC TRANSMISSION 62TE - Service Information - Grand Caravan, Town & Country
